CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Engine, Engine Housing Parts Diagram

Chainsaw

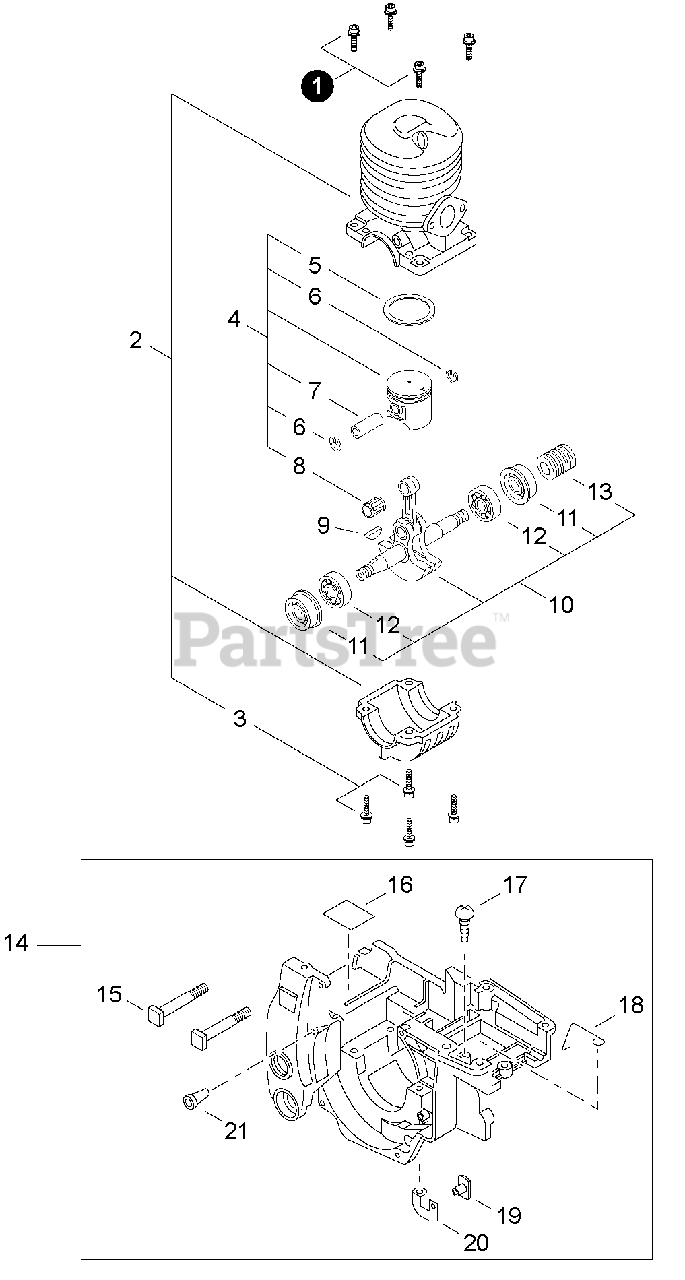

Engine, Engine Housing Parts Diagram

  • Title

1

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

2

Echo P021004131

CRANKCASE KIT

$246.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10000059531

PISTON KIT

$85.99

$

Usually ships in 2-4 days

0

5

Echo 10001137330

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

6

Echo 10001503931

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

7

Echo 10001335430

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

8

Echo 10001235430

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

9

Echo 10014239130

KEY

$2.99

$

In Stock, only 2 left!

0

10

Echo P021007242

CRANKSHAFT ASSY

$197.99

$

Usually ships in 2-4 days

0

11

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, Qty 19

0

12

Echo 90088836201

BEARING, BALL - 6201
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

13

Echo V652000021

GEAR - WORM

$14.99

$

Usually ships in 2-4 days

0

14

Echo P021014303

ENGINE COVER ASSY

$

$

Currently unavailable

15

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 2 left!

0

16

Echo 10152035430

DEFLECTOR, HEAT

$3.49

$

Usually ships in 2-4 days

0

17

Echo 90025304008

SCREW - 4X8

$0.99

$

In Stock, only 2 left!

0

18

Echo 60641660632

WIRE
(Superseded to Discontinued)

$

$

Not available

19

Echo 13002060630

NUT - 5

$2.49

$

Usually ships in 2-4 days

0

20

Echo 16201160630

PLATE - GROUND

$2.49

$

Usually ships in 2-4 days

0

21

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0
