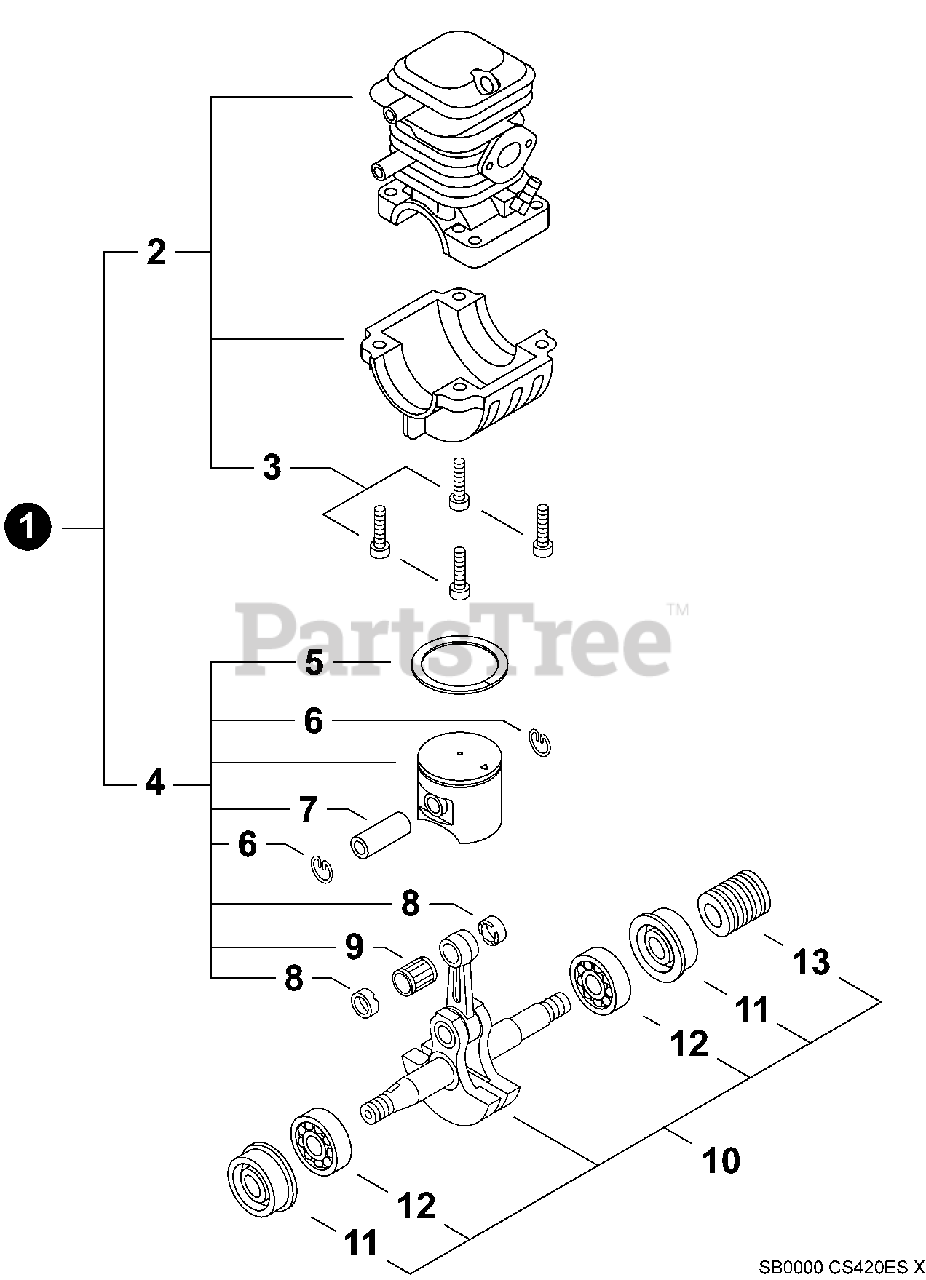

CS-420 ES - Echo Chainsaw (SN: 37027771 - 37999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

Echo P021038980

REPAIR KIT, ENGINE
(Superseded to P021038981)

Note: Includes items 2-9

$160.99

$

Usually ships in 2-4 days

0

2

Echo P021017360

CRANKCASE KIT

Note: Includes item 3

$136.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

4

Echo P021036520

PISTON KIT

Note: Includes items 5-9

$59.99

$

In Stock, only 1 left!

0

5

Echo A101000160

RING, PISTON

$6.49

$

In Stock, only 2 left!

0

6

Echo 10001503931

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

7

Echo V607000000

PIN, PISTON 9×6×33.8

$5.99

$

Usually ships in 2-4 days

0

8

Echo 10001453630

WASHER, THRUST 9×12×15×3

$5.99

$

Usually ships in 2-4 days

0

9

Echo 10001216131

BEARING, NEEDLE 9

$10.99

$

Usually ships in 2-4 days

0

10

Echo P021013621

CRANKSHAFT ASSY

Note: Includes items 11-13

$189.99

$

Usually ships in 2-4 days

0

11

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

12

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

13

Echo V652000030

GEAR, WORM

$11.99

$

Usually ships in 2-4 days

0
