CS-420 ES - Echo Chainsaw (SN: 20001001 - 20999999) Engine Cover Parts Diagram

Chainsaw

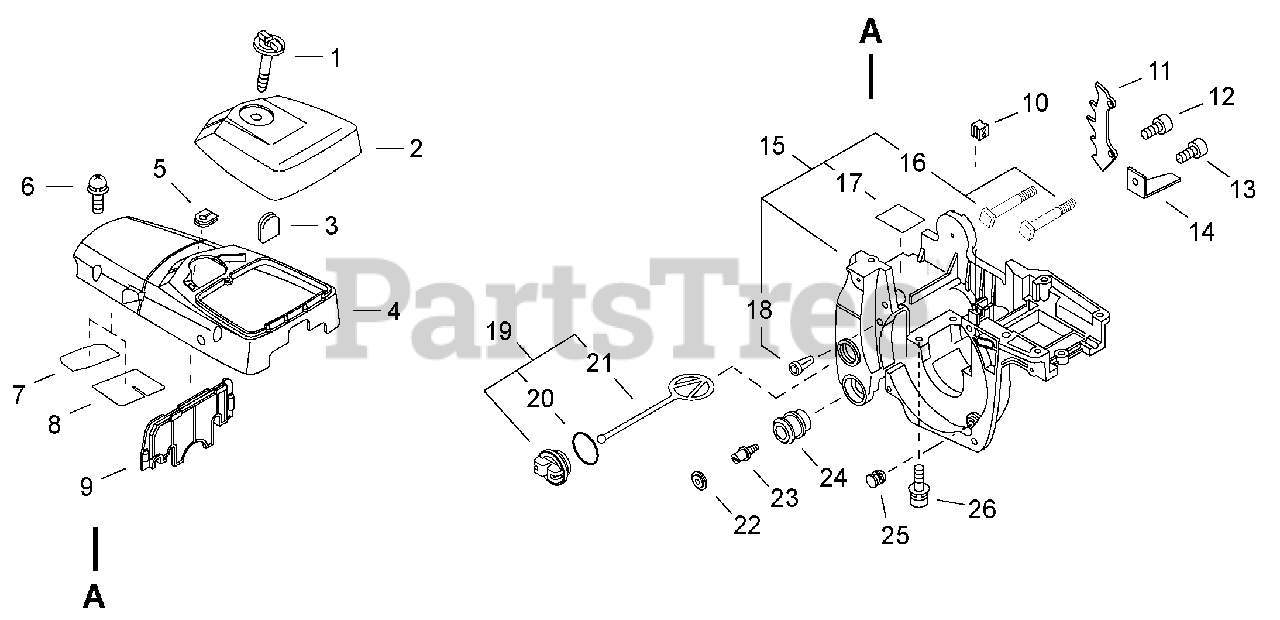

Engine Cover Parts Diagram

  • Title

1

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, only 2 left!

0

2

Echo A232000023

COVER, AIR FILTER
(Superseded to A232000024)

$10.99

$

Usually ships in 2-4 days

0

3

Echo 13033832430

PLUG

$1.49

$

In Stock, Qty 15

0

4

Echo A160002290

COVER, ENGINE

$34.99

$

Usually ships in 2-4 days

0

5

Echo V135000010

GROMMET

$1.99

$

Usually ships in 2-4 days

0

6

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

7

Echo V341000060

DEFLECTOR, HEAT

$3.99

$

Usually ships in 2-4 days

0

8

Echo V341000070

DEFLECTOR, HEAT

$4.99

$

Usually ships in 2-4 days

0

9

Echo A209000000

PLATE, INSULATOR

$5.99

$

Usually ships in 2-4 days

0

10

Echo 15011404920

GROMMET

$1.49

$

In Stock, only 1 left!

0

11

Echo C304000010

SPIKE

$24.99

$

In Stock, only 1 left!

0

12

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

13

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, Qty 6

0

14

Echo C310000000

CATCHER, CHAIN

$1.99

$

In Stock, only 3 left!

0

15

Echo P021009856

ENGINE COVER ASSY
(Superseded to P021009857)

$78.99

$

Usually ships in 2-4 days

0

16

Echo 43301119831

STUD, GUIDE BAR

$2.99

$

In Stock, only 1 left!

0

17

Echo V341000050

DEFLECTOR, HEAT

$2.49

$

Usually ships in 2-4 days

0

18

Echo 43611413930

VENT, TANK

$6.49

$

Usually ships in 2-4 days

0

19

Echo P021007630

CAP ASSY - BLACK

$10.99

$

In Stock, Qty 11

0

20

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

21

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

22

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

23

Echo 10091533930

SCREW

$2.49

$

In Stock, Qty 5

0

24

Echo 10091060030

CUSHION

$21.99

$

In Stock, only 1 left!

0

25

Echo V420001250

CUSHION

$2.99

$

In Stock, only 1 left!

0

26

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0
