CS-420 ES - Echo Chainsaw (SN: 20001001 - 20999999) Clutch, Auto Oiler Parts Diagram

Chainsaw

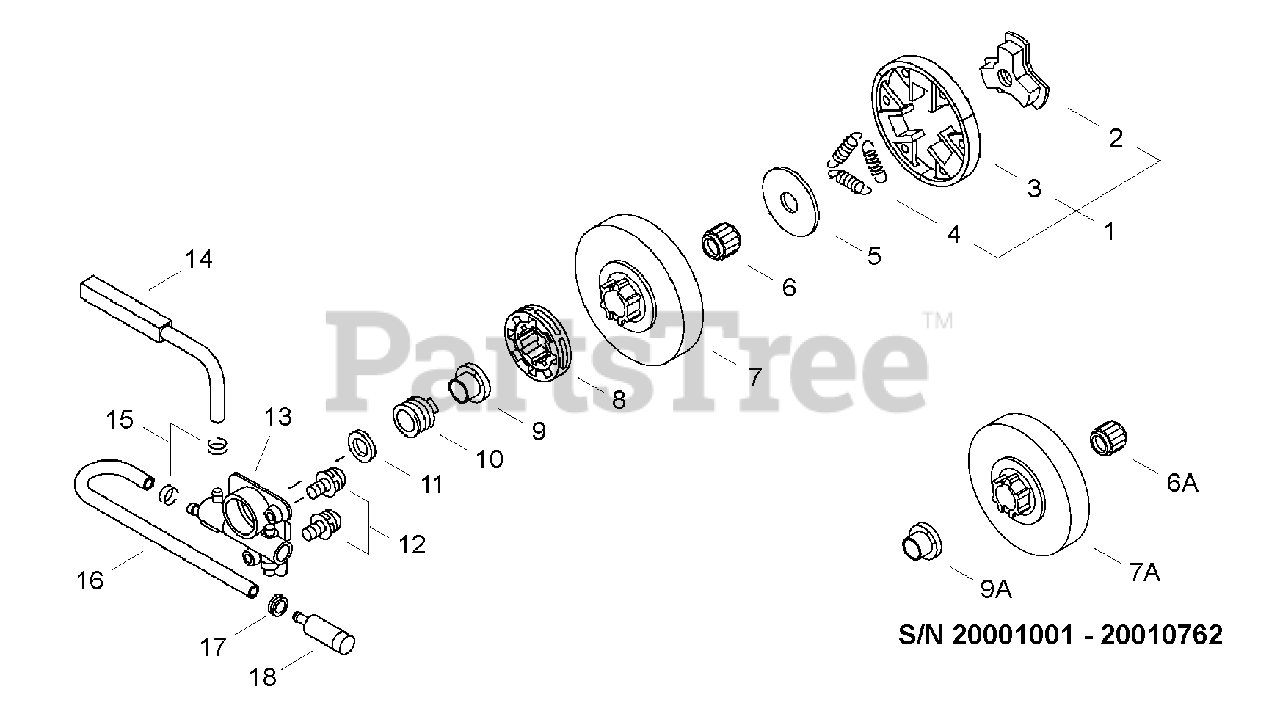

Clutch, Auto Oiler Parts Diagram

  • Title

1

Echo A056000180

CLUTCH ASSY
(Superseded to A056000181)

$47.99

$

In Stock, Qty 16

0

2

Echo A552000070

HUB, CLUTCH

$13.99

$

Usually ships in 2-4 days

0

3

Echo P021007050

CLUTCH SHOE SET
(Superseded to P021007051)

$34.99

$

Usually ships in 2-4 days

0

4

Echo V451000500

SPRING, CLUTCH

$3.49

$

In Stock, Qty 15

0

5

Echo 17501939430

PLATE, CLUTCH

$8.49

$

In Stock, Qty 6

0

6

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 7

0

7

Echo A556001270

DRUM, CLUTCH

$64.99

$

Usually ships in 2-4 days

0

8

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 13

0

9

Echo V356000352

COLLAR - 10

$2.99

$

In Stock, only 1 left!

0

10

Echo V652000030

GEAR - WORM

$11.99

$

Usually ships in 2-4 days

0

11

Echo V308000030

WASHER - 11

$2.99

$

In Stock, only 2 left!

0

12

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 6

0

13

Echo C022000020

AUTO-OILER ASSY

$57.99

$

In Stock, only 1 left!

0

14

Echo 43721039931

TUBE, OIL OUTLET
(Superseded to 43721039932)

$11.99

$

In Stock, only 1 left!

0

15

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

16

Echo 43721035430

PIPE - OIL
(Superseded to 43721035431)

$5.49

$

In Stock, only 1 left!

0

17

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

18

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 2 left!

0

6A

Echo 17501200831

BEARING, NEEDLE

Note: S/N 20001001 - 20010762

$15.99

$

In Stock, only 3 left!

0

7A

Echo A556000480

DRUM, CLUTCH
(Superseded to A556000481)

Note: S/N 20001001 - 20010762

$34.99

$

In Stock, only 3 left!

0

9A

Echo V356000390

COLLAR - 10

Note: S/N 20001001 - 20010762

$3.49

$

In Stock, only 2 left!

0
