CS-420 ES - Echo Chainsaw (SN: 20001001 - 20999999) Chain Brake Parts Diagram

Chainsaw

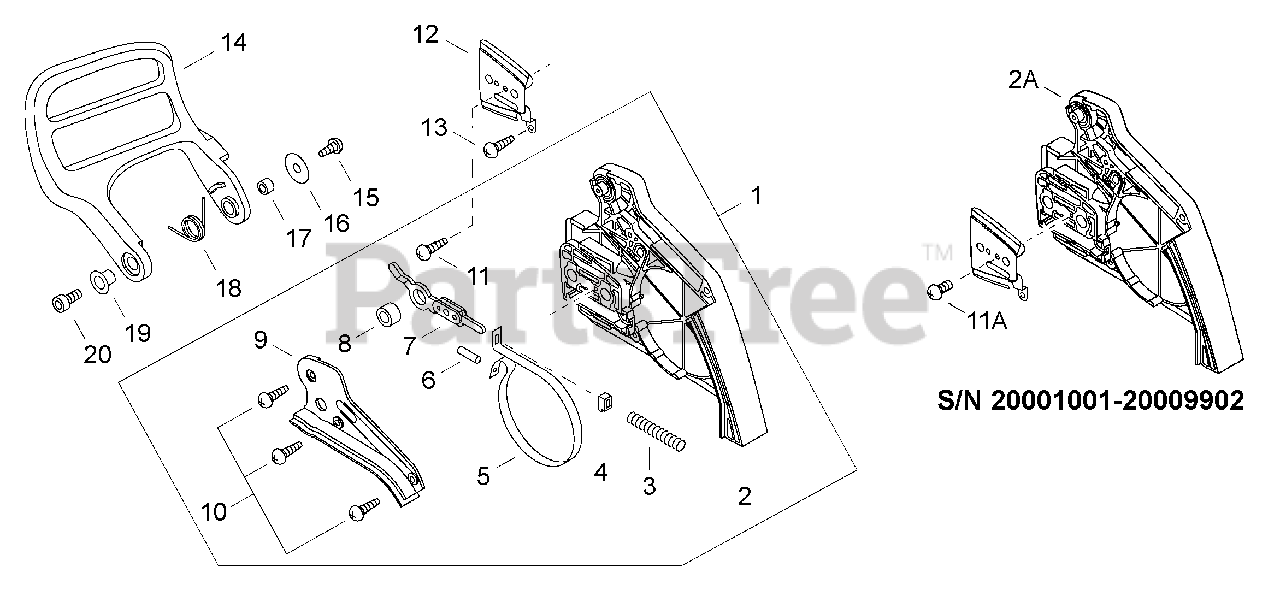

Chain Brake Parts Diagram

  • Title

1

Echo P021017220

CHAIN BRAKE ASSY

$75.99

$

In Stock, Qty 10

0

2

Echo C300000313

GUARD, SPROCKET
(Superseded to C300000790)

$24.99

$

Usually ships in 2-4 days

0

3

Echo V450000070

SPRING

$2.49

$

In Stock, only 1 left!

0

4

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

5

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, Qty 5

0

6

Echo 9305030098

PIN - SPRING

$0.99

$

In Stock, Qty 20+

0

7

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 4 left!

0

8

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

9

Echo C345000211

COVER, BRAKE

$4.49

$

Usually ships in 2-4 days

0

10

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

11

Echo 9132503005

SCREW - 3X5

$0.99

$

In Stock, Qty 20+

0

12

Echo C305000012

PLATE, GUIDE - OUTER

$6.49

$

In Stock, Qty 16

0

13

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

14

Echo C320000480

LEVER, BRAKE

$31.99

$

Usually ships in 2-4 days

0

15

Echo V202000070

SCREW - 4X16

$1.49

$

In Stock, Qty 7

0

16

Echo 17721403930

WASHER

$0.99

$

In Stock, Qty 10

0

17

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 5

0

18

Echo V452000250

SPRING

$1.49

$

In Stock, Qty 13

0

19

Echo V356000300

COLLAR - 10

$1.99

$

In Stock, Qty 20+

0

20

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, Qty 6

0

2A

Echo C300000312

COVER, CLUTCH
(Superseded to P021048060)

Note: S/N 20001001-20009902

$24.99

$

In Stock, Qty 6

0

11A

Echo 90022003006

SCREW - 3X16

Note: S/N 20001001-20009902

$0.99

$

In Stock, Qty 20+

0
