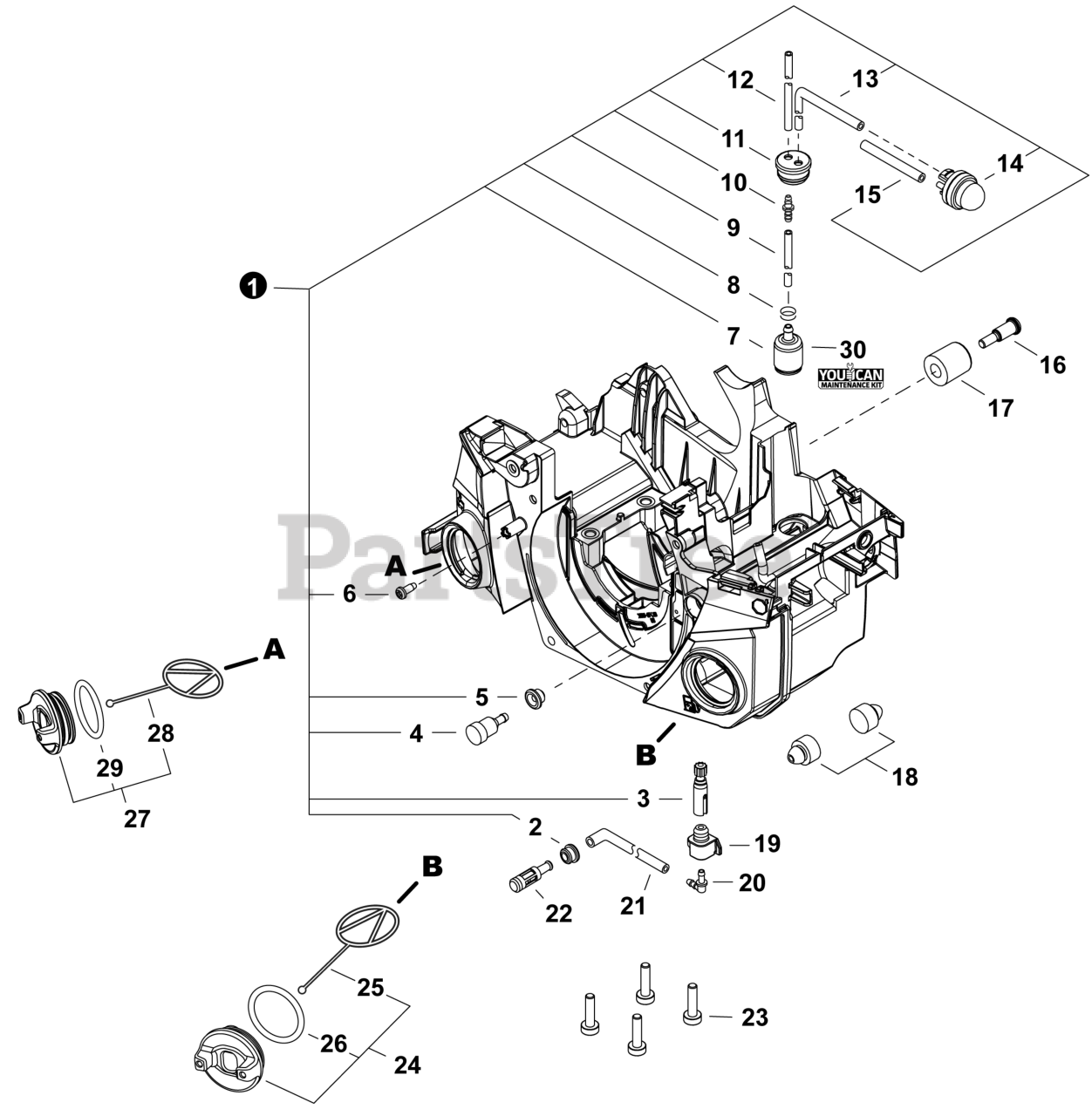

Fuel / Oil System / Engine Housing Assembly Parts Diagram

  • Title
1

Echo P021054210

HOUSING ASSY, ENGINE

Note: Includes Items 2-15

$

$

Currently unavailable

2

$1.49

$

In Stock, Qty 19

0

3

Echo C022000191

AUTO-OILER ASSY

$26.99

$

Usually ships in 2-4 days

0

4

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

5

Echo V137000001

GROMMET, FUEL

$1.49

$

In Stock, only 2 left!

0

6

Echo 9144904010

SCREW, TAPPING 4x10

$0.99

$

In Stock, only 2 left!

0

7

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

8

$0.99

$

Usually ships in 2-4 days

0

9

Echo V471003881

PIPE, FUEL 3x5x144 BLACK

$1.49

$

In Stock, only 4 left!

0

10

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

11

Echo 13211544331

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

12

Echo V471005860

PIPE, FUEL 3x5x65 BLACK

$3.49

$

Usually ships in 2-4 days

0

13

Echo V471005870

PIPE, FUEL 2.4x5x70

$2.49

$

Usually ships in 2-4 days

0

14

Echo A035000040

BULB, PURGE

$12.99

$

In Stock, only 1 left!

0

15

Echo V471001321

PIPE, FUEL 2.4x5x90 BLACK

$2.49

$

Usually ships in 2-4 days

0

16

Echo V203002260

BOLT 5x12

$0.99

$

In Stock, only 1 left!

0

17

Echo C310000110

CATCHER, CHAIN

$3.49

$

In Stock, only 1 left!

0

18

Echo V420001790

CUSHION

$7.49

$

In Stock, only 1 left!

0

19

Echo V138000030

GROMMET, OIL

$1.49

$

In Stock, only 4 left!

0

20

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

21

Echo 43721030831

PIPE 3x6x210 BLACK

$5.99

$

In Stock, only 2 left!

0

22

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

23

Echo V805000210

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 17

0

24

Echo P100004891

CAP ASSY, FUEL

Note: Includes Items 25-26

$5.99

$

Usually ships in 2-4 days

0

25

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

26

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

27

Echo P021054290

CAP ASSY, OIL

Note: Includes Items 28-29

$5.99

$

Usually ships in 2-4 days

0

28

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

29

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

30

Echo 90252Y

TUNE-UP KIT - YOUCANT
