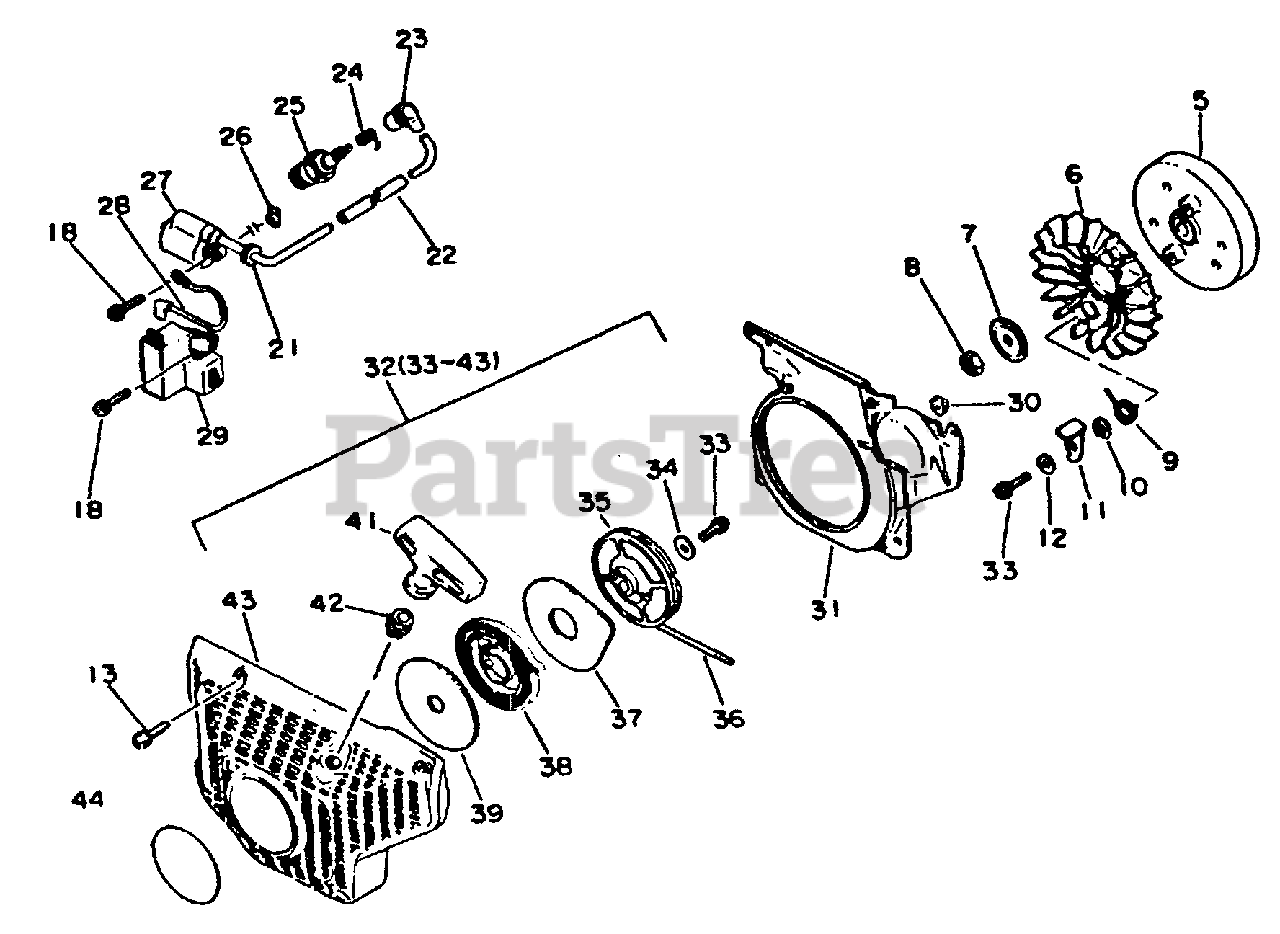

CS-4000 - Echo Chainsaw Ignition, Starter Parts Diagram

Chainsaw

Ignition, Starter Parts Diagram

  • Title
5

Echo 15680030131

FLYWHEEL
(Superseded to 15680230130)

$

$

Not available

6

Echo 10152119830

FAN
(Superseded to Discontinued)

$

$

Not available

7

Echo 10014319830

WASHER - CUP

$1.49

$

In Stock, Qty 6

0

8

$0.99

$

In Stock, Qty 20+

0

9

Echo 17723419830

SPRING, RETURN
(Superseded to 17723419832)

$3.49

$

In Stock, Qty 6

0

10

$1.99

$

Usually ships in 2-4 days

0

11

Echo 17721814530

PAWL, STARTER
(Superseded to 17721832630)

$16.99

$

In Stock, only 1 left!

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90028105020

SCREW - 5X20
(Superseded to 90023805020)

$0.99

$

In Stock, only 3 left!

0

18

Echo 90028104020

SCREW - 4X20
(Superseded to 90016204020)

$1.49

$

In Stock, Qty 20+

0

21

$0.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

23

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 8

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 18

0

25

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

$2.49

$

Usually ships in 2-4 days

0

27

Echo 15662630130

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

$7.49

$

Usually ships in 2-4 days

0

29

Echo 15660130131

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

30

$0.99

$

In Stock, only 4 left!

0

31

Echo 10153519830

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

32

Echo 17720019830

STARTER ASSY
(Superseded to 17720019931)

$

$

Not available

33

Echo 90028105014

SCREW - 5X14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 20+

0

34

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

35

Echo 17721514531

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

36

Echo 17722619830

ROPE, STARTER - 3.5X960

$4.99

$

Usually ships in 2-4 days

0

37

Echo 17724203930

PLATE, STARTER

$

$

Not available

38

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

39

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

41

Echo 17722819830

GRIP, STARTER

$4.99

$

Usually ships in 2-4 days

0

42

Echo 17722705020

GUIDE, ROPE

$3.99

$

In Stock, Qty 5

0

43

Echo 10150719830

CASE, STARTER
(Superseded to 10150719831)

$62.99

$

Usually ships in 2-4 days

0

33

Echo 90028105014

SCREW - 5X14
(Superseded to 90016205014)

$1.49

$

In Stock, Qty 20+

0

44

Echo 89011217831

LABEL - ECHO
(Superseded to 89011817830)

$6.49

$

In Stock, only 4 left!

0
