CS-400 F - Echo Chainsaw (SN: C33814001001 - C33814999999) Ignition Parts Diagram

Chainsaw

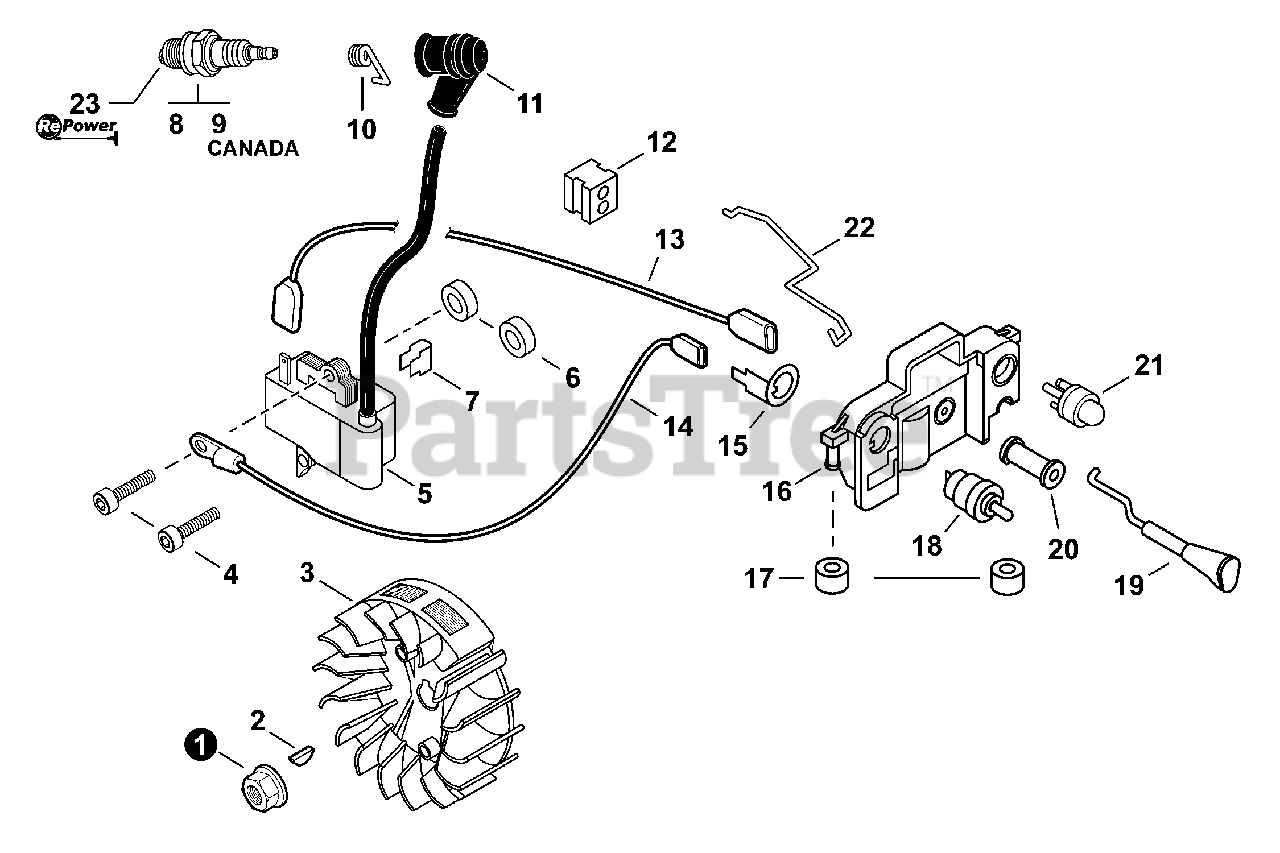

Ignition Parts Diagram

  • Title

1

Echo 90051500008

NUT, FLANGE M8

$1.99

$

In Stock, only 3 left!

0

2

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 14

0

3

Echo A409000272

FLYWHEEL

$84.99

$

Usually ships in 2-4 days

0

4

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo A411000264

COIL, IGNITION

$93.99

$

In Stock, only 2 left!

0

6

Echo 15011716430

WASHER 5.2×12×3

$2.99

$

In Stock, only 2 left!

0

7

Echo V490000310

CLIP

$1.49

$

Usually ships in 2-4 days

0

8

Echo 15901019830

SPARK PLUG - BPM8Y

$3.99

$

In Stock, Qty 20+

0

9

Echo A425000000

SPARK PLUG - BPMR8Y

$3.99

$

In Stock, Qty 20+

0

10

Echo A426000010

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

11

Echo A427000013

CAP, SPARK PLUG

$2.99

$

In Stock, Qty 18

0

12

Echo 15011404920

GROMMET, LEAD

$1.49

$

In Stock, only 1 left!

0

13

Echo V485000680

LEAD - IGNITION L= 172

$5.49

$

Usually ships in 2-4 days

0

14

Echo V485000620

LEAD - GROUND L= 140

$5.49

$

Usually ships in 2-4 days

0

15

Echo V486000021

TERMINAL, GROUND

$2.99

$

Usually ships in 2-4 days

0

16

Echo A439000145

BRACKET, SWITCH

$19.99

$

In Stock, only 1 left!

0

17

Echo 35113439930

CUSHION

$1.99

$

In Stock, only 4 left!

0

18

Echo 16340038330

SWITCH, ON-OFF

$15.99

$

In Stock, only 1 left!

0

19

Echo A241000140

ROD, CHOKE

$7.49

$

In Stock, Qty 14

0

20

Echo 17881014534

GROMMET, CHOKE
(Superseded to 17881014535)

$1.49

$

In Stock, Qty 5

0

21

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

22

Echo C454000100

ROD, THROTTLE

$7.49

$

In Stock, only 3 left!

0

23

Echo 90155

TUNE-UP KIT - REPOWER
(Superseded to 90155Y)

$36.99

$

In Stock, only 3 left!

0
