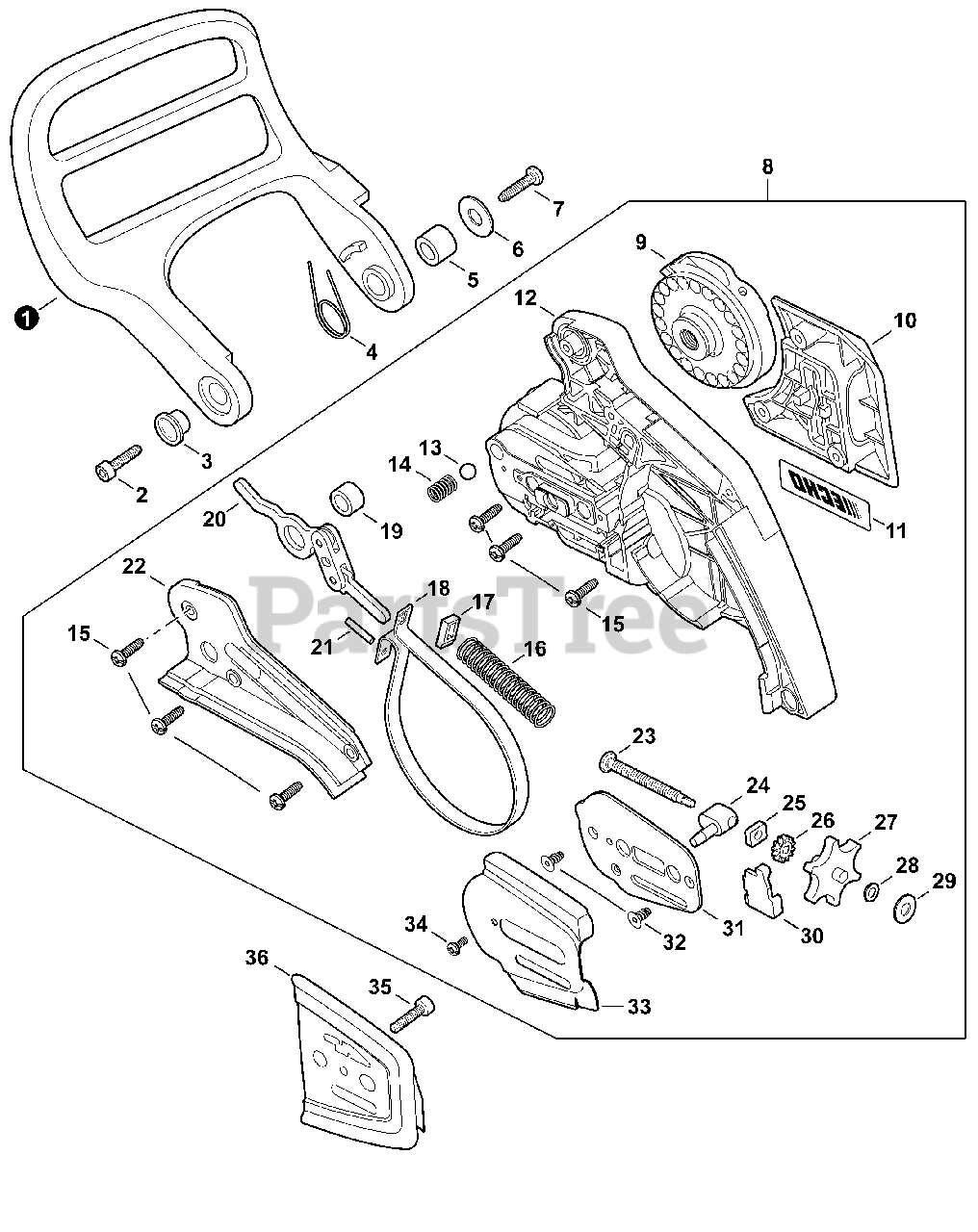

CS-400 F - Echo Chainsaw (SN: C33814001001 - C33814999999) Chain Brake Parts Diagram

Chainsaw

Chain Brake Parts Diagram

  • Title
1

Echo C320000480

LEVER, BRAKE

$31.99

$

Usually ships in 2-4 days

0

2

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, Qty 6

0

3

Echo V356000300

COLLAR 10

$1.99

$

In Stock, Qty 20+

0

4

Echo V452000250

SPRING, TORSION

$1.49

$

In Stock, Qty 13

0

5

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 4 left!

0

6

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 10

0

7

$1.49

$

In Stock, Qty 7

0

8

Echo 99988802200

CHAIN TENSIONING ASSY, TOOL-LESS

Note: Includes Items 9-34

$68.99

$

In Stock, only 1 left!

0

9

Echo J141000170

KNOB, SPROCKET GUARD

$21.99

$

Usually ships in 2-4 days

0

10

Echo C713000340

WHEEL COVER

$3.49

$

Usually ships in 2-4 days

0

11

Echo X502000340

LABEL, ECHO

$1.99

$

In Stock, Qty 12

0

12

Echo C300000910

GUARD, SPROCKET

$19.99

$

Usually ships in 2-4 days

0

13

$0.99

$

Usually ships in 2-4 days

0

14

Echo V450001690

SPRING, COMPRESSION

$0.99

$

Usually ships in 2-4 days

0

15

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 16

0

16

Echo V450000070

SPRING, COMPRESSION

$2.49

$

Usually ships in 2-4 days

0

17

$0.99

$

In Stock, Qty 20+

0

18

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, only 3 left!

0

19

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 4 left!

0

20

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 3 left!

0

21

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

22

Echo C345000530

COVER, BRAKE

$4.49

$

Usually ships in 2-4 days

0

23

Echo V203002020

SCREW, CHAIN TENSIONER

$2.99

$

In Stock, only 1 left!

0

24

Echo C309000170

TENSIONER, CHAIN

$27.99

$

In Stock, only 1 left!

0

25

Echo V352000280

COLLAR 4

$2.99

$

In Stock, only 1 left!

0

26

Echo V650000590

GEAR, SPUR

$5.99

$

Usually ships in 2-4 days

0

27

Echo V650000600

WHEEL, TENSION

$25.99

$

In Stock, only 1 left!

0

28

Echo V346000130

WASHER, WAVE

$1.49

$

In Stock, only 1 left!

0

29

Echo V303000360

WASHER 5

$0.99

$

In Stock, only 1 left!

0

30

Echo C233000080

COVER, GEAR

$0.99

$

In Stock, Qty 7

0

31

Echo V150003241

PLATE, EYE

$3.49

$

Usually ships in 2-4 days

0

32

Echo V251000140

SCREW 3

$0.99

$

Usually ships in 2-4 days

0

33

Echo C305000420

PLATE, GUIDE - OUTER

$5.99

$

Usually ships in 2-4 days

0

34

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 20+

0

35

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 16

0

36

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 1 left!

0
