CS-400 EVL - Echo Chainsaw Air Cleaner, Fuel System, Handles Parts Diagram

Chainsaw

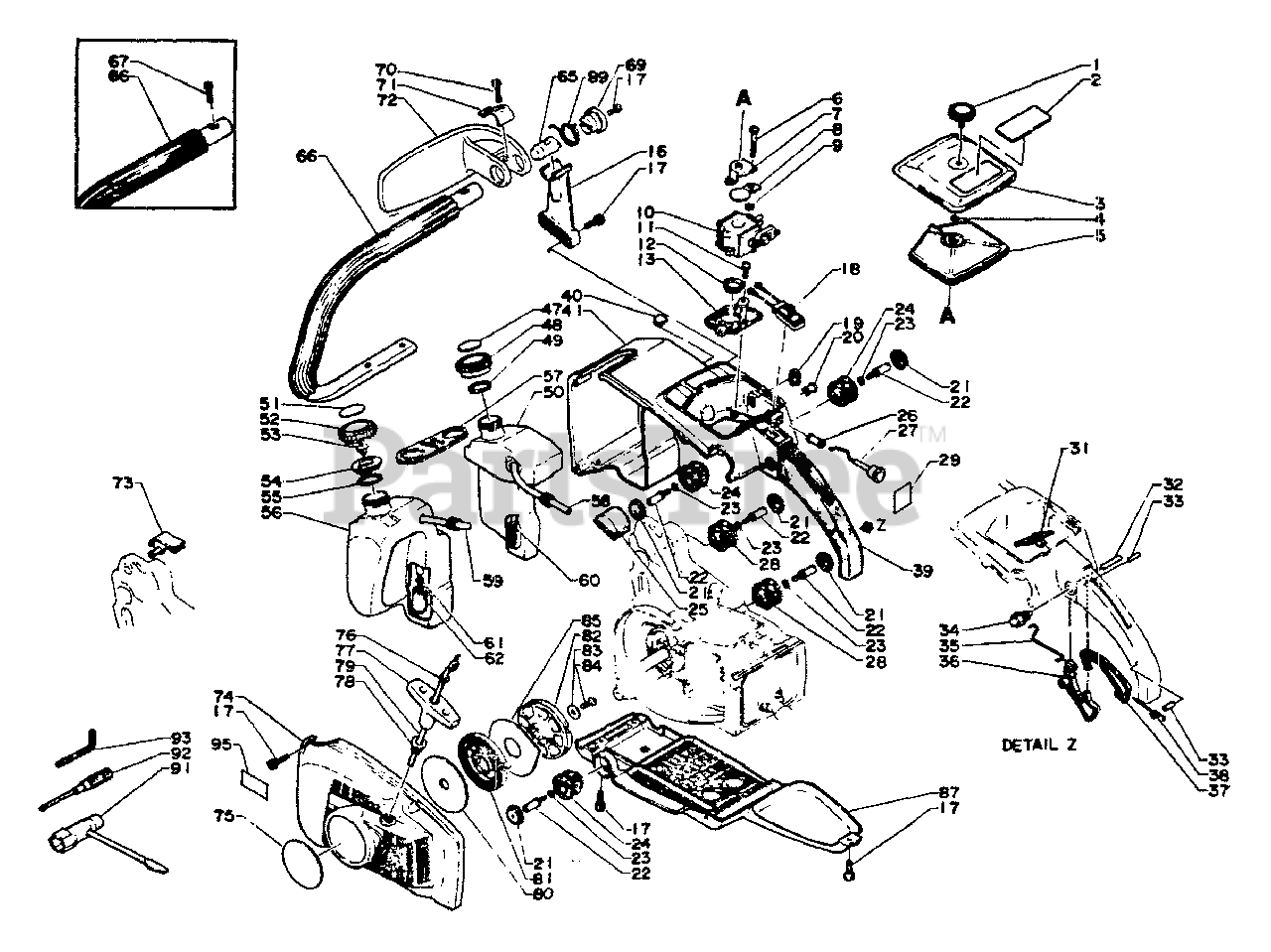

Air Cleaner, Fuel System, Handles Parts Diagram

  • Title

1

Echo 13040614330

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

2

Echo 89015114531

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

3

Echo 13031314531

COVER, AIR FILTER

$10.99

$

Usually ships in 2-4 days

0

4

Echo 90072000003

O-RING - 3

$1.49

$

In Stock, Qty 9

0

5

Echo 13031014530

FILTER, AIR
(Superseded to 13031017830)

$

$

Not available

6

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 7

0

7

Echo 13042014530

BRACKET, AIR CLEANER

$6.49

$

Usually ships in 2-4 days

0

8

Echo 17851503930

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 12300014630

CARBURETOR WA-96
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

12

Echo 13051112330

SEAL
(Superseded to Discontinued)

$

$

Not available

13

Echo 13001314530

ADAPTOR, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

16

Echo 35161414530

BRACKET, HANDLE - UPPER
(Superseded to Discontinued)

$

$

Not available

17

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

18

Echo 16340015230

IGNITION SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

19

Echo 12901003930

GROMMET

$1.49

$

In Stock, only 1 left!

0

20

Echo 12902314530

GROMMET
(Superseded to Discontinued)

$

$

Not available

21

Echo 10091814330

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

22

Echo 10091514332

SCREW

$3.49

$

Usually ships in 2-4 days

0

23

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 9

0

24

Echo 10091012530

CUSHION

$

$

Not available

25

Echo 35113814332

COVER, CUSHION

$

$

Not available

26

Echo 17881014530

GROMMET
(Superseded to 17881014531)

$1.49

$

In Stock, Qty 5

0

27

Echo 17851014530

ROD, CHOKE

$3.49

$

In Stock, only 1 left!

0

28

Echo 10091714530

CUSHION

$13.99

$

In Stock, only 1 left!

0

29

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

31

Echo 17821014530

GROMMET

$2.49

$

Usually ships in 2-4 days

0

32

Echo 90034050025

PIN - SPRING -- 5X25
(Superseded to Discontinued)

$

$

Not available

33

Echo 90034040013

PIN - SPRING -- 4X13

$0.99

$

In Stock, Qty 9

0

34

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 1 left!

0

35

Echo 17801114530

ROD, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

36

Echo 17801012331

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

37

Echo 17809012330

LOCKOUT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

38

Echo 17809110531

SPRING, LOCKOUT LEVER

$1.99

$

In Stock, only 1 left!

0

39

Echo 35111112330

GRIP, HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

40

Echo 35113712330

STOPPER

$1.49

$

Usually ships in 2-4 days

0

41

Echo 35111014530

HANDLE - REAR

$133.99

$

Usually ships in 2-4 days

0

Echo 43600213630

CAP ASSY
(Superseded to 43600213631)

$

$

Not available

47

Echo 89015311430

LABEL - CHAIN OIL
(Superseded to 89015318030)

$

$

Not available

48

Echo 43600012330

CAP, OIL TANK
(Superseded to 43600112330)

$

$

Not available

49

Echo 43601212330

GASKET, CAP

$0.99

$

In Stock, only 2 left!

0

50

Echo 43601014530

TANK, OIL

$13.99

$

Usually ships in 2-4 days

0

Echo 13160012331

CAP ASSY
(Superseded to 13160014531)

$

$

Not available

51

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

52

Echo 13101712330

CAP
(Superseded to Discontinued)

$

$

Not available

53

Echo 13131400330

VENT

$11.99

$

Usually ships in 2-4 days

0

54

Echo 13101512330

HOLDER, VENT
(Superseded to 13101514531)

$3.49

$

Usually ships in 2-4 days

0

55

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 10

0

56

Echo 13101014530

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

57

Echo 13103812331

CONNECTOR

$7.99

$

In Stock, only 1 left!

0

58

Echo 43720514530

OIL PIPE KIT
(Superseded to 13200714530)

$5.99

$

In Stock, Qty 9

0

59

Echo 13200714530

FUEL PIPE KIT

$5.99

$

In Stock, Qty 9

0

60

Echo 43620512330

FILTER, OIL
(Superseded to 43620514730)

$8.99

$

In Stock, only 2 left!

0

61

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

62

Echo 13120500830

FILTER, FUEL
(Superseded to 13120514930)

$8.99

$

In Stock, Qty 20+

0

66

Echo 35120514530

HANDLE - FRONT

$41.99

$

Usually ships in 2-4 days

0

65

Echo 35161710531

SPACER

$3.49

$

Usually ships in 2-4 days

0

67

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

69

Echo 35183313730

PLATE, HAND GUARD
(Superseded to Discontinued)

$

$

Not available

70

Echo 90016205030

SCREW - 5X30

$0.99

$

In Stock, Qty 10

0

71

Echo 35184014530

STOPPER
(Superseded to Discontinued)

$

$

Not available

72

Echo 35182613730

GUARD
(Superseded to Discontinued)

$

$

Not available

73

Echo 10061212332

COVER
(Superseded to Discontinued)

$

$

Not available

75

Echo 89001211133

LABEL - ECHO
(Superseded to 89011217831)

$6.49

$

In Stock, only 4 left!

0

Echo 17720014531

STARTER ASSY

$130.99

$

Usually ships in 2-4 days

0

74

Echo 10150714530

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

76

Echo 17722914330

RING, RETAINING

$1.49

$

In Stock, Qty 6

0

77

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 13

0

78

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

79

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$5.99

$

In Stock, Qty 5

0

80

Echo 17722103930

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

81

Echo 17722003930

SPRING, REWIND

$18.99

$

In Stock, only 3 left!

0

82

Echo 17721514531

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

83

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

84

Echo 90024105010

SCREW - 5X10

$0.99

$

In Stock, only 4 left!

0

85

Echo 17724203930

PLATE, STARTER

$

$

Not available

87

Echo 35112314530

SUPPORT
(Superseded to Discontinued)

$

$

Not available

89

Echo 35183615130

SPRING

$2.49

$

Usually ships in 2-4 days

0

91

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0

92

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 2 left!

0

93

Echo A605000100

HEX KEY - 4mm

$

$

Currently unavailable

95

Echo 89017613031

LABEL - NOISE

$2.99

$

Usually ships in 2-4 days

0
