Echo CS-400 - Echo Chainsaw (SN: F00512001001 - F00512999999) Chain Brake Parts Lookup with Diagrams

1

Echo C320000480

LEVER, BRAKE

$31.99

$

In Stock, Qty 8

2

Echo V203002180

BOLT 5x16

$1.49

$

In Stock, Qty 6

3

Echo V356000300

COLLAR 10

$1.99

$

In Stock, Qty 14

4

Echo V452000250

SPRING, TORSION

$1.49

$

In Stock, Qty 9

5

Echo 43311635430

SPACER 8x12x9

$5.49

$

Usually ships in 2-4 days

6

Echo 17721403930

WASHER 4.2x16.5x1

$0.99

$

In Stock, Qty 8

7

Echo V202000070

BOLT 4

$1.49

$

In Stock, Qty 7

8

Echo P021046210

BRAKE ASSY, CHAIN

Note: Includes Items 9-16

$75.99

$

In Stock, Qty 7

9

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, Qty 6

10

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

11

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, Qty 13

12

Echo 9305030098

PIN, SPRING 3x9.8

$0.99

$

In Stock, Qty 20+

13

Echo V202000060

SCREW 4x12

$1.49

$

In Stock, Qty 11

14

Echo C345000530

COVER, BRAKE

$4.49

$

In Stock, Qty 5

15

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 2 left!

16

Echo 43311635430

SPACER 8x12x9

$5.49

$

Usually ships in 2-4 days

17

Echo V265000200

NUT, FLANGE M8x1.25

$1.99

$

In Stock, Qty 20+

18

Echo V203000110

SCREW, CHAIN TENSION

$5.99

$

In Stock, Qty 20+

19

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

20

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 17

21

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

22

Echo V355000800

COLLAR 8

$1.49

$

In Stock, Qty 20+

23

Echo C305000012

PLATE, GUIDE - OUTER

$6.49

$

In Stock, Qty 18

24

Echo V202000060

SCREW 4x12

$1.49

$

In Stock, Qty 11

25

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, Qty 5

26

Echo V203002180

BOLT 5x16

$1.49

$

In Stock, Qty 6

27

Echo C310000000

CATCHER, CHAIN

$1.99

$

In Stock, Qty 20+

28

Echo C304000010

SPIKE, BUMPER

$24.99

$

In Stock, only 1 left!

29

Echo V203002190

BOLT 5x20

$1.49

$

In Stock, Qty 6

30

Echo 9132503005

SCREW 3x5

$0.99

$

In Stock, Qty 17

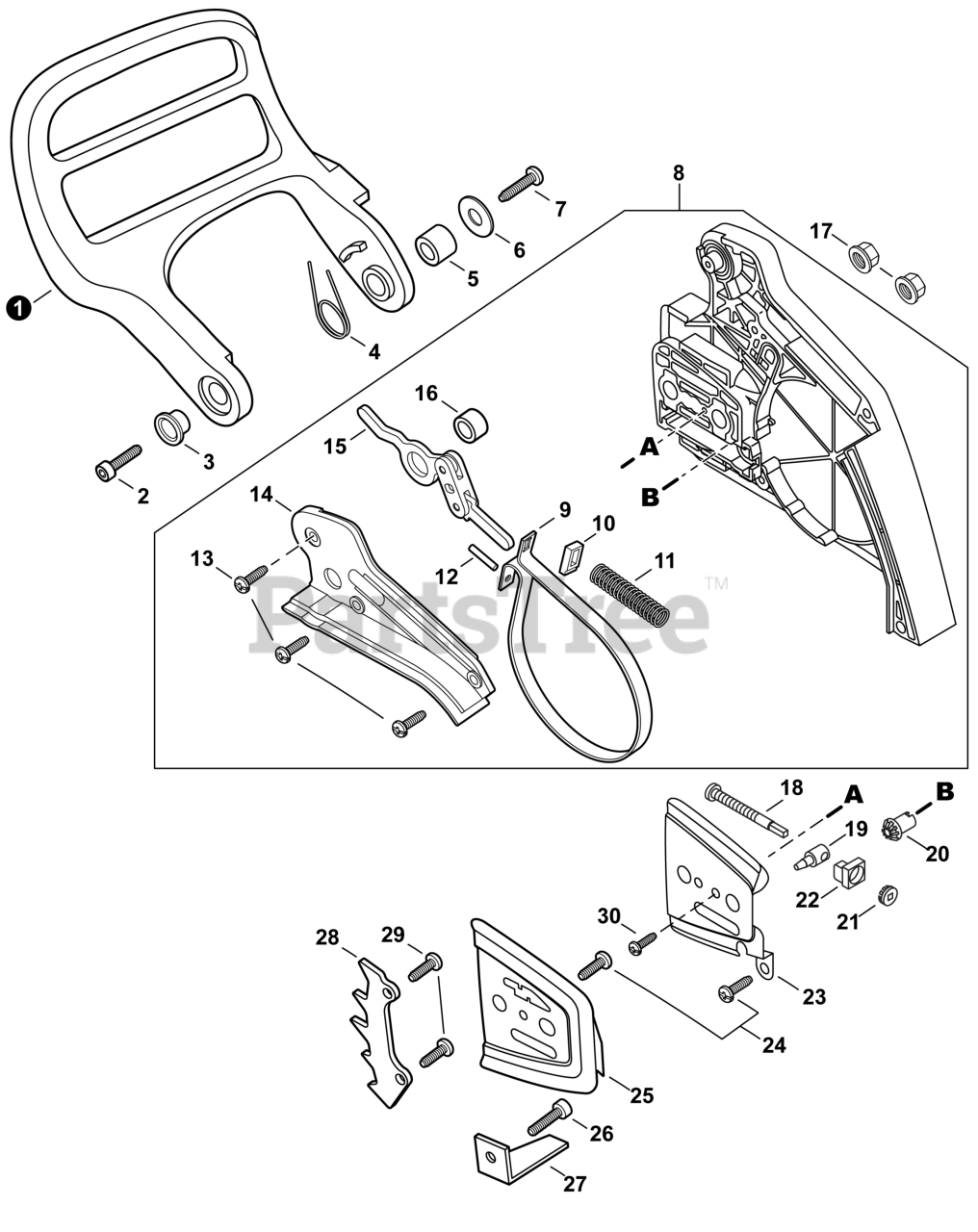

CS-400 - Echo Chainsaw (SN: F00512001001 - F00512999999) Chain Brake Parts Diagram

Chain Brake Parts Diagram

Echo C320000480

Echo V203002180

Echo V356000300

Echo V452000250

Echo 43311635430

Echo 17721403930

Echo V202000070

Echo P021046210

Echo C328000080

Echo V376000450

Echo V450000070

Echo 9305030098

Echo V202000060

Echo C345000530

Echo C334000090

Echo 43311635430

Echo V265000200

Echo V203000110

Echo C309000030

Echo V651000001

Echo V651000011

Echo V355000800

Echo C305000012

Echo V202000060

Echo 43301239930

Echo V203002180

Echo C310000000

Echo C304000010

Echo V203002190

Echo 9132503005
