CS-400 - Echo Chainsaw (SN: C33714001001 - C33714999999) Chain Brake Parts Diagram

Chainsaw

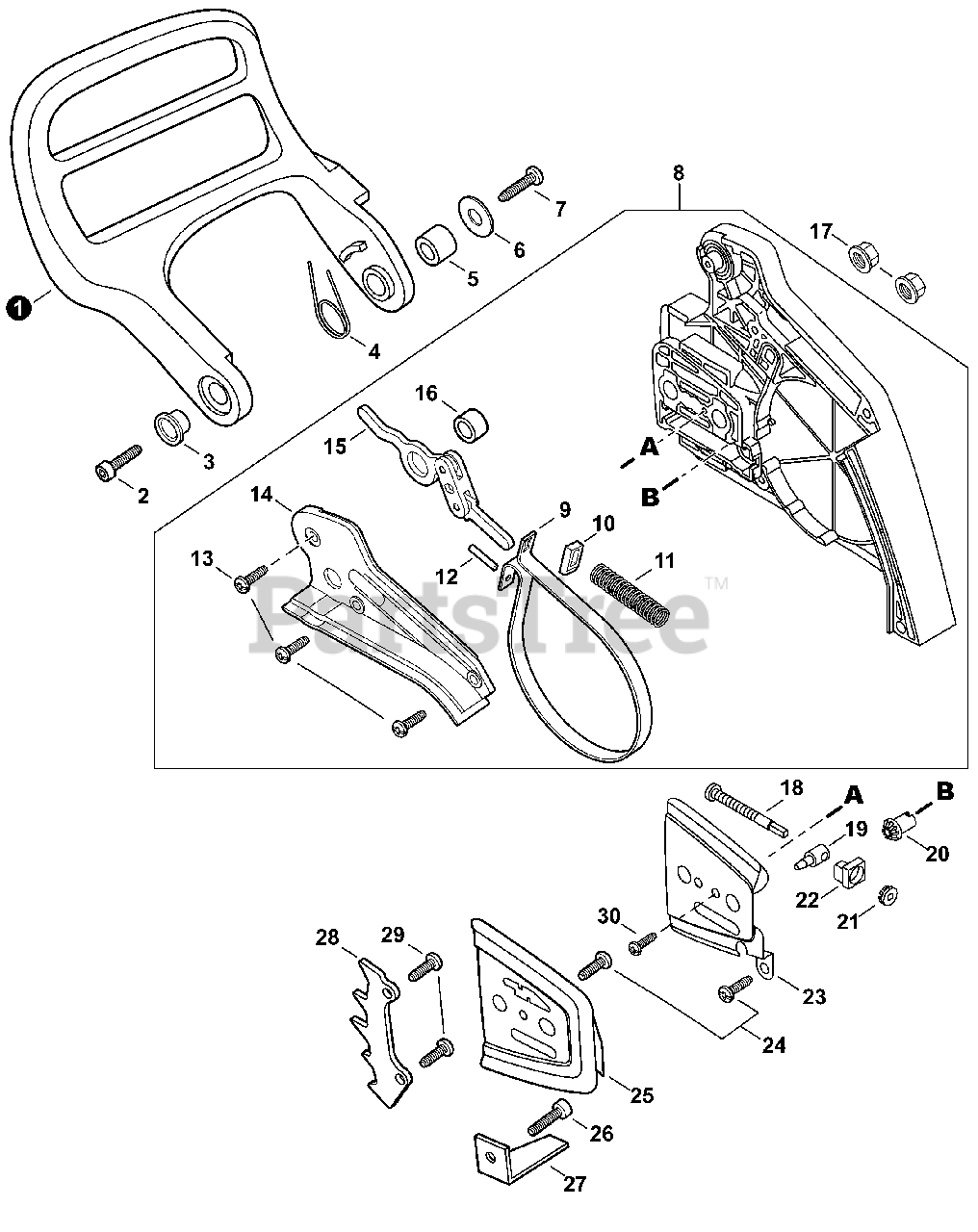

Chain Brake Parts Diagram

  • Title
1

Echo C320000480

LEVER, BRAKE

$31.99

$

In Stock, only 1 left!

0

2

Echo V203002180

BOLT 5×16

$1.49

$

In Stock, Qty 6

0

3

Echo V356000300

COLLAR 10

$1.99

$

In Stock, Qty 19

0

4

Echo V452000250

SPRING, TORSION

$1.49

$

In Stock, Qty 12

0

5

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 2 left!

0

6

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 9

0

7

$1.49

$

In Stock, Qty 7

0

8

Echo P021046210

BRAKE ASSY, CHAIN

Note: Includes ITEMS 9-16

$75.99

$

In Stock, Qty 10

0

9

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, only 2 left!

0

10

$0.99

$

In Stock, Qty 20+

0

11

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, only 3 left!

0

12

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

13

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 15

0

14

Echo C345000530

COVER, BRAKE

$4.49

$

In Stock, only 1 left!

0

15

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 3 left!

0

16

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 2 left!

0

17

$1.99

$

In Stock, Qty 20+

0

18

Echo V203000110

SCREW, CHAIN TENSION

$5.99

$

In Stock, Qty 20+

0

19

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

20

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

21

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

22

Echo V355000800

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

23

Echo C305000012

PLATE, GUIDE - OUTER

$6.49

$

In Stock, Qty 14

0

24

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 15

0

25

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 2 left!

0

26

Echo V203002180

BOLT 5×16

$1.49

$

In Stock, Qty 6

0

27

Echo C310000000

CHAIN CATCHER

$1.99

$

In Stock, only 3 left!

0

28

Echo C304000010

SPIKE, BUMPER

$24.99

$

In Stock, only 1 left!

0

29

Echo V203002190

BOLT 5×20

$1.49

$

Usually ships in 2-4 days

0

30

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 20+

0
