CS-400 - Echo Chainsaw (SN: C10013001001 - C10013999999) Chain Brake Parts Diagram

Chainsaw

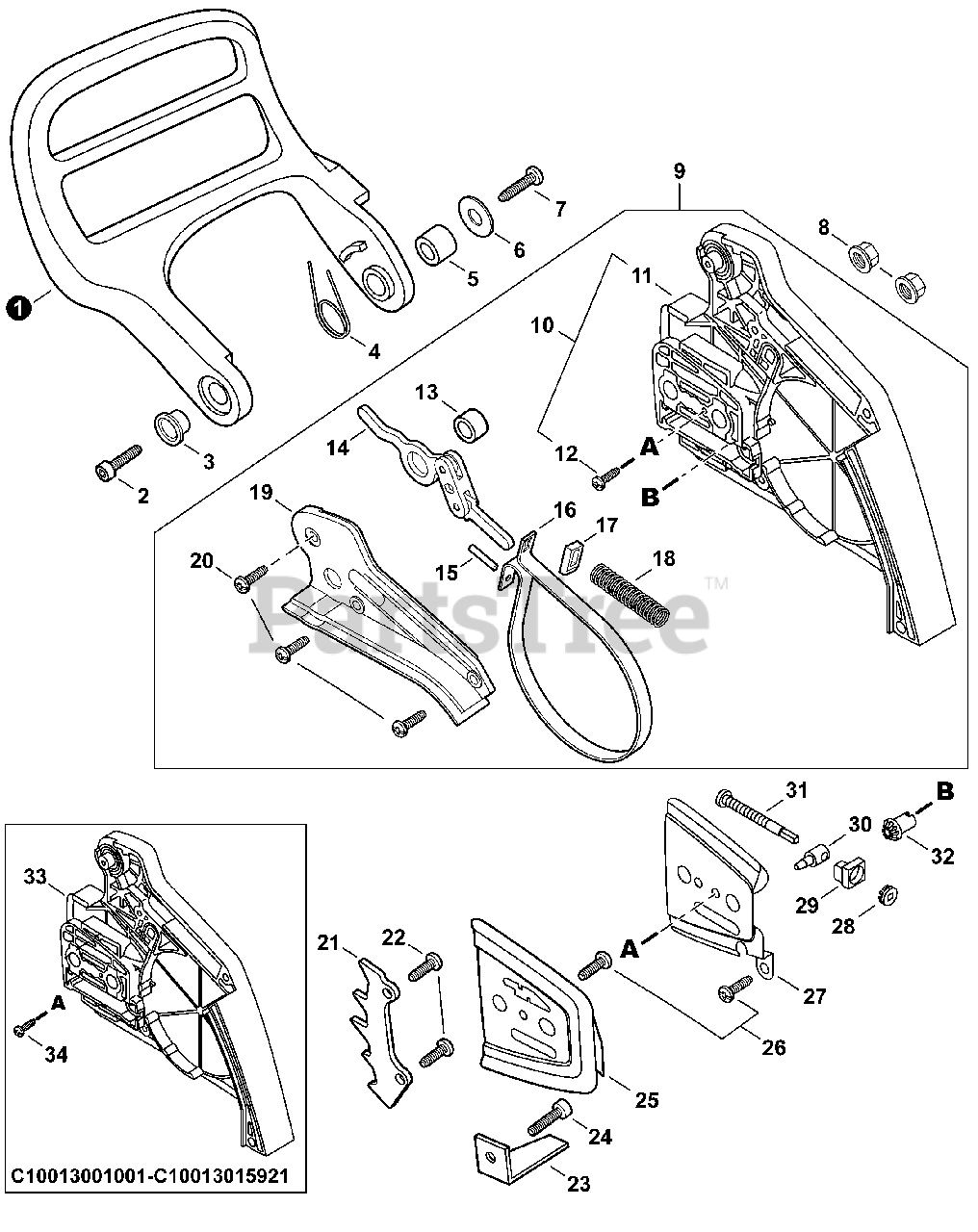

Chain Brake Parts Diagram

  • Title
1

Echo C320000111

LEVER, BRAKE
(Superseded to C320000112)

$31.99

$

In Stock, only 1 left!

0

2

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, only 4 left!

0

3

Echo V356000300

COLLAR 10

$1.99

$

In Stock, Qty 19

0

4

Echo V452000250

SPRING, TORSION

$1.49

$

In Stock, Qty 12

0

5

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 2 left!

0

6

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 9

0

7

$1.49

$

In Stock, Qty 7

0

8

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

9

Echo P021017220

BRAKE ASSY, CHAIN

Note: Includes ITEMS 10-20

$75.99

$

In Stock, Qty 8

0

10

Echo P021048060

SPROCKET GUARD SET

Note: Includes ITEMS 11-12

$24.99

$

In Stock, Qty 6

0

11

Echo C300000313

GUARD, SPROCKET
(Superseded to C300000790)

$24.99

$

In Stock, only 2 left!

0

12

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 20+

0

13

Echo 43311635430

SPACER 8×12×9

$5.49

$

In Stock, only 2 left!

0

14

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 3 left!

0

15

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

16

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, only 2 left!

0

17

$0.99

$

In Stock, Qty 20+

0

18

Echo V450000070

SPRING, COMPRESSION

$2.49

$

In Stock, only 3 left!

0

19

Echo C345000530

COVER, BRAKE

$4.49

$

In Stock, only 1 left!

0

20

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 15

0

21

Echo C304000010

SPIKE, BUMPER

$24.99

$

In Stock, only 1 left!

0

22

Echo 9114505020

SCREW TAPPING 5×20

$0.99

$

In Stock, Qty 20+

0

23

Echo C310000000

CHAIN CATCHER

$1.99

$

In Stock, only 3 left!

0

24

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, only 4 left!

0

25

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 2 left!

0

26

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 15

0

27

Echo C305000011

PLATE, GUIDE - OUTER
(Superseded to C305000012)

$6.49

$

In Stock, Qty 14

0

28

Echo V651000011

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

29

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

30

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

31

Echo V203000110

SCREW, CHAIN TENSION

$5.99

$

In Stock, Qty 20+

0

32

Echo V651000001

GEAR, BEVEL

$7.99

$

In Stock, Qty 20+

0

33

Echo C300000312

GUARD, SPROCKET
(Superseded to P021048060)

Note: S/N C10013001001-C10013015921

$24.99

$

In Stock, Qty 6

0

34

Echo 90022003006

SCREW 3×6

Note: S/N C10013001001-C10013015921

$0.99

$

In Stock, Qty 20+

0
