CS-400 - Echo Chainsaw (SN: C09212001001 - C09212999999) Engine Covers Parts Diagram

Chainsaw

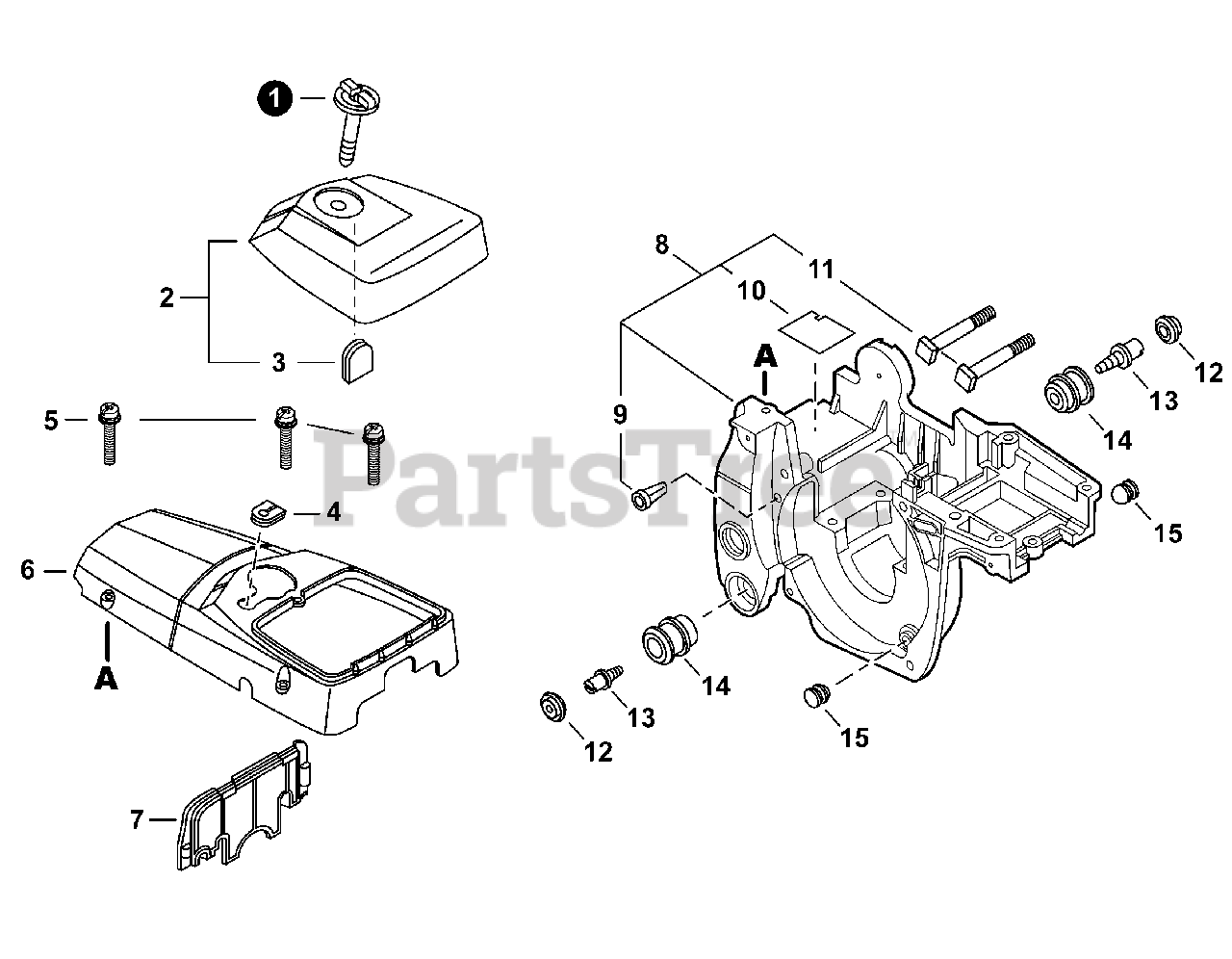

Engine Covers Parts Diagram

  • Title
1

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, only 3 left!

0

2

Echo P021007151

COVER ASSY, AIR FILTER
(Superseded to P021007152)

Note: Includes ITEM 3

$11.99

$

In Stock, Qty 6

0

3

$1.49

$

In Stock, Qty 15

0

4

Echo V135000010

GROMMET, HT

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90023805020

SCREW 5×20

$0.99

$

In Stock, only 3 left!

0

6

Echo A160000763

COVER, ENGINE
(Superseded to A160000764)

$34.99

$

Usually ships in 2-4 days

0

7

Echo A209000000

PLATE, INSULATOR

$5.99

$

Usually ships in 2-4 days

0

8

Echo P021016441

COVER ASSY, ENGINE
(Superseded to P021009858)

Note: Includes ITEMS 9-11

$78.99

$

Usually ships in 2-4 days

0

9

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

10

Echo V341000050

SHIELD, HEAT

$2.49

$

Usually ships in 2-4 days

0

11

Echo 43301119830

STUD, GUIDE BAR 8
(Superseded to 43301119831)

$2.99

$

In Stock, only 2 left!

0

12

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

13

$2.49

$

In Stock, Qty 5

0

14

Echo 10091060030

CUSHION 5

$21.99

$

In Stock, only 1 left!

0

15

Echo V420001250

CUSHION

$2.99

$

In Stock, only 1 left!

0
