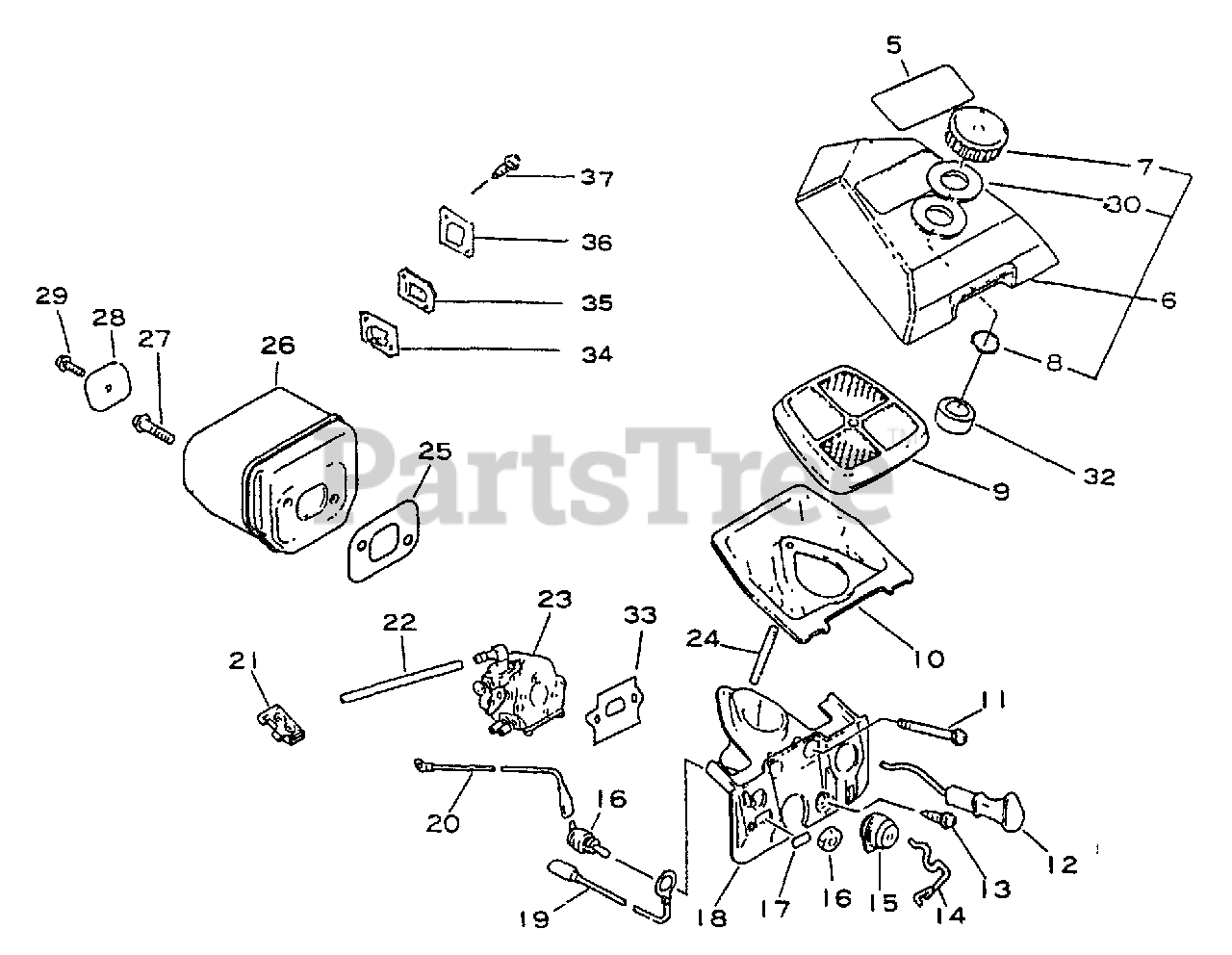

CS-3900 - Echo Chainsaw Intake, Exhaust, Air Cleaner Parts Diagram

Chainsaw

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title
5

Echo 89015137330

LABEL - MODEL
(Superseded to 89016137330)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 13030235430

AIR FILTER COVER ASSY
(Superseded to Discontinued)

Note: Includes ITEM 7, 8 & 30

$

$

Not available

7

Echo 13040633330

THUMBNUT
(Superseded to 13040633331)

$5.49

$

Usually ships in 2-4 days

0

8

Echo 90072000011

O-RING - 11

$1.49

$

In Stock, only 1 left!

0

30

$1.99

$

Usually ships in 2-4 days

0

9

Echo 13030036030

AIR CLEANER ASSY
(Superseded to 13030536030)

$17.99

$

Usually ships in 2-4 days

0

10

Echo 13032035430

CASE, AIR FILTER

$9.49

$

Usually ships in 2-4 days

0

11

Echo 90025205055

SCREW - 5X55
(Superseded to Discontinued)

$

$

Not available

12

Echo 17851037930

ROD, CHOKE

$12.99

$

Usually ships in 2-4 days

0

13

Echo 90025205020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

14

Echo 17801135430

ROD, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

15

$2.49

$

Usually ships in 2-4 days

0

16

Echo 16340035430

IGNITION SWITCH ASSY

$9.99

$

Usually ships in 2-4 days

0

17

Echo 89015735430

LABEL - SWITCH
(Superseded to Discontinued)

$

$

Not available

18

Echo 13040537930

BRACKET, AIR CLEANER
(Superseded to Discontinued)

$

$

Not available

$3.99

$

Usually ships in 2-4 days

0

$6.49

$

Usually ships in 2-4 days

0

21

$

$

Not available

22

Echo 43721116431

PIPE - FUEL

$0.99

$

In Stock, Qty 20+

0

23

------------------

CARBURETOR WT-118A

Note: SEE "Carburetor" ILLUSTRATION AND PARTS LIST FOR BREAKDOWN.

$

$

Not available

$2.49

$

Usually ships in 2-4 days

0

25

Echo 14551035431

GASKET, EXHAUST
(Superseded to Discontinued)

$

$

Not available

26

$78.99

$

Usually ships in 2-4 days

0

27

Echo 90016205018

SCREW - 5X18

$0.99

$

In Stock, Qty 9

0

28

Echo 14571135430

PLATE
(Superseded to 14571160631)

$6.99

$

Usually ships in 2-4 days

0

29

Echo 90023804008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

32

Echo 13041435430

CAP, INSIDE

$1.99

$

Usually ships in 2-4 days

0

33

Echo 13001035430

GASKET, INTAKE

$1.49

$

Usually ships in 2-4 days

0

34

Echo 14588435430

SCREEN, SPARK ARRESTOR
(Superseded to 14588439330)

$

$

Not available

35

Echo 14586335430

GUIDE, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

36

Echo 14585935430

BAFFLE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

37

Echo 90025004008

SCREW - 4X8

$0.99

$

Usually ships in 2-4 days

0
