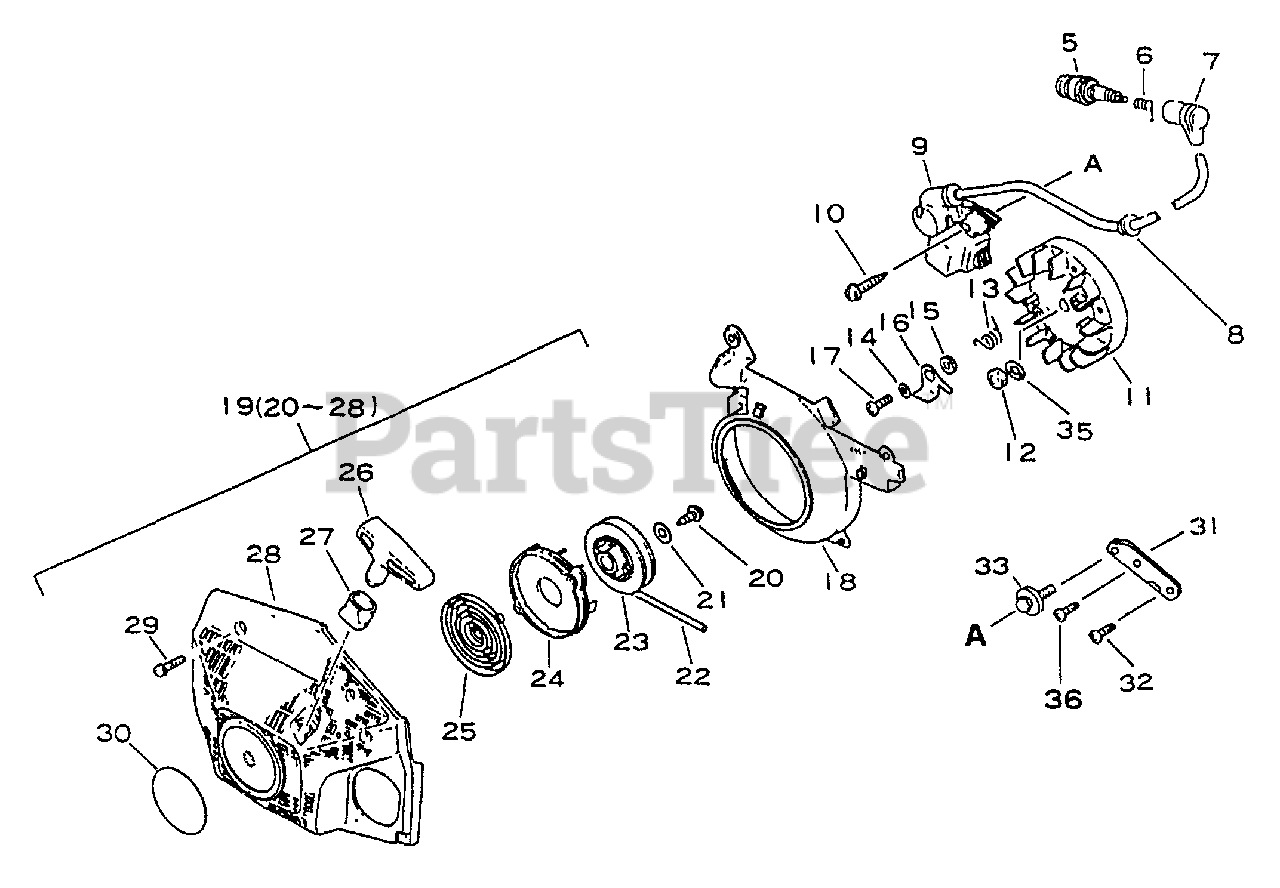

CS-3900 - Echo Chainsaw Ignition, Starter Parts Diagram

Chainsaw

Ignition, Starter Parts Diagram

  • Title
5

Echo 15901716431

SPARK PLUG -- CJ-6Y
(Superseded to Discontinued)

$

$

Not available

6

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

7

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

8

Echo 13211501460

GROMMET
(Superseded to 13211501461)

$1.49

$

In Stock, Qty 19

0

9

Echo 15660137330

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

10

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0

11

Echo 15680037330

FLYWHEEL

$122.99

$

Usually ships in 2-4 days

0

12

$0.99

$

In Stock, Qty 20+

0

13

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0

14

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

$1.99

$

In Stock, Qty 9

0

16

Echo 17721835430

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

17

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

18

Echo 10153537330

SHIELD, FAN
(Superseded to Discontinued)

$

$

Not available

19

Echo 17720037932

STARTER ASSY
(Superseded to 17720037933)

Note: INCLUDES ITEMS 20 - 28

$

$

Not available

20

Echo 90025205014

SCREW - 5X14

$0.99

$

In Stock, only 2 left!

0

21

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 5

0

22

Echo 17722611130

ROPE, STARTER
(Superseded to Discontinued)

$

$

Not available

23

Echo 17721535430

REEL, ROPE

$8.49

$

Usually ships in 2-4 days

0

24

Echo 17722135430

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

25

Echo 17722035430

SPRING, REWIND

$13.99

$

In Stock, only 1 left!

0

26

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$8.49

$

In Stock, Qty 20+

0

27

Echo 17722735431

GUIDE, ROPE
(Superseded to 17722737930)

$3.49

$

Usually ships in 2-4 days

0

28

Echo 17720937932

CASE, STARTER
(Superseded to 17720937934)

$44.99

$

Usually ships in 2-4 days

0

29

Echo 90025205020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

30

Echo 89011217832

LABEL - ECHO
(Superseded to 89011849330)

$6.49

$

In Stock, only 4 left!

0

31

Echo 15663537330

TERMINAL - GROUND

$1.99

$

Usually ships in 2-4 days

0

32

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, only 3 left!

0

$2.99

$

Usually ships in 2-4 days

0

34

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 12

0

35

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

36

Echo 90021604006

SCREW - 4X6
(Superseded to Discontinued)

$

$

Not available
