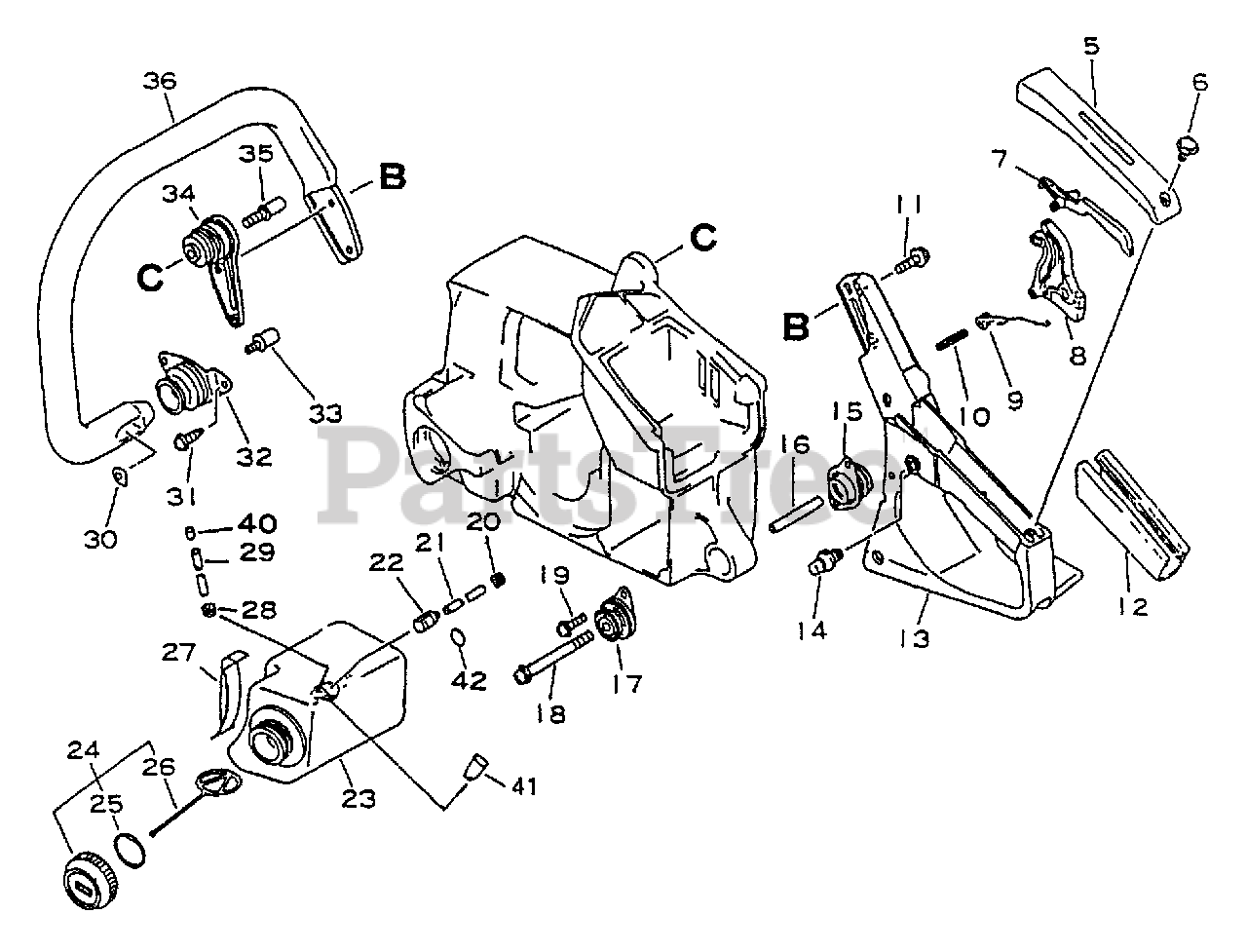

CS-3900 - Echo Chainsaw Handles, Fuel System Parts Diagram

Chainsaw

Handles, Fuel System Parts Diagram

  • Title
5

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, only 2 left!

0

6

Echo 90025204014

SCREW - 4X14

$0.99

$

Usually ships in 2-4 days

0

7

Echo 17809037930

LEVER, TRIGGER LOCKOUT

$4.99

$

In Stock, only 1 left!

0

8

Echo 17800537930

TRIGGER, THROTTLE
(Superseded to 17800537931)

$9.99

$

Usually ships in 2-4 days

0

9

Echo 17804335430

SPRING, TRIGGER

$2.49

$

Usually ships in 2-4 days

0

10

Echo 90034540030

PIN - SPRING -- 4X30

$1.99

$

In Stock, only 3 left!

0

11

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

12

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

Usually ships in 2-4 days

0

13

Echo 35111037930

HANDLE - REAR

$36.99

$

Usually ships in 2-4 days

0

14

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

15

Echo 10091736030

CUSHION
(Superseded to Discontinued)

$

$

Not available

16

$3.99

$

Usually ships in 2-4 days

0

17

$11.99

$

Usually ships in 2-4 days

0

18

Echo 90025205070

SCREW - 5X70

$1.49

$

Usually ships in 2-4 days

0

19

Echo 90024204028

SCREW - 4X28

$0.99

$

Usually ships in 2-4 days

0

20

$1.49

$

In Stock, Qty 20+

0

21

Echo 13201035430

PIPE - 3X6X230 -- BLACK
(Superseded to 13201035431)

Note: RePower BULK OPTION: 90015

$7.99

$

Usually ships in 2-4 days

0

22

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

23

Echo 13103937930

TANK, FUEL
(Superseded to 13103937931)

$

$

Not available

24

Echo 13100437932

CAP ASSY - ORANGE
(Superseded to 13100437933)

Note: INCLUDES ITEMS 25-26

$10.99

$

In Stock, Qty 20+

0

25

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 10

0

26

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

27

Echo 13191035430

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

28

Echo 13132935430

GROMMET
(Superseded to 13132935431)

$2.49

$

Usually ships in 2-4 days

0

29

Echo 13131235431

PIPE - 3X5X130
(Superseded to Discontinued)

$

$

Not available

30

$6.99

$

Usually ships in 2-4 days

0

31

Echo 90025205020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

0

32

$14.99

$

Usually ships in 2-4 days

0

33

$3.49

$

Usually ships in 2-4 days

0

34

Echo 10092135430

CUSHION
(Superseded to Discontinued)

$

$

Not available

35

Echo 10092635430

SCREW
(Superseded to 10091535430)

$3.49

$

Usually ships in 2-4 days

0

36

Echo 35164035430

HANDLE - FRONT
(Superseded to 35161035430)

$56.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 8

0

41

Echo 10022307320

PLUG
(Superseded to Discontinued)

$

$

Not available

42

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0
