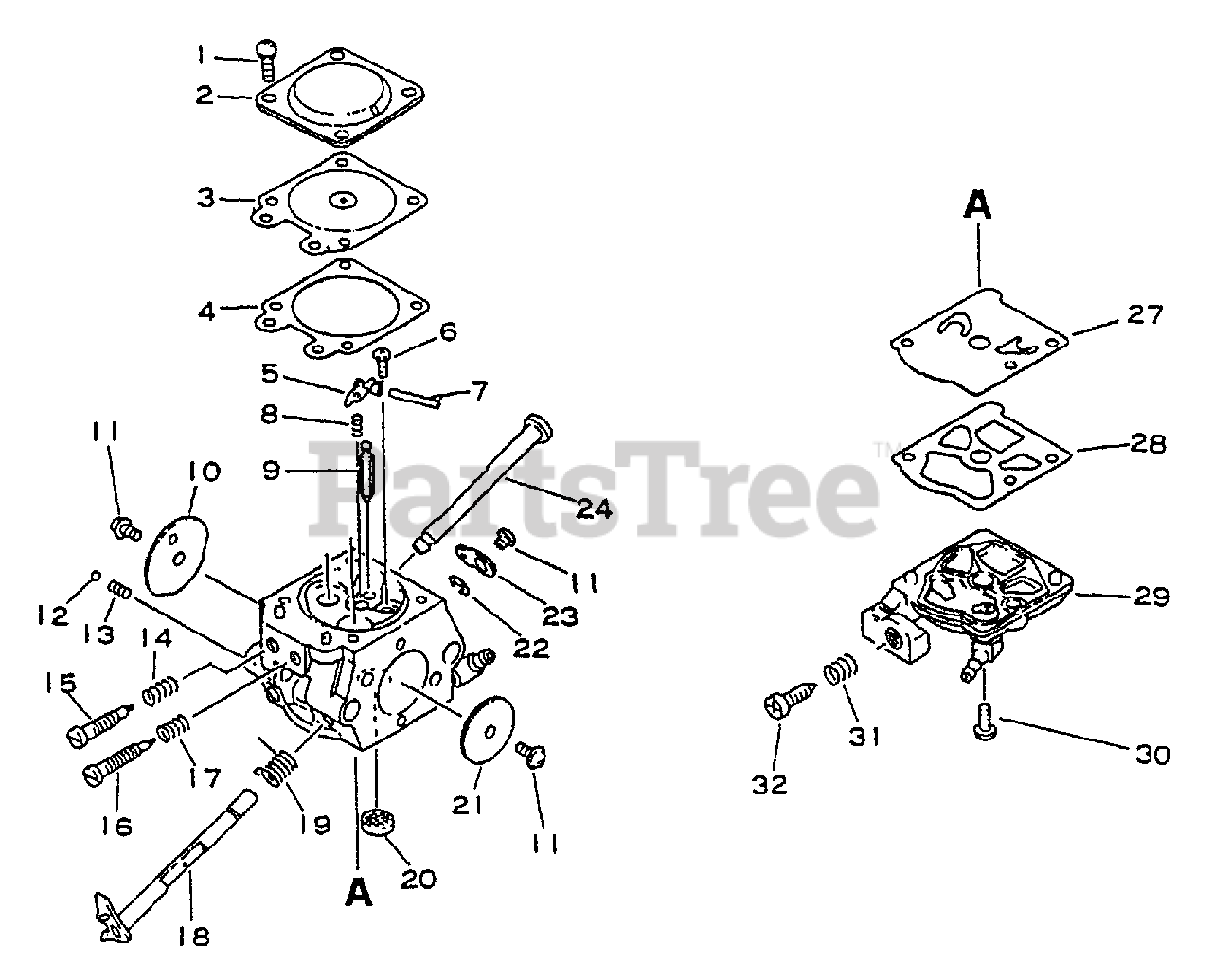

CS-3900 - Echo Chainsaw Carburetor Parts Diagram

Chainsaw

Carburetor Parts Diagram

  • Title

Echo 12300037331

CARBURETOR WT-118A
(Superseded to 12300037332)

$82.99

$

Usually ships in 2-4 days

0

1

------------------

SCREW

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Use Carburetor Repair Kit P/N 12310037330 And Carburetor Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

4

------------------

GASKET, METERING

Note: Use Carburetor Repair Kit P/N 12310037330 And Carburetor Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

5

------------------

LEVER, METERING

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

6

------------------

SCREW, METERING LEVER PIN

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

7

------------------

PIN, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

9

------------------

VALVE, INLET NEEDLE

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

10

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

11

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 13

0

12

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

13

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

14

------------------

SPRING

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

15

Echo 12312037330

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

16

Echo 12311837330

NEEDLE - LOW SPEED

$5.49

$

Usually ships in 2-4 days

0

17

Echo 12312122130

SPRING

$3.49

$

Usually ships in 2-4 days

0

18

Echo 12311735430

SHAFT, THROTTLE

$4.99

$

Usually ships in 2-4 days

0

19

Echo 12311337330

SPRING, THROTTLE RETURN
(Superseded to 12311337530)

$2.99

$

Usually ships in 2-4 days

0

20

------------------

STRAINER

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

21

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12315035430

LEVER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

Echo 12313135430

SHAFT, CHOKE

$7.49

$

Usually ships in 2-4 days

0

27

------------------

DIAPHRAGM, PUMP

Note: Use Carburetor Repair Kit P/N 12310037330 And Carburetor Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

28

------------------

GASKET, PUMP

Note: Use Carburetor Repair Kit P/N 12310037330 And Carburetor Diaphragm/Gasket Kit P/N 12310137330

$

$

Not available

29

Echo 12312435430

COVER, PUMP

$8.99

$

Usually ships in 2-4 days

0

30

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

31

------------------

SPRING, IDLE ADJUST

Note: Use Carburetor Repair Kit P/N 12310037330

$

$

Not available

32

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

Echo 12310037330

REPAIR KIT

$15.99

$

In Stock, only 2 left!

0

Echo 12310137330

DIAPHRAGM/GASKET KIT

$7.49

$

Usually ships in 2-4 days

0
