CS-370 - Echo Chainsaw (SN: C33714001001 - C33714999999) Engine Parts Diagram

Chainsaw

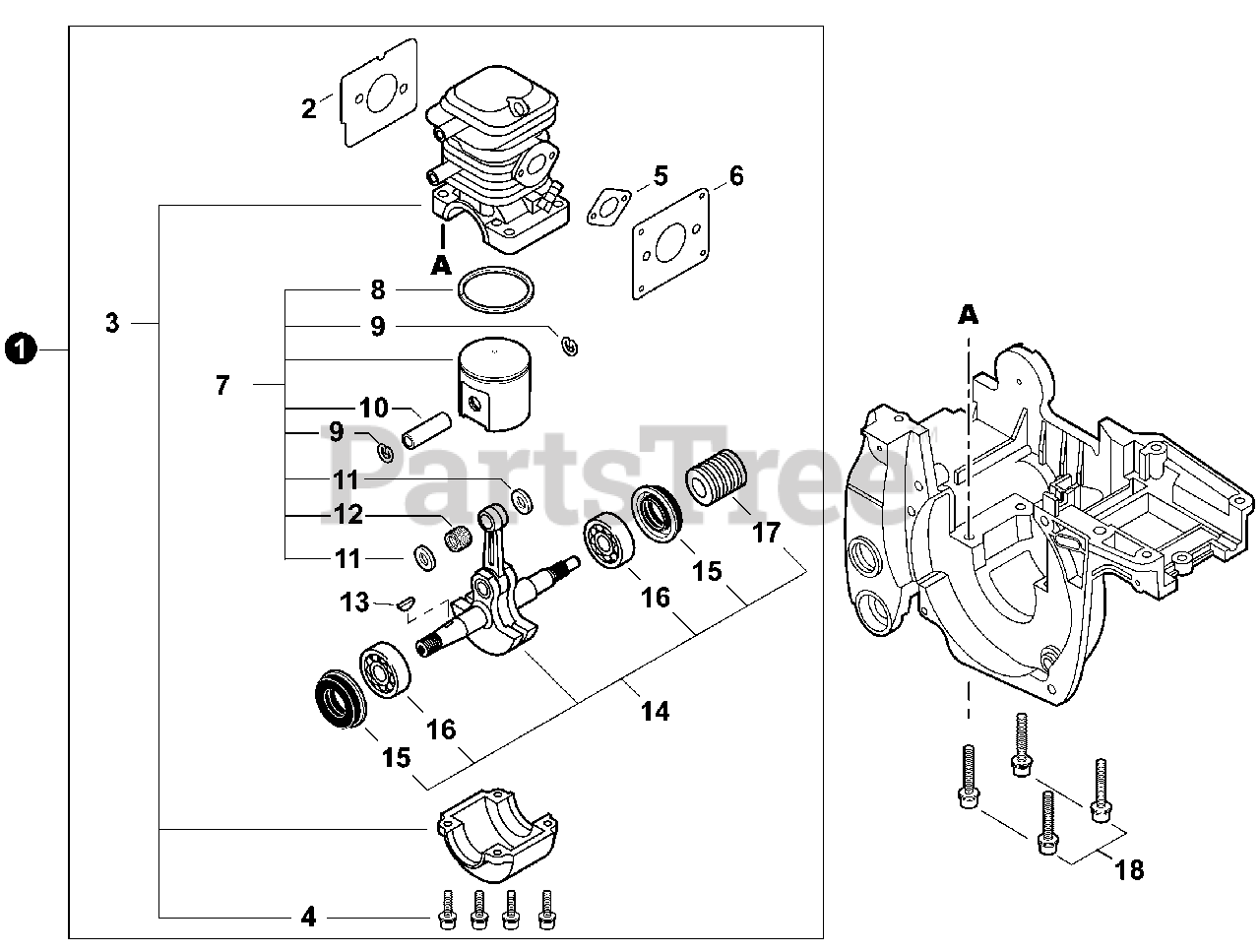

Engine Parts Diagram

  • Title

1

Echo SB1101

SHORT BLOCK

Note: Includes ITEMS 2-17

$261.99

$

Usually ships in 2-4 days

0

2

Echo V104000732

GASKET, EXHAUST

$3.99

$

In Stock, Qty 10

0

3

Echo P021017360

CRANKCASE KIT

Note: Includes ITEM 4

$136.99

$

Usually ships in 2-4 days

0

4

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

5

Echo V103000290

GASKET, INTAKE

$2.49

$

In Stock, Qty 14

0

6

Echo V103000280

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

7

Echo P021036520

PISTON KIT

Note: Includes ITEMS 8-12

$59.99

$

In Stock, only 1 left!

0

8

Echo A101000160

RING, PISTON

$6.49

$

In Stock, only 2 left!

0

9

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 10

0

10

Echo V607000000

PIN, PISTON 9×6×33.8

$5.99

$

Usually ships in 2-4 days

0

11

Echo 10001453630

WASHER, THRUST 9×12×15×3

$5.99

$

Usually ships in 2-4 days

0

12

Echo 10001216131

BEARING, NEEDLE 9

$10.99

$

Usually ships in 2-4 days

0

13

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 15

0

14

Echo P021009841

CRANKSHAFT ASSY

Note: Includes ITEMS 15-17

$182.99

$

Usually ships in 2-4 days

0

15

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, only 3 left!

0

16

Echo 90088836201

BEARING, BALL 6201
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

17

Echo V652000010

GEAR, WORM

$11.99

$

Usually ships in 2-4 days

0

18

Echo 90016205030

BOLT 5×30

$0.99

$

In Stock, only 3 left!

0
