CS-370 - Echo Chainsaw (SN: C08011001001 - C08011999999) Engine S/N C08011001001-C08011017600 Parts Diagram

Chainsaw

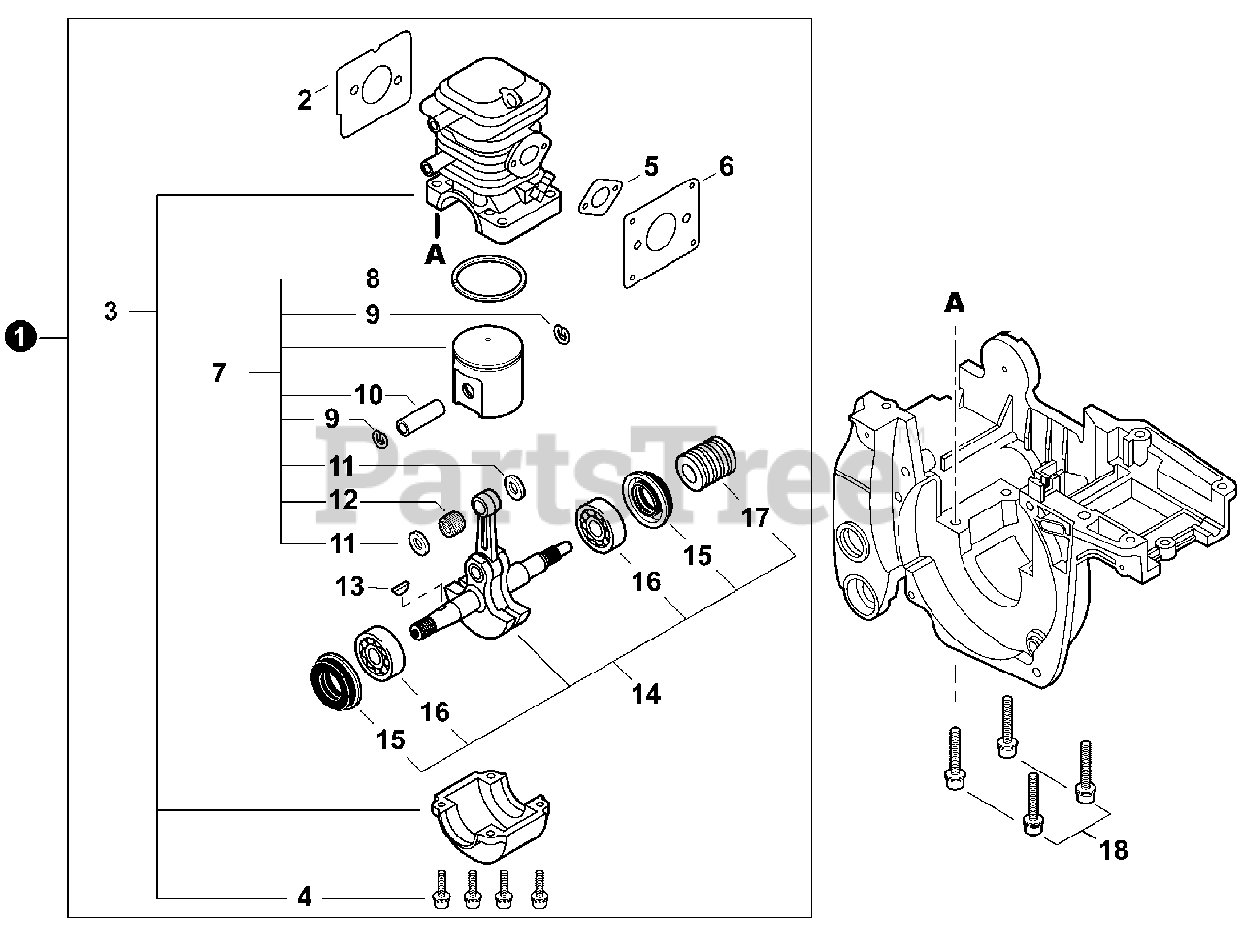

Engine S/N C08011001001-C08011017600 Parts Diagram

  • Title

1

Echo SB1088

SHORT BLOCK

Note: Includes items 2-17

$275.99

$

Usually ships in 2-4 days

0

2

Echo V104000731

GASKET, EXHAUST
(Superseded to V104000732)

$3.99

$

In Stock, Qty 10

0

3

Echo P021009823

CRANKCASE SET

Note: Includes item 4

$136.99

$

Usually ships in 2-4 days

0

4

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

5

Echo V103000290

GASKET, INTAKE

$2.49

$

In Stock, Qty 14

0

6

Echo V103000280

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

7

Echo P021009830

PISTON KIT

Note: Includes items 8-12

$57.99

$

In Stock, only 1 left!

0

8

Echo A101000110

RING, PISTON

$5.99

$

In Stock, only 1 left!

0

9

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 10

0

10

Echo 10001327430

PIN, PISTON 6×9×30

$7.49

$

Usually ships in 2-4 days

0

11

Echo 10001453630

WASHER, THRUST 9×12×15×3

$5.99

$

Usually ships in 2-4 days

0

12

Echo 10001216131

BEARING, NEEDLE 9

$10.99

$

Usually ships in 2-4 days

0

13

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 15

0

14

Echo P021009840

CRANKSHAFT ASSY
(Superseded to P021009841)

Note: Includes items 15-17

$182.99

$

Usually ships in 2-4 days

0

15

Echo V505000010

SEAL, OIL 12
(Superseded to V505000011)

$7.99

$

In Stock, only 3 left!

0

16

Echo 90088836201

BEARING, BALL 6201
(Superseded to 9403536201)

$7.99

$

In Stock, Qty 9

0

17

Echo V652000010

GEAR, WORM

$11.99

$

Usually ships in 2-4 days

0

18

Echo 90016205030

BOLT 5×30

$0.99

$

In Stock, only 3 left!

0
