CS-370 - Echo Chainsaw (SN: C08011001001 - C08011999999) Carburetor S/N C08011001001-C08011017600 Parts Diagram

Chainsaw

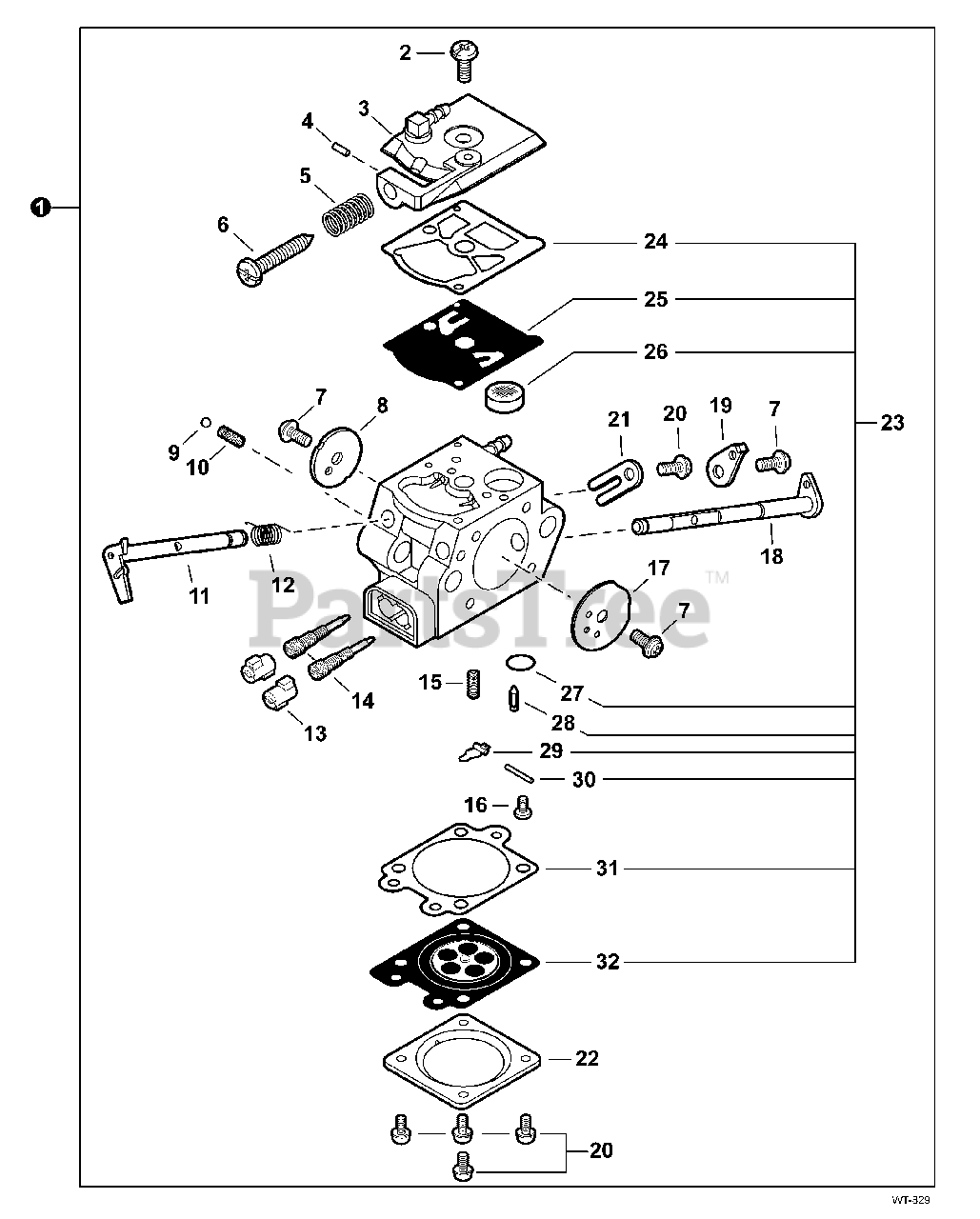

Carburetor S/N C08011001001-C08011017600 Parts Diagram

  • Title
1

Echo A021001330

CARBURETOR - WT-829
(Superseded to A021001331)

Note: Includes items 2-32

$107.99

$

In Stock, only 1 left!

0

$0.99

$

In Stock, only 1 left!

0

3

Echo 12312438330

COVER, FUEL PUMP

$7.49

$

Usually ships in 2-4 days

0

4

Echo 12317815030

PLUG, FRICTION

$4.99

$

Usually ships in 2-4 days

0

5

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 14

0

6

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 9

0

$1.49

$

In Stock, Qty 13

0

8

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

9

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

Usually ships in 2-4 days

0

10

$1.49

$

Usually ships in 2-4 days

0

11

Echo P003001800

SHAFT ASSY, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

12

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

13

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

14

Echo 12311802261

NEEDLE, MIXTURE

$3.99

$

In Stock, Qty 11

0

15

Echo 12312239330

SPRING, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

16

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

17

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

18

Echo 12313135430

SHAFT, CHOKE

$7.49

$

Usually ships in 2-4 days

0

19

Echo P003001520

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

20

$1.99

$

Usually ships in 2-4 days

0

21

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

22

Echo 12314203930

COVER, METERING DIAPHRAGM

$3.99

$

In Stock, only 1 left!

0

23

Echo P033000030

REPAIR KIT, CARBURETOR

Note: Includes items 24-32

$8.49

$

In Stock, Qty 12

0

24

GASKET, PUMP

$

$

Not available

25

DIAPHRAGM, PUMP

$

$

Not available

26

SCREEN, INLET

$

$

Not available

27

PLUG, WELCH

$

$

Not available

28

VALVE, INLET NEEDLE

$

$

Not available

29

LEVER, METERING

$

$

Not available

30

PIN, METERING LEVER

$

$

Not available

31

GASKET, METERING DIAPHRAGM

$

$

Not available

32

DIAPHRAGM, METERING

$

$

Not available
