CS-370 - Echo Chainsaw (SN: 10001001 - 10999999) Carburetor -- WT-829 S/N: 10002001 - 10999999 Parts Diagram

Chainsaw

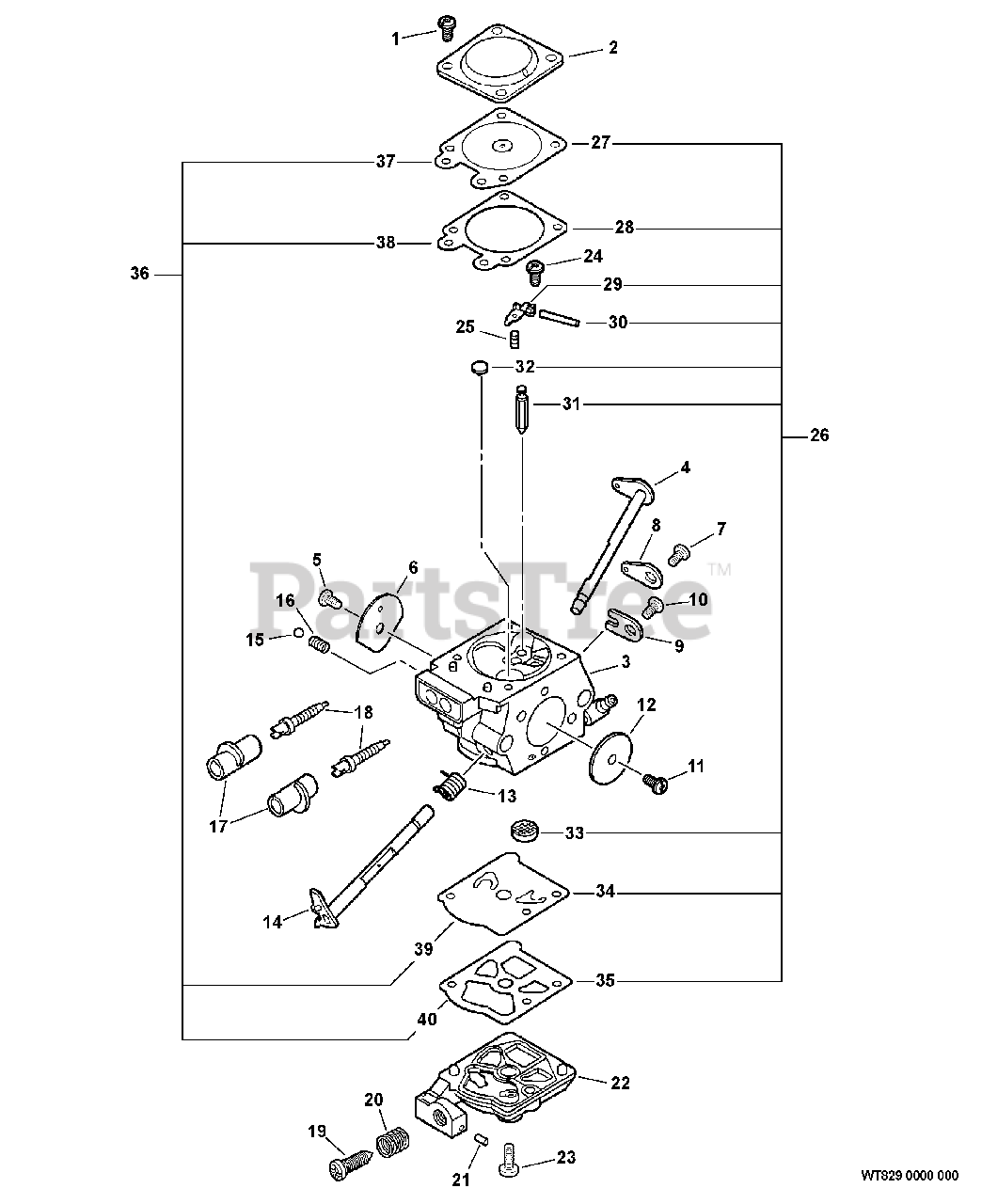

Carburetor -- WT-829 S/N: 10002001 - 10999999 Parts Diagram

  • Title

Echo A021001330

CARBURETOR WT-829
(Superseded to A021001331)

$107.99

$

In Stock, only 1 left!

0

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo 12313135430

SHAFT, CHOKE

$7.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

6

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

8

Echo P003001520

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

9

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

10

$1.99

$

Usually ships in 2-4 days

0

11

$1.49

$

In Stock, Qty 13

0

12

Echo 12311610530

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

13

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

14

Echo P003001800

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

15

$1.49

$

Usually ships in 2-4 days

0

16

Echo 12313610630

BALL, CHOKE

$0.99

$

Usually ships in 2-4 days

0

17

Echo P003000010

CAP, LIMITER

$0.99

$

In Stock, Qty 20+

0

18

Echo 12311802261

NEEDLE - MIXTURE

$3.99

$

In Stock, Qty 11

0

19

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 10

0

20

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 15

0

$4.99

$

Usually ships in 2-4 days

0

22

Echo 12312438330

COVER, PUMP

$7.49

$

Usually ships in 2-4 days

0

23

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

24

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

25

Echo 12312239330

SPRING, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

26

Echo 12310037330

REPAIR KIT

Note: INCLUDES ITEM 27-35

$15.99

$

In Stock, only 2 left!

0

27

------------------

DIAPHRAGM, METERING

$

$

Not available

28

------------------

GASKET, DIAPHRAGM

$

$

Not available

29

------------------

LEVER, METERING

$

$

Not available

30

------------------

PIN, METERING LEVER

$

$

Not available

31

------------------

VALVE, INLET NEEDLE

$

$

Not available

32

------------------

PLUG, WELCH

$

$

Not available

33

------------------

STRAINER

$

$

Not available

34

------------------

DIAPHRAGM, PUMP

$

$

Not available

35

------------------

GASKET, PUMP

$

$

Not available

36

Echo 12310110530

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEM 37-40

$7.49

$

In Stock, only 3 left!

0

37

------------------

DIAPHRAGM, METERING

$

$

Not available

38

------------------

GASKET, DIAPHRAGM

$

$

Not available

39

------------------

DIAPHRAGM, PUMP

$

$

Not available

40

------------------

GASKET, PUMP

$

$

Not available
