CS-370 - Echo Chainsaw (SN: 09001001 - 09999999) Chain Brake, Guide Bar, Saw Chain S/N: 09001001 - 09015540 Parts Diagram

Chainsaw

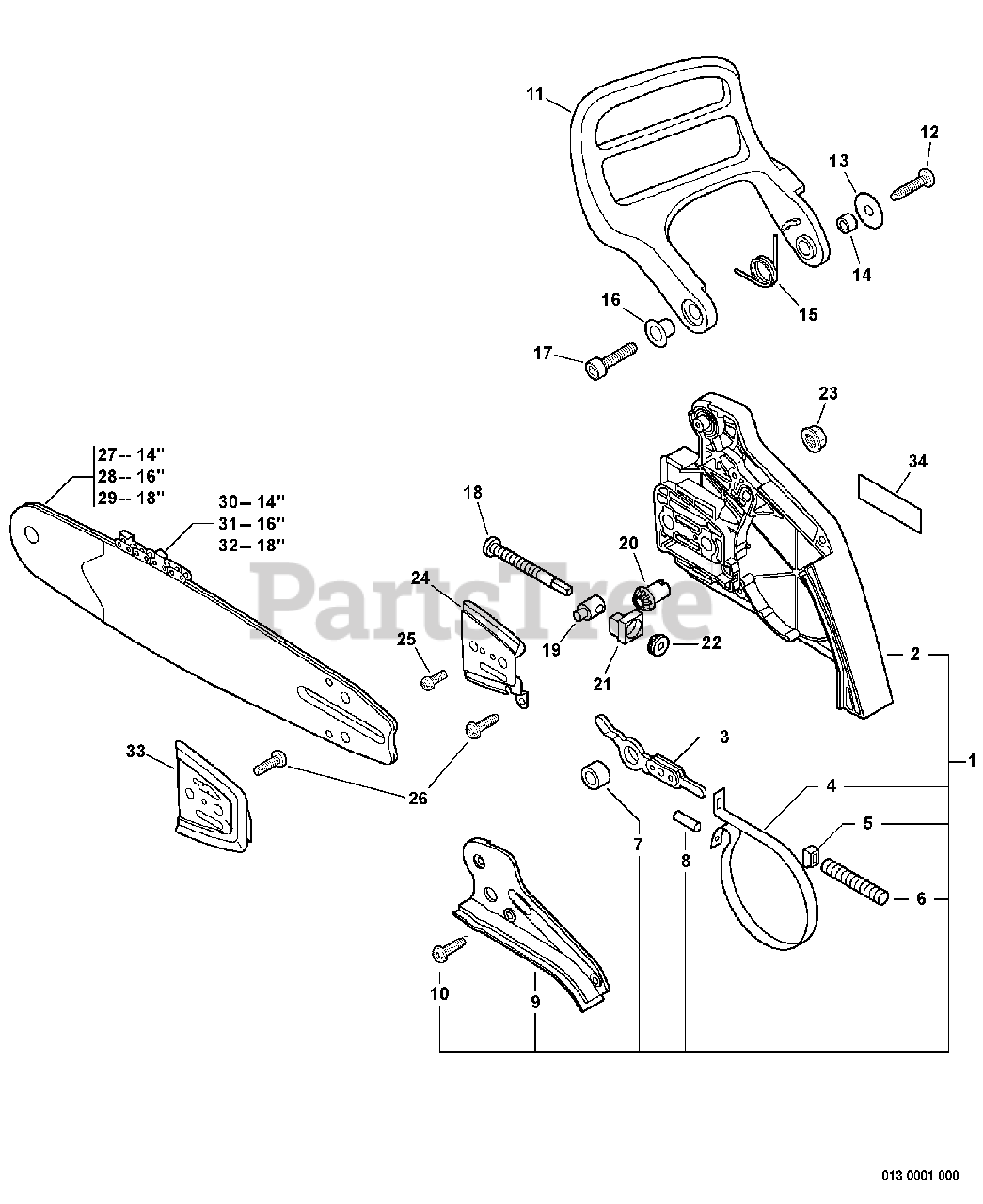

Chain Brake, Guide Bar, Saw Chain S/N: 09001001 - 09015540 Parts Diagram

  • Title
1

Echo C032000280

CHAIN BRAKE ASSY
(Superseded to C032000281)

Note: Includes ITEMS 2-10

$75.99

$

In Stock, Qty 8

0

2

Echo C300000310

GUARD, SPROCKET
(Superseded to C300000311)

$24.99

$

In Stock, Qty 6

0

3

Echo C334000090

CONNECTOR, BRAKE

$14.99

$

In Stock, only 3 left!

0

4

Echo C328000080

BAND, BRAKE

$6.99

$

In Stock, only 2 left!

0

5

$0.99

$

In Stock, Qty 20+

0

6

$2.49

$

In Stock, only 3 left!

0

7

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 2 left!

0

8

Echo 9305030098

PIN - SPRING

$0.99

$

In Stock, Qty 20+

0

9

Echo C345000210

COVER, BRAKE
(Superseded to C345000211)

$4.49

$

Usually ships in 2-4 days

0

10

Echo V202000060

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 15

0

11

Echo C320000480

LEVER, BRAKE

$31.99

$

In Stock, only 1 left!

0

12

Echo 90025304016

SCREW - 4X16

$0.99

$

In Stock, Qty 19

0

13

$0.99

$

In Stock, Qty 9

0

14

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 2 left!

0

15

$1.49

$

In Stock, Qty 12

0

16

Echo V356000300

COLLAR - 10

$1.99

$

In Stock, Qty 19

0

17

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, only 4 left!

0

18

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

19

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

20

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

21

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

22

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

23

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

24

Echo C305000011

PLATE, GUIDE - OUTER
(Superseded to C305000012)

$6.49

$

In Stock, Qty 14

0

25

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

26

Echo 90025304008

SCREW - 4X8

$0.99

$

In Stock, only 2 left!

0

27

Echo 14A0CD3752

GUIDE BAR - 14" (35cm)
(Superseded to 14A0CD3752C)

Note: GAUGE: .050"

$42.99

$

In Stock, Qty 19

0

28

Echo 16A0CD3757

GUIDE BAR - 16" (40cm)

Note: GAUGE: .050"

$46.99

$

In Stock, Qty 11

0

29

Echo 18A0CD3762

GUIDE BAR - 18" (45cm)

Note: GAUGE: .050"

$51.99

$

In Stock, Qty 9

0

30

Echo 91VG52CQ

SAW CHAIN - 14" (35cm)
(Superseded to 91PX52CQ)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

In Stock, Qty 9

0

31

Echo 91VG57CQ

SAW CHAIN - 16" (40cm)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

In Stock, Qty 16

0

32

Echo 91VG62CQ

SAW CHAIN - 18" (45cm)
(Superseded to 91PX62CQ)

Note: GAUGE: .050" / PITCH: .375"

$24.99

$

In Stock, Qty 15

0

33

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, only 2 left!

0

34

Echo X502000020

LABEL - ECHO

$2.49

$

In Stock, only 1 left!

0
