CS-361 P - Echo Chainsaw (SN: C51814001001 - C51814999999) Oil System Parts Diagram

Chainsaw

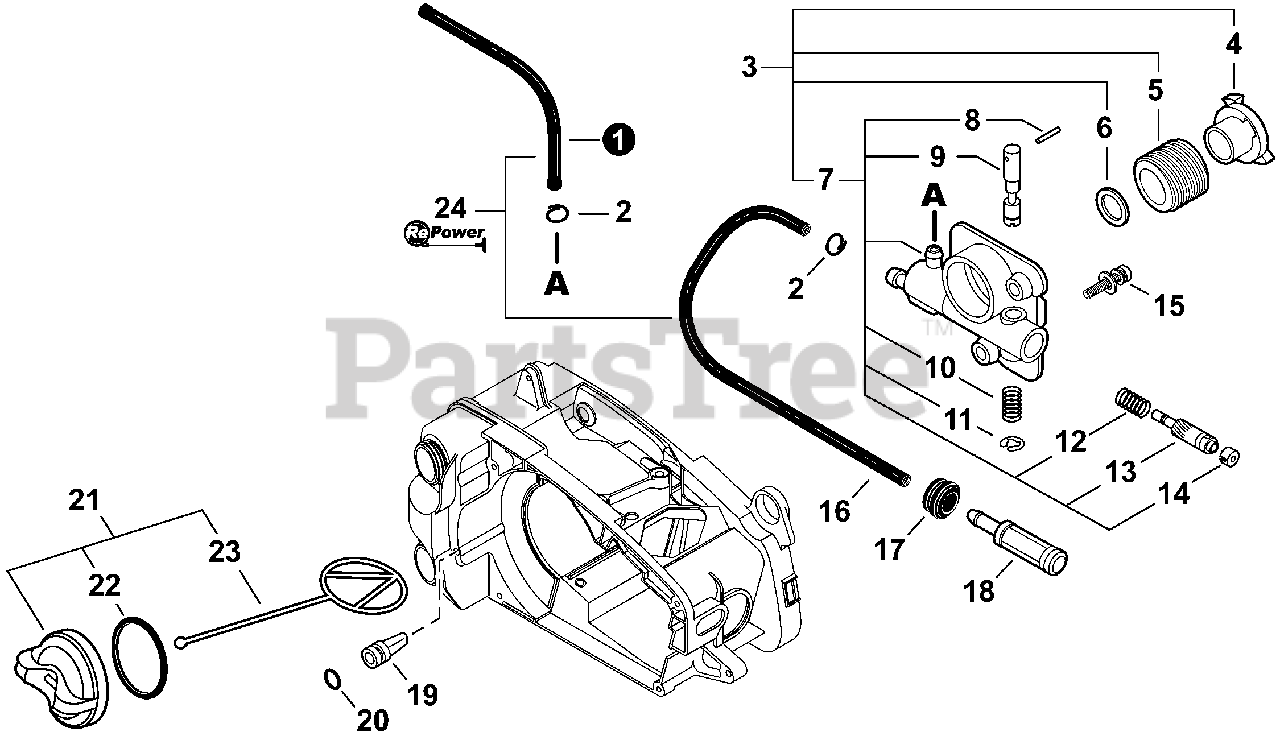

Oil System Parts Diagram

  • Title

1

Echo V471000760

PIPE 3×6×90mm
(Superseded to V471000761)

$1.49

$

In Stock, Qty 11

0

2

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

3

Echo P021010890

AUTO-OILER ASSY

Note: Includes ITEMS 4-14

$71.99

$

In Stock, Qty 10

0

4

Echo V356000290

COLLAR 10

$3.49

$

In Stock, only 2 left!

0

5

Echo V652000030

GEAR, WORM

$11.99

$

In Stock, only 1 left!

0

6

Echo V308000030

WASHER 10.5×17.4×1.8

$2.99

$

In Stock, only 1 left!

0

7

Echo C022000020

AUTO-OILER

Note: Includes ITEMS 8-14

$57.99

$

In Stock, only 1 left!

0

8

Echo P003002180

PIN, SPRING

$2.99

$

In Stock, only 1 left!

0

9

Echo P003001370

ADJUSTER, OILER

$19.99

$

Usually ships in 2-4 days

0

10

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

11

Echo 12312715030

E-RING

$0.99

$

In Stock, only 2 left!

0

12

Echo 43701938330

SPRING

$3.99

$

Usually ships in 2-4 days

0

13

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

14

Echo 43706238330

CAP, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

15

Echo 90023804012

SCREW 4×12

$0.99

$

In Stock, Qty 10

0

16

Echo V471000740

PIPE, OIL 3×6×160
(Superseded to V471000741)

$1.49

$

In Stock, only 3 left!

0

17

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

18

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

19

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

20

Echo 90072400004

O-RING S-4

$1.99

$

In Stock, only 3 left!

0

21

Echo P021005581

CAP ASSY, BLACK

Note: Includes ITEMS 22-23

$7.49

$

In Stock, Qty 20+

0

22

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

23

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

24

Echo 90015

PIPE, BULK - REPOWER 3×6mm BLACK

$40.99

$

In Stock, only 4 left!

0
