CS-361 P - Echo Chainsaw (SN: C51814001001 - C51814999999) Fuel System Parts Diagram

Chainsaw

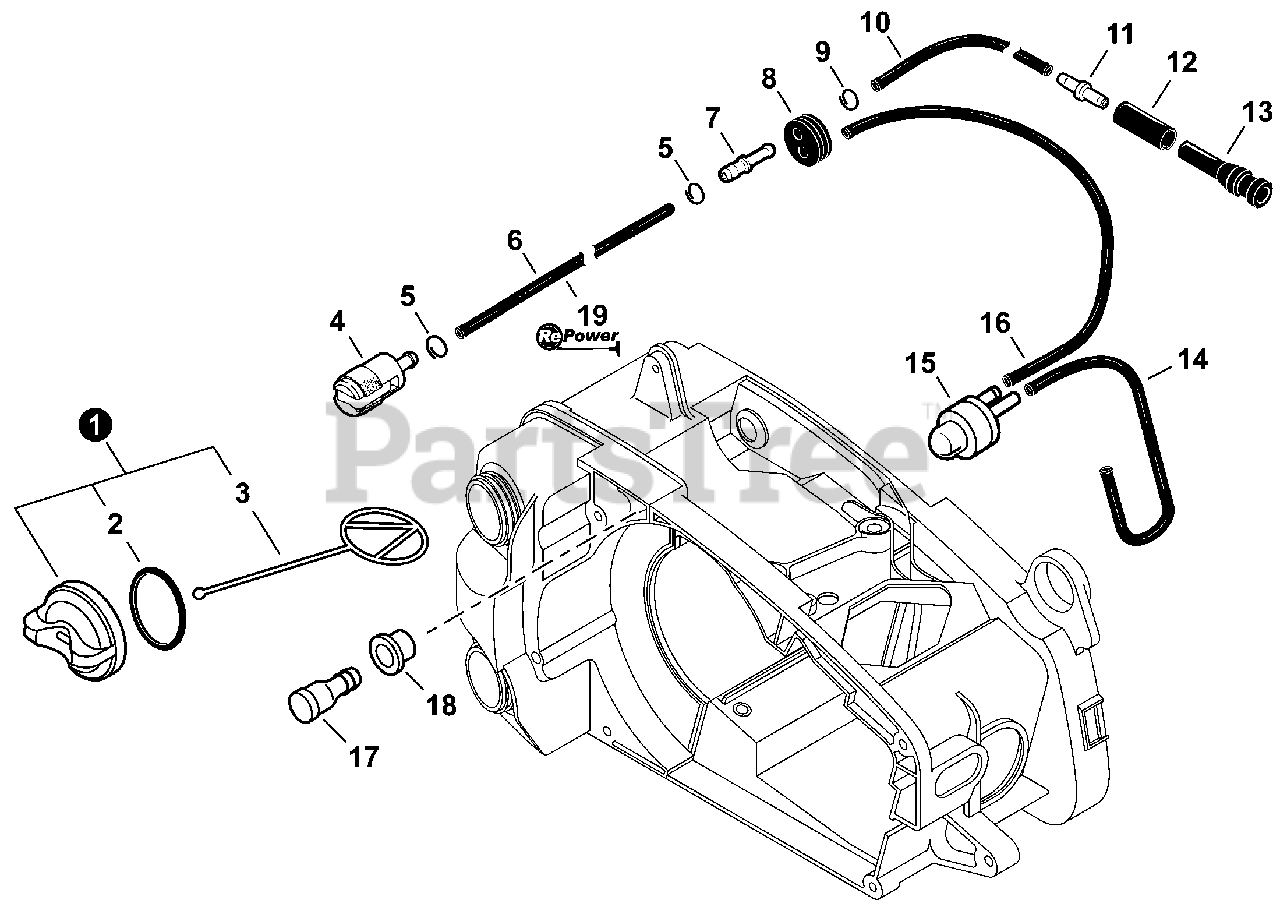

Fuel System Parts Diagram

  • Title

1

Echo P021038080

CAP ASSY, FUEL - ORANGE

Note: Includes ITEMS 2-3

$5.99

$

In Stock, only 4 left!

0

2

Echo V581000590

O-RING

$0.99

$

In Stock, Qty 20+

0

3

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

4

Echo A369000420

FILTER, FUEL

$8.99

$

In Stock, only 4 left!

0

5

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

6

Echo V471003820

PIPE, FUEL 3×5×95

$0.99

$

Usually ships in 2-4 days

0

7

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

9

Echo V490001271

CLIP 5

$0.99

$

In Stock, Qty 10

0

10

Echo V471004800

PIPE, FUEL 3×5×165
(Superseded to V471004801)

$4.49

$

Usually ships in 2-4 days

0

11

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

12

Echo V475007370

TUBE f6.5×8.5×18

$1.99

$

Usually ships in 2-4 days

0

13

Echo V470001940

PIPE, FUEL 10×6×32
(Superseded to V470001941)

$2.99

$

In Stock, only 2 left!

0

14

Echo V471001290

PIPE, FUEL 2.4×5×75

$2.49

$

Usually ships in 2-4 days

0

15

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

16

Echo V471001440

PIPE, FUEL 2.4×5×295

$5.49

$

Usually ships in 2-4 days

0

17

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

18

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

19

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$42.99

$

In Stock, Qty 13

0
