CS-360 TES - Echo Chainsaw (SN: 37001001 - 37999999) Recoil Starter Parts Diagram

Chainsaw

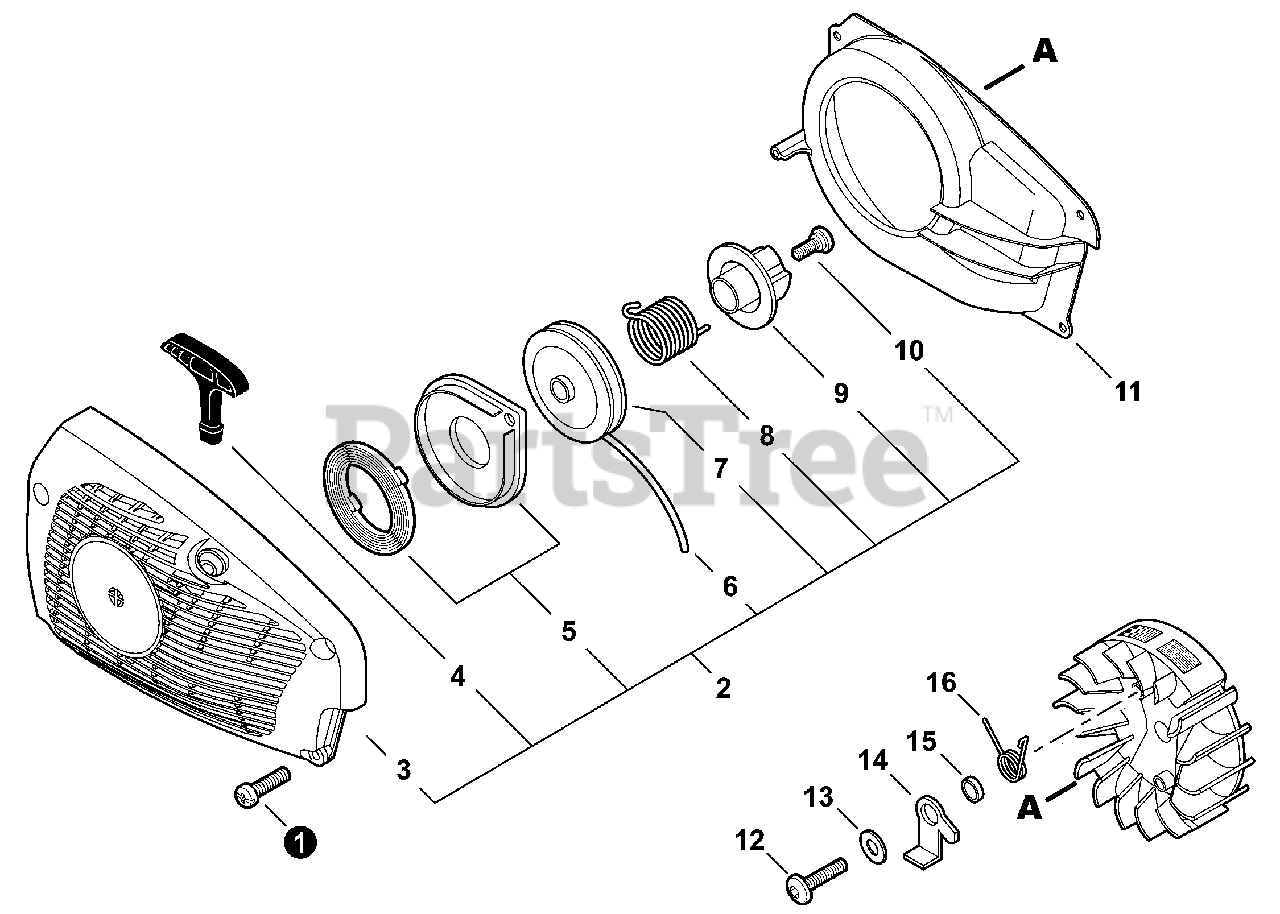

Recoil Starter Parts Diagram

  • Title

1

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

2

Echo A051002511

STARTER ASSY, RECOIL
(Superseded to A051002512)

Note: Includes ITEMS 3-10

$54.99

$

In Stock, only 1 left!

0

3

Echo P022037160

CASE, STARTER

$

$

Currently unavailable

4

Echo P022005891

GRIP, STARTER

$6.49

$

Usually ships in 2-4 days

0

5

Echo P022001330

SPRING KIT, RECOIL

$17.99

$

In Stock, Qty 12

0

6

Echo P022008440

ROPE, STARTER 3.5×900

$4.99

$

In Stock, only 1 left!

0

7

Echo P022036660

REEL, ROPE

$6.99

$

Usually ships in 2-4 days

0

8

Echo P022036670

SPRING, RETURN

$4.99

$

In Stock, only 1 left!

0

9

Echo P022036680

PLATE, CAM

$3.99

$

In Stock, only 2 left!

0

10

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

11

Echo A172002090

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

12

Echo V203000080

BOLT 5×14

$2.49

$

Usually ships in 2-4 days

0

13

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

14

Echo A514000270

PAWL

$3.49

$

Usually ships in 2-4 days

0

15

Echo 17724704630

SPACER 5.2×8×2.1

$1.99

$

In Stock, Qty 9

0

16

Echo 17723435430

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0
