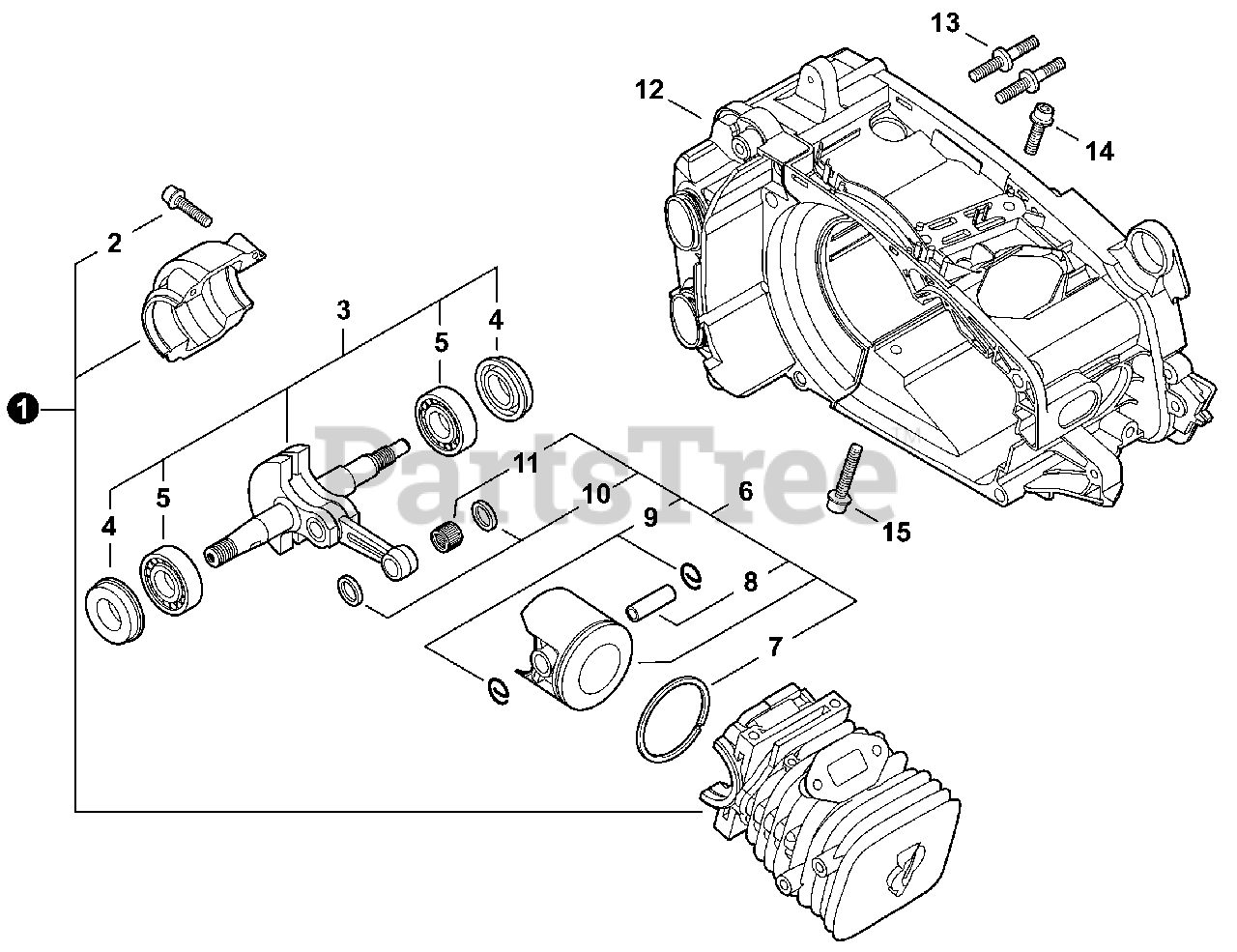

CS-360 TES - Echo Chainsaw (SN: 37001001 - 37999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

Echo P021045430

CRANKCASE SET

Note: Includes ITEM 2

$

$

Currently unavailable

2

Echo V805000210

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 17

0

3

Echo P021039160

CRANKSHAFT ASSY

Note: Includes ITEMS 4-5

$165.99

$

Usually ships in 2-4 days

0

4

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

5

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

6

Echo P021045440

PISTON KIT

Note: Includes ITEMS 7-11

$66.99

$

Usually ships in 2-4 days

0

7

Echo A101000670

RING, PISTON

$7.49

$

Usually ships in 2-4 days

0

8

Echo 10001315330

PIN, PISTON 5.5×8×29

$6.49

$

Usually ships in 2-4 days

0

9

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 7

0

10

Echo 10001460930

WASHER, THRUST

$4.99

$

Usually ships in 2-4 days

0

11

Echo V553000130

BEARING, NEEDLE 8

$13.99

$

Usually ships in 2-4 days

0

12

Echo A190001154

COVER, ENGINE
(Superseded to A190001155)

$66.99

$

Usually ships in 2-4 days

0

13

Echo V225000262

STUD, GUIDE BAR

$3.99

$

In Stock, only 2 left!

0

14

Echo V805000210

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 17

0

15

Echo V805000180

BOLT, TORX 5×30

$1.49

$

In Stock, Qty 5

0
