CS-360 T - Echo Chainsaw (SN: C04412001001 - C04412999999) Fuel System, Auto-Oiler S/N: C04412009101 - C04412999999 Parts Diagram

Chainsaw

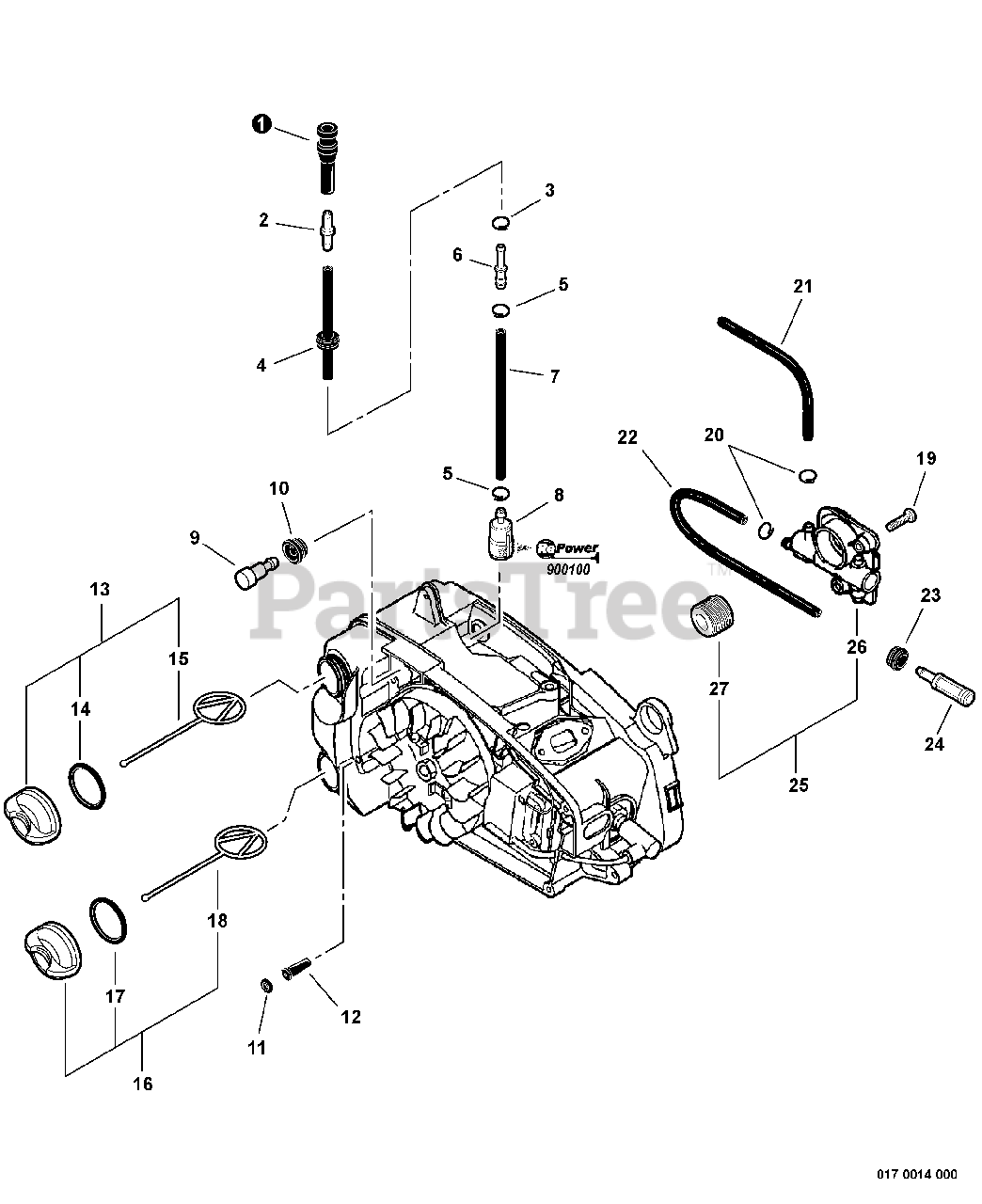

Fuel System, Auto-Oiler S/N: C04412009101 - C04412999999 Parts Diagram

  • Title
1

Echo V470000691

PIPE - FUEL

$2.99

$

In Stock, Qty 17

0

2

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, only 4 left!

0

3

Echo V490001271

CLIP - 5

$0.99

$

In Stock, only 3 left!

0

4

Echo V470000712

FUEL PIPE ASSY
(Superseded to V470000714)

$7.49

$

In Stock, only 1 left!

0

5

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 15

0

6

Echo V186000520

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

7

Echo V471003820

PIPE - 3X5X95 -- BLACK

Note: RePower BULK OPTION: 90014

$0.99

$

Usually ships in 2-4 days

0

8

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

Note: Included In RePower KIT

$8.99

$

In Stock, Qty 20+

0

9

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

10

Echo V137000000

GROMMET
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

11

Echo 90072400004

O-RING - 4

$1.99

$

In Stock, only 3 left!

0

12

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

13

Echo P021038080

CAP ASSY - ORANGE

Note: Includes ITEMS 11-12

$5.99

$

In Stock, only 4 left!

0

14

Echo V581000590

O-RING - 18

$0.99

$

In Stock, Qty 20+

0

15

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

16

Echo P021005581

CAP ASSY - BLACK

Note: Includes ITEMS 14-15

$7.49

$

In Stock, Qty 20+

0

17

Echo 90072000018

O-RING - 18

$1.99

$

In Stock, Qty 20+

0

18

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

19

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 10

0

20

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

21

Echo V471000760

PIPE - 3X6X90 -- BLACK
(Superseded to V471000761)

Note: RePower BULK OPTION: 90015

$1.49

$

In Stock, Qty 11

0

22

Echo 13011005260

PIPE - 3X5X195 -- BLACK
(Superseded to 13011005261)

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 7

0

23

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

24

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

25

Echo P021001980

AUTO-OILER ASSY

Note: Includes ITEMS 23-24

$67.99

$

In Stock, only 2 left!

0

26

Echo C022000000

AUTO-OILER ASSY

$57.99

$

In Stock, Qty 6

0

27

Echo V652000010

GEAR - WORM

$11.99

$

Usually ships in 2-4 days

0

28

Echo 900100

RePower TUNE-UP KIT
(Superseded to 90159)

$27.99

$

In Stock, Qty 6

0

28

Echo 900100C

RePower TUNE-UP KIT
(Superseded to 90159)

Note: CANADA MODELS

$27.99

$

In Stock, Qty 6

0
