CS-355 T - Echo Chainsaw (SN: C67415001001 - C67415999999) Fuel System Parts Diagram

Chainsaw

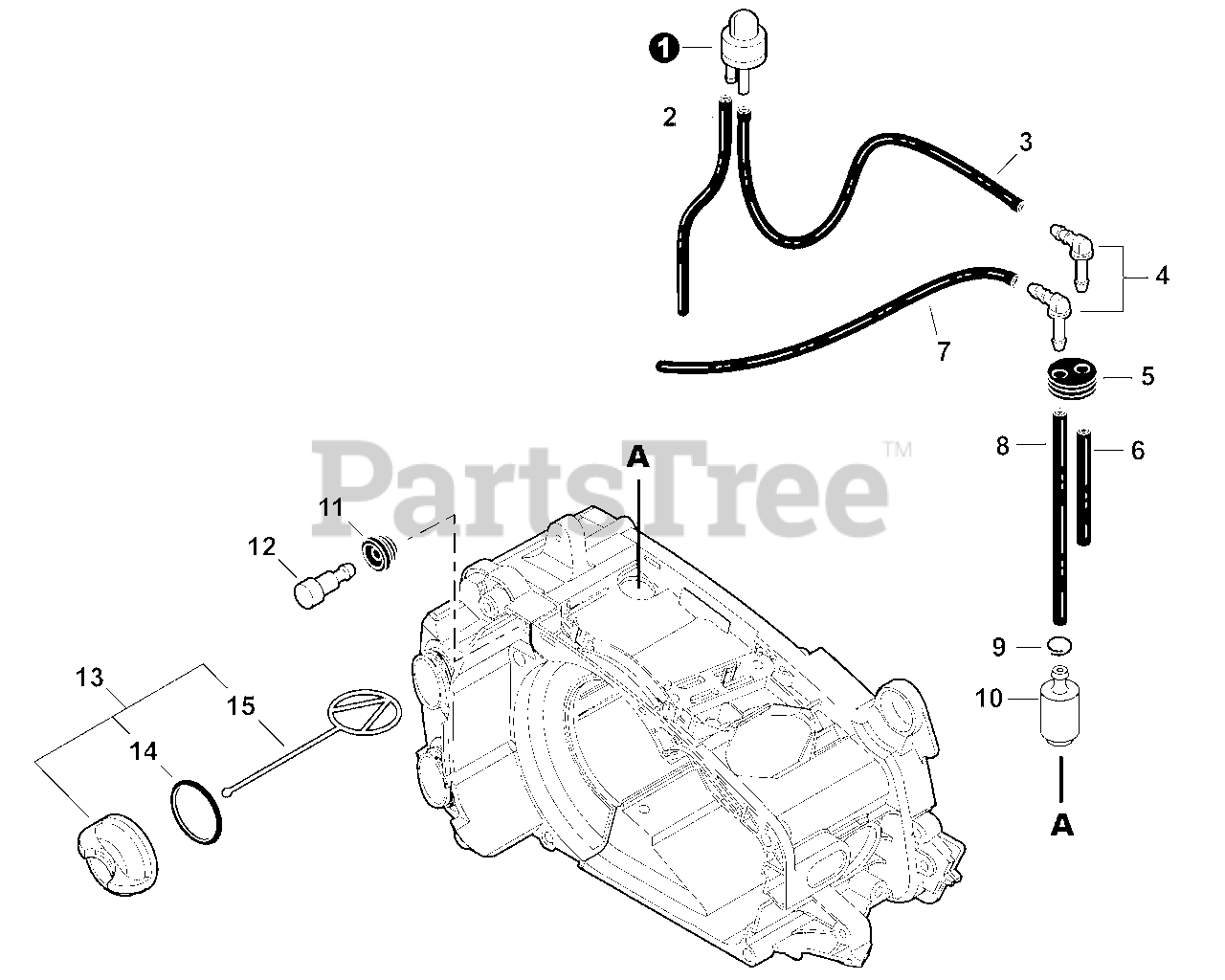

Fuel System Parts Diagram

  • Title

1

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

2

Echo V471003400

PIPE 2.4×5×180 - BLACK

$3.49

$

Usually ships in 2-4 days

0

3

Echo V471003380

PIPE 2.4×5×400 - BLACK
(Superseded to V471003381)

$6.49

$

Usually ships in 2-4 days

0

4

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 16

0

5

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

6

Echo V471003390

PIPE 2.4×5×15 - BLACK

$3.49

$

Usually ships in 2-4 days

0

7

Echo V471004150

PIPE 3×5×265 - BLACK
(Superseded to V471004151)

$11.99

$

Usually ships in 2-4 days

0

8

Echo V471002290

PIPE 3×5×140 - BLACK

$2.99

$

Usually ships in 2-4 days

0

9

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

10

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

11

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

12

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

13

Echo P021038080

CAP ASSY, FUEL - ORANGE

Note: Includes Items 14-15

$5.99

$

In Stock, only 4 left!

0

14

Echo V581000590

O-RING

$0.99

$

In Stock, Qty 20+

0

15

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
