CS-355 T - Echo Chainsaw (SN: C23512001001 - C23512999999) Recoil Starter Parts Diagram

Chainsaw

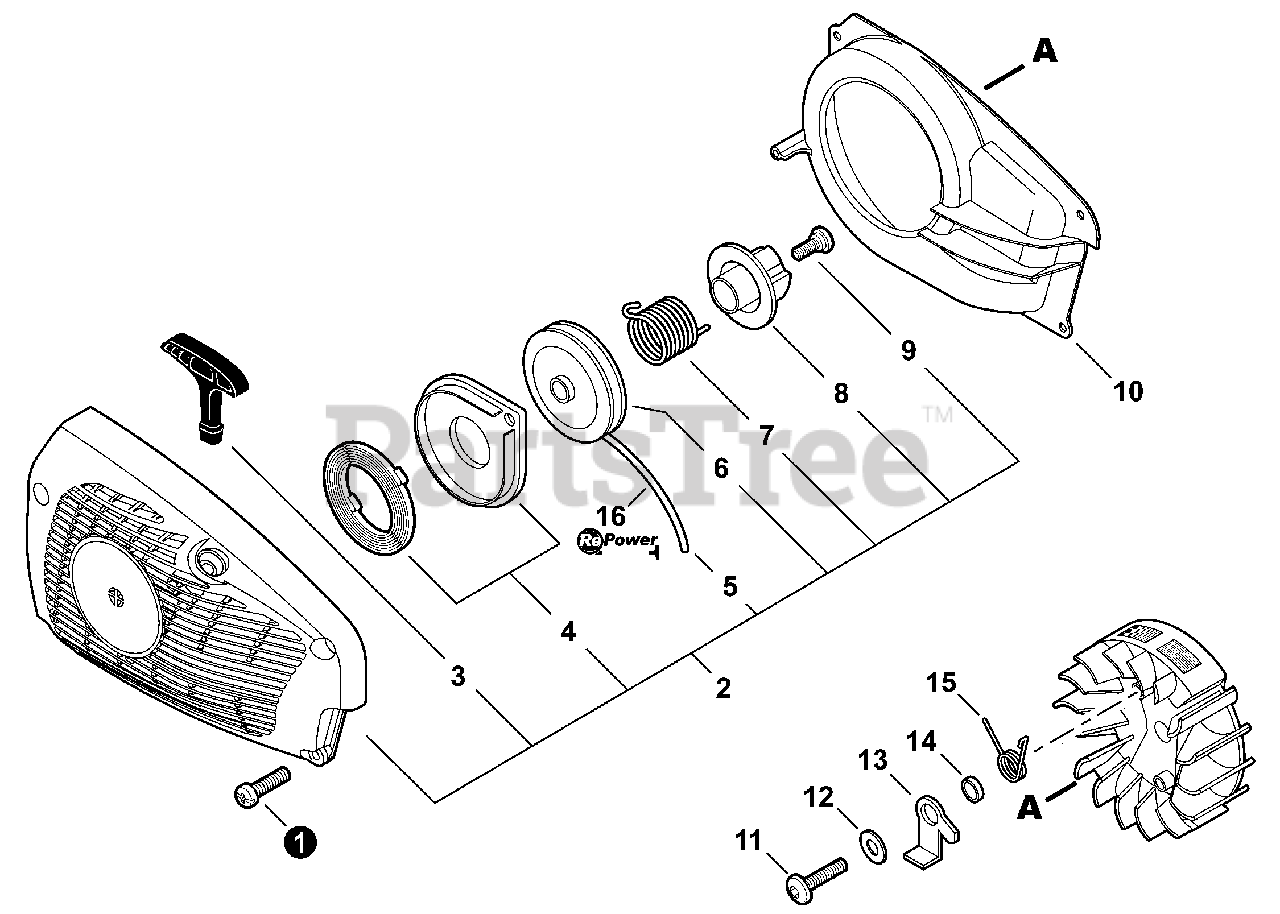

Recoil Starter Parts Diagram

  • Title

1

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

2

Echo A051002511

STARTER ASSY, RECOIL
(Superseded to A051002512)

Note: Includes Items 3-9

$54.99

$

In Stock, only 1 left!

0

3

Echo P022005891

GRIP, STARTER

$6.49

$

In Stock, only 1 left!

0

4

Echo P022001330

SPRING KIT, RECOIL

$17.99

$

In Stock, Qty 12

0

5

Echo P022008440

ROPE, STARTER 3.5×900

$4.99

$

In Stock, only 1 left!

0

6

Echo A506000470

REEL, ROPE
(Superseded to P022036660)

$6.99

$

Usually ships in 2-4 days

0

7

Echo V452001390

SPRING, RETURN
(Superseded to P022036670)

$4.99

$

In Stock, only 1 left!

0

8

Echo A507000130

PLATE, CAM
(Superseded to P022036680)

$3.99

$

In Stock, only 2 left!

0

9

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

10

Echo A172002091

COVER, FAN

$11.99

$

Usually ships in 2-4 days

0

11

Echo V203000080

BOLT 5×14

$2.49

$

Usually ships in 2-4 days

0

12

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo A514000270

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

14

Echo 17724704630

SPACER 5.2×8×2.1

$1.99

$

In Stock, Qty 9

0

15

Echo 17723435430

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

16

Echo 99944445000

ROPE, STARTER - REPOWER BULK

$32.99

$

In Stock, only 1 left!

0
