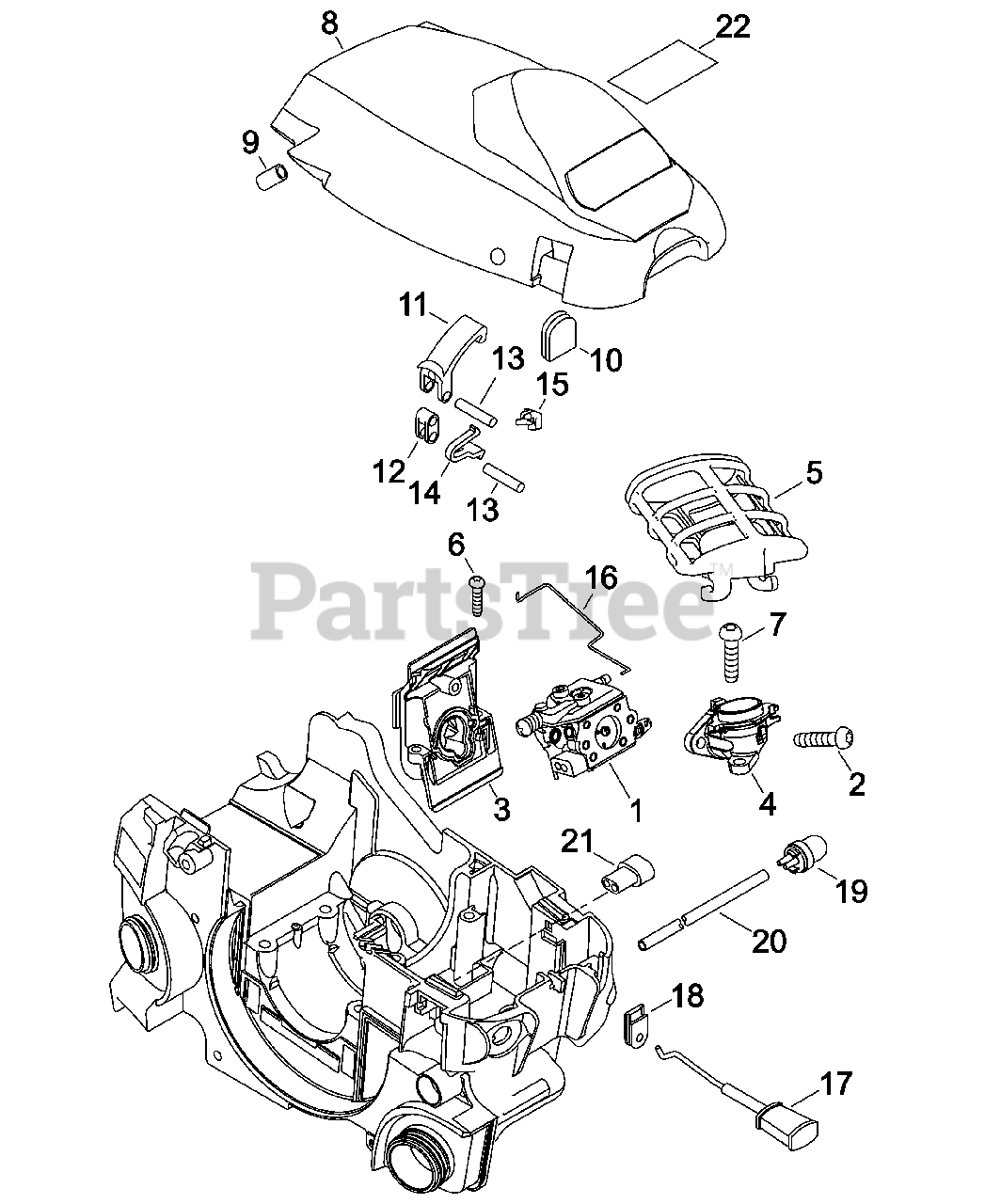

CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Intake Parts Diagram

Chainsaw

Intake Parts Diagram

  • Title

1

Echo A021004300

CARBURETOR WT-1110

$117.99

$

Usually ships in 2-4 days

0

2

Echo V805000040

BOLT, TORX 5×55

$1.49

$

In Stock, Qty 14

0

3

Echo A200000353

INSULATOR, INTAKE

$13.99

$

Usually ships in 2-4 days

0

4

Echo A204000211

BRACKET, AIR FILTER

$5.49

$

Usually ships in 2-4 days

0

5

Echo A226001420

FILTER ASSY, AIR

$20.99

$

In Stock, Qty 7

0

6

Echo V805000010

BOLT, TORX 5×20

$0.99

$

Usually ships in 2-4 days

0

7

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

8

Echo A160002800

COVER, ENGINE

$30.99

$

Usually ships in 2-4 days

0

9

Echo 10092735830

BUSHING 3×7×10

$1.99

$

Usually ships in 2-4 days

0

10

Echo 13033832430

GROMMET

$1.49

$

In Stock, Qty 15

0

11

Echo C463000030

LATCH, ENGINE COVER

$1.99

$

In Stock, only 3 left!

0

12

Echo J485000200

HINGE

$7.99

$

Usually ships in 2-4 days

0

13

Echo V622000070

PIN 4×17.8

$1.49

$

In Stock, only 4 left!

0

14

Echo V490000400

CLIP

$1.99

$

In Stock, only 1 left!

0

15

Echo C617000500

STOPPER

$1.49

$

Usually ships in 2-4 days

0

16

Echo C454000160

ROD, THROTTLE

$6.99

$

In Stock, only 1 left!

0

17

Echo A241000150

ROD, CHOKE

$6.49

$

In Stock, only 1 left!

0

18

Echo V130000010

GROMMET, CHOKE

$1.99

$

Usually ships in 2-4 days

0

19

Echo 12318139130

BULB, PURGE

$7.49

$

In Stock, Qty 20+

0

20

Echo V471001280

PIPE 2.4×5×150 BLACK
(Superseded to V471001281)

$3.99

$

In Stock, only 1 left!

0

21

Echo V131000210

GROMMET, NEEDLE

$1.49

$

Usually ships in 2-4 days

0

22

Echo X503012160

LABEL, MODEL

$2.49

$

Usually ships in 2-4 days

0
