CS-353 ES - Echo Chainsaw (SN: C31926001001 - C31926999999) Engine Cover, Fuel, Oil Parts Diagram

Chainsaw

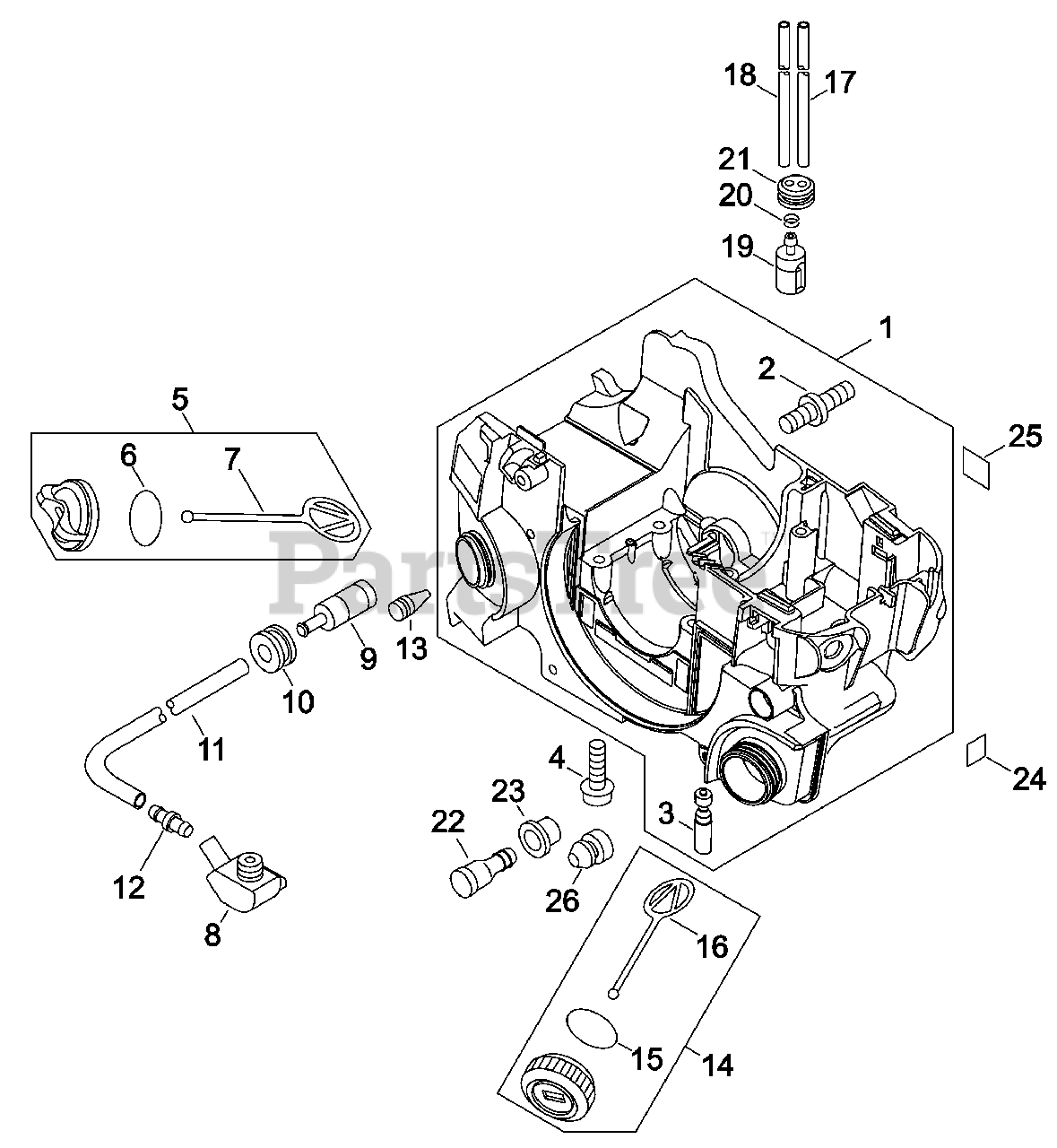

Engine Cover, Fuel, Oil Parts Diagram

  • Title
1

Echo P021036937

COVER ASSY, ENGINE
(Superseded to P021049020)

Note: Includes items 2-3

$103.99

$

Usually ships in 2-4 days

0

2

Echo V225000370

BOLT, STUD 8
(Superseded to V225000031)

$2.99

$

In Stock, Qty 20+

0

3

Echo C022000072

AUTO-OILER ASSY
(Superseded to C022000190)

$

$

Not available

4

Echo V805000180

BOLT, TORX 5×30

$1.49

$

In Stock, Qty 5

0

5

Echo P021005581

CAP ASSY, OIL

Note: Includes items 6-7

$7.49

$

In Stock, Qty 20+

0

6

Echo 90072000018

O-RING 18

$1.99

$

In Stock, Qty 20+

0

7

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

8

Echo V470000810

GROMMET, OIL

$3.49

$

In Stock, Qty 10

0

9

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

10

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

11

Echo 13011005260

PIPE 3×6×185mm BLACK
(Superseded to 13011005261)

$2.99

$

In Stock, only 3 left!

0

12

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, Qty 6

0

13

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, only 1 left!

0

14

Echo P021037920

CAP ASSY, FUEL

Note: Includes items 15-16

$10.99

$

In Stock, Qty 20+

0

15

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 9

0

16

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

17

Echo V471001560

PIPE, FUEL RETURN 2.4×5×80 BLACK
(Superseded to V471001561)

$1.99

$

In Stock, only 3 left!

0

18

Echo V471002170

PIPE, FUEL 3×5×230 BLACK

$4.49

$

In Stock, only 2 left!

0

19

Echo 13120514931

FILTER, FUEL
(Superseded to A369000470)

$8.99

$

In Stock, Qty 20+

0

20

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

21

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

22

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

23

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

24

Echo 89015739131

LABEL, ON-OFF

$2.49

$

Usually ships in 2-4 days

0

25

$2.49

$

Usually ships in 2-4 days

0

26

Echo V420001790

CUSHION

$7.49

$

In Stock, only 1 left!

0
