CS-3520 - Echo Chainsaw (SN: C93429001001 - C93429999999) Fuel System Parts Diagram

Chainsaw

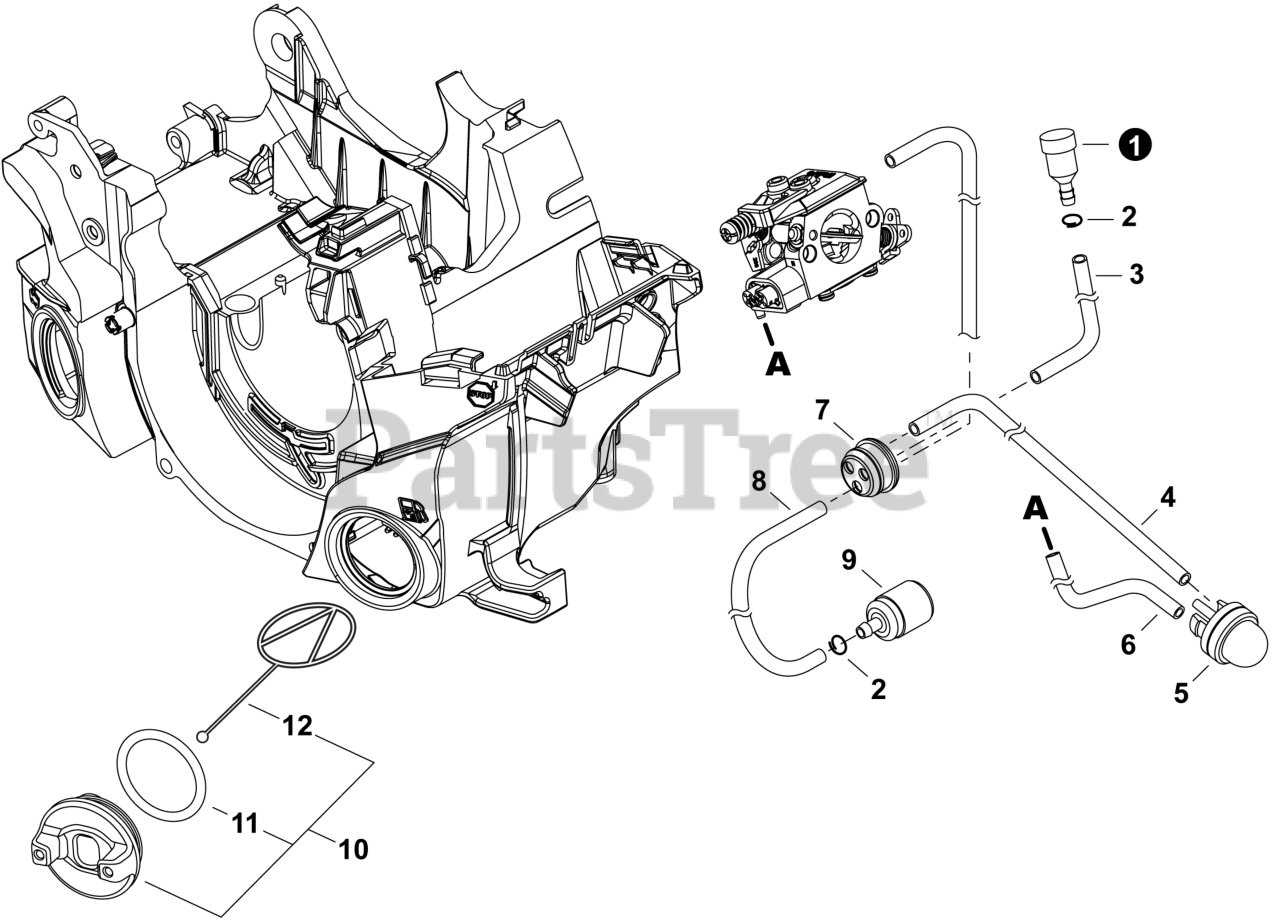

Fuel System Parts Diagram

  • Title
1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

$0.99

$

Usually ships in 2-4 days

0

3

Echo V471001201

PIPE, FUEL 3x5x70 BLACK

$1.99

$

In Stock, Qty 20+

0

4

Echo V471001241

PIPE, PURGE 2.4x5x140 BLACK

$3.49

$

In Stock, Qty 13

0

5

Echo A035000040

BULB, PURGE

$12.99

$

In Stock, only 1 left!

0

6

Echo V471001281

PIPE, FUEL 2.4x5x105 BLACK

$3.99

$

In Stock, only 1 left!

0

7

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 16

0

8

Echo V471001231

PIPE, FUEL 3x5x210 BLACK

$5.99

$

In Stock, only 4 left!

0

9

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

10

Echo P100009200

CAP ASSY, FUEL

Note: Includes items 11-12

$9.99

$

In Stock, only 1 left!

0

11

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

12

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0
