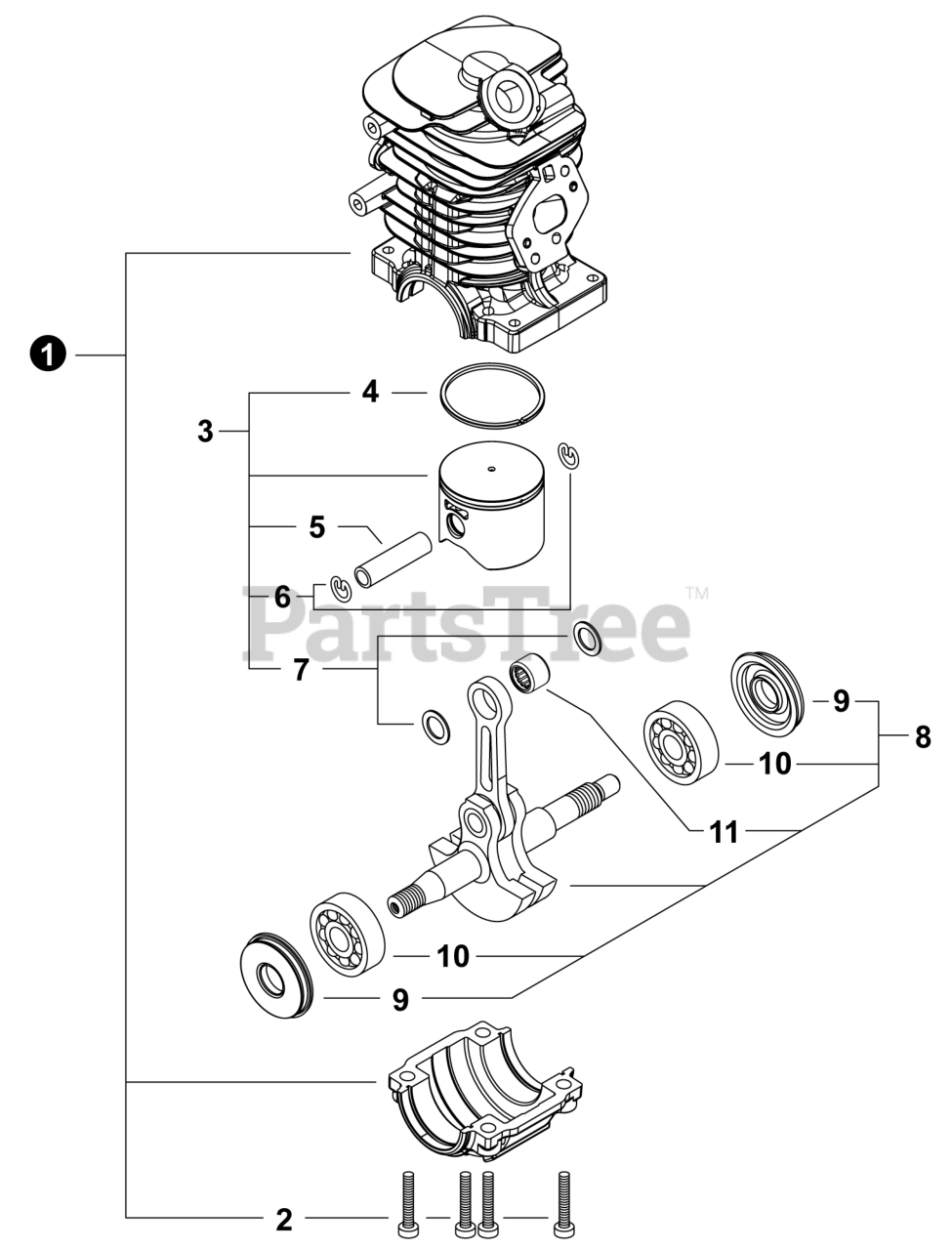

CS-3520 - Echo Chainsaw (SN: C93429001001 - C93429999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title
1

Echo P100011340

CYLINDER & CRANKCASE KIT

Note: Includes item 2

$75.99

$

Usually ships in 2-4 days

0

2

Echo V805000210

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 17

0

3

Echo P100011330

PISTON KIT

Note: Includes items 4-7

$38.99

$

Usually ships in 2-4 days

0

4

RING, PISTON

$

$

Not available

5

PIN, PISTON 9

$

$

Not available

6

RING, SNAP

$

$

Not available

7

WASHER, THRUST

$

$

Not available

8

Echo P100011650

CRANKSHAFT ASSY

Note: Includes items 9-11

$92.99

$

Usually ships in 2-4 days

0

9

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

10

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

11

Echo V554000030

BEARING, NEEDLE 9

$7.99

$

Usually ships in 2-4 days

0
