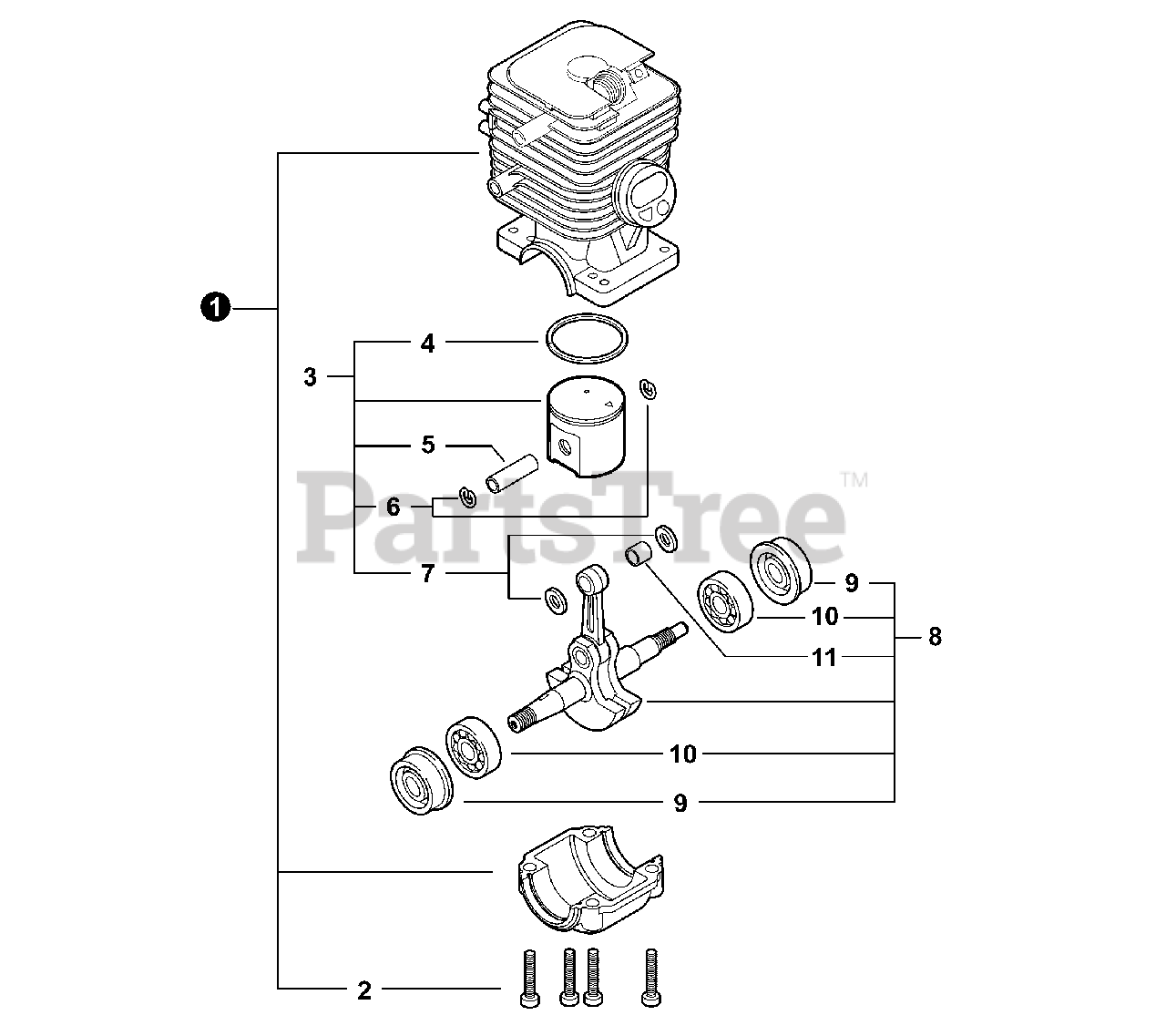

CS-352 - Echo Chainsaw (SN: C19813001001 - C19813999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title
1

Echo P021035190

CRANKCASE KIT

Note: Includes Item 2

$148.99

$

Usually ships in 2-4 days

0

2

Echo V805000220

BOLT, TORX 5×25

$1.49

$

In Stock, only 1 left!

0

3

Echo P021035201

PISTON KIT

Note: Includes Items 4-7

$84.99

$

Usually ships in 2-4 days

0

4

Echo A101000580

RING, PISTON

$6.49

$

Usually ships in 2-4 days

0

5

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

6

Echo 10001504630

RING, SNAP

$0.99

$

In Stock, Qty 7

0

7

Echo 10001411520

WASHER, THRUST 8.2×13×0.5

$3.49

$

In Stock, only 3 left!

0

8

Echo P021015072

CRANKSHAFT ASSY

Note: Includes Items 9-11

$181.99

$

Usually ships in 2-4 days

0

9

Echo V505000011

SEAL, OIL 12

$7.99

$

In Stock, Qty 20+

0

10

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

11

Echo V553000060

BEARING, NEEDLE 8

$10.99

$

Usually ships in 2-4 days

0
