CS-3510 - Echo Chainsaw (SN: C82015001001 - C82015999999) Fuel System Parts Diagram

Chainsaw

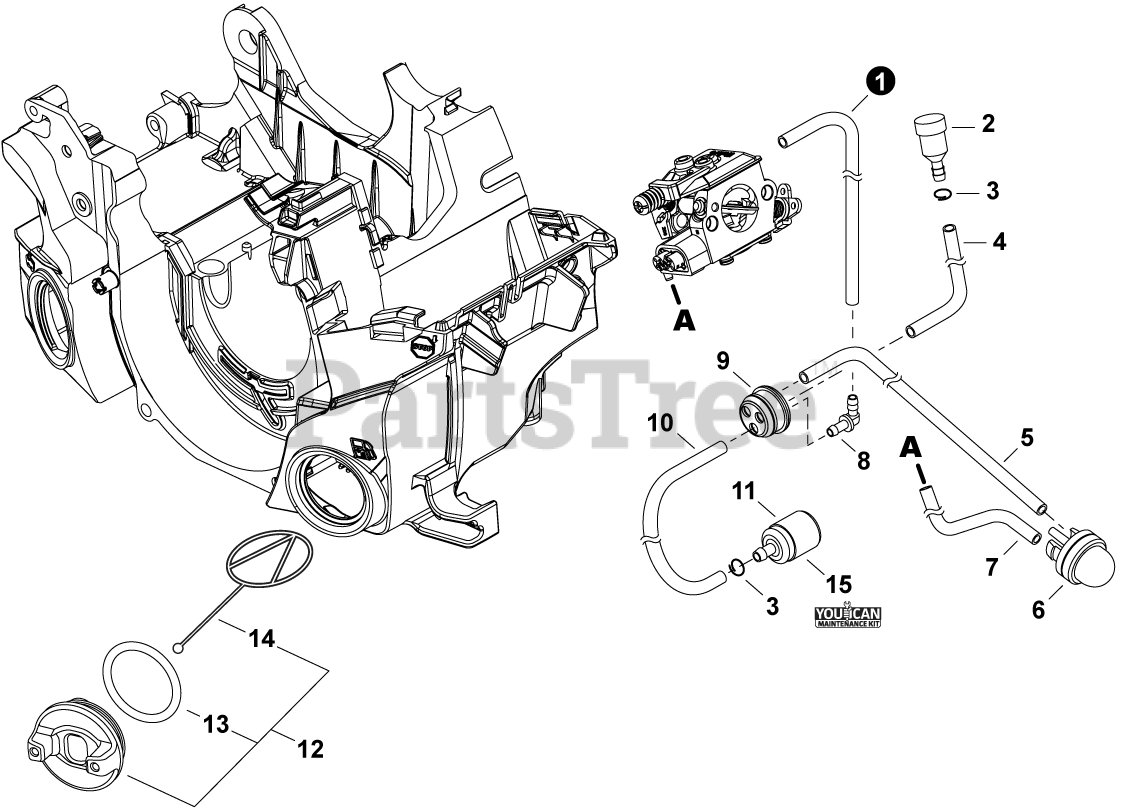

Fuel System Parts Diagram

  • Title

1

Echo V471003872

PIPE, FUEL 3×5×85 BLACK

$2.49

$

In Stock, only 2 left!

0

2

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 12

0

4

Echo V471001201

PIPE, FUEL 3×5×70 BLACK

$1.99

$

In Stock, Qty 20+

0

5

Echo V471001241

PIPE, PURGE 2.5×5×140

$3.49

$

In Stock, Qty 13

0

6

Echo A035000040

BULB, PURGE

$12.99

$

In Stock, only 2 left!

0

7

Echo V471001281

PIPE 2.4×5×105 BLACK

$3.99

$

In Stock, only 1 left!

0

8

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 20+

0

9

Echo 13211546730

GROMMET, FUEL Ø5

$1.99

$

In Stock, Qty 20+

0

10

Echo V471000601

PIPE, FUEL 3×5×120 BLACK

$0.99

$

In Stock, only 3 left!

0

11

Echo A369000470

FILTER, FUEL

Note: Included in Tune-up kit

$8.99

$

In Stock, Qty 20+

0

12

Echo P100009200

CAP ASSY, FUEL

Note: Includes items 13-14

$9.99

$

In Stock, only 1 left!

0

13

Echo V581000600

O-RING 29

$2.49

$

In Stock, only 2 left!

0

14

Echo A365000050

FUEL CAP CONNECTOR (L=60MM)

$2.49

$

In Stock, Qty 20+

0

15

Echo 90200Y

TUNE-UP KIT - YOUCANT

Note: See Maintenance Kits

$21.99

$

In Stock, only 1 left!

0
