CS-350 TES - Echo Chainsaw (SN: C24126001001 - C24126999999) Engine, Engine Housing Parts Diagram

Chainsaw

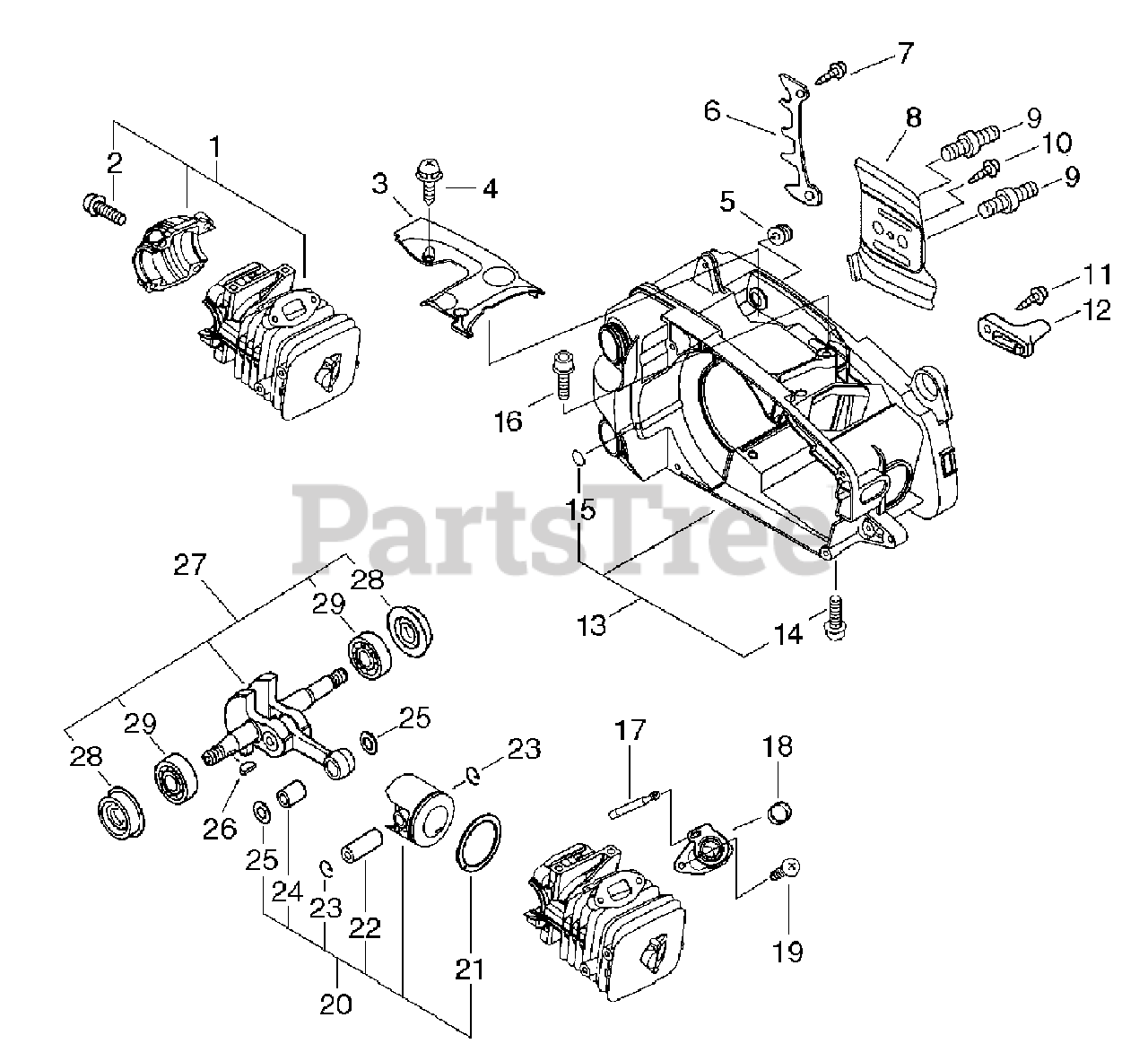

Engine, Engine Housing Parts Diagram

  • Title

1

Echo P021009250

CRANKCASE SET

$178.99

$

Usually ships in 2-4 days

0

1

Echo P021009250

CRANKCASE SET

$178.99

$

Usually ships in 2-4 days

0

2

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

2

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

3

Echo A127000050

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

3

Echo A127000050

COVER, DUST

$2.99

$

Usually ships in 2-4 days

0

4

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

4

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 12

0

5

Echo 16391130130

PLUG

$1.99

$

Usually ships in 2-4 days

0

5

Echo 16391130130

PLUG

$1.99

$

Usually ships in 2-4 days

0

6

Echo C304000000

SPIKE

$4.49

$

In Stock, Qty 5

0

6

Echo C304000000

SPIKE

$4.49

$

In Stock, Qty 5

0

7

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

7

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

8

Echo C305000080

PLATE, GUIDE - INNER

$6.99

$

Usually ships in 2-4 days

0

8

Echo C305000080

PLATE, GUIDE - INNER

$6.99

$

Usually ships in 2-4 days

0

9

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 20+

0

9

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 20+

0

10

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

10

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

11

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

11

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

12

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 18

0

12

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 18

0

13

Echo P021008678

ENGINE COVER KIT
(Superseded to P021008679)

$94.99

$

Usually ships in 2-4 days

0

13

Echo P021008678

ENGINE COVER KIT
(Superseded to P021008679)

$94.99

$

Usually ships in 2-4 days

0

14

Echo 90010605030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

14

Echo 90010605030

SCREW - 5X30

$0.99

$

In Stock, Qty 5

0

15

Echo 90072400004

O-RING - 4

$1.99

$

In Stock, only 3 left!

0

15

Echo 90072400004

O-RING - 4

$1.99

$

In Stock, only 3 left!

0

16

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

16

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

17

Echo V470000482

PIPE - 3X7X65 -- BLACK

$8.49

$

In Stock, only 1 left!

0

17

Echo V470000482

PIPE - 3X7X65 -- BLACK

$8.49

$

In Stock, only 1 left!

0

18

Echo V359000060

COLLAR - 16

$2.99

$

Usually ships in 2-4 days

0

18

Echo V359000060

COLLAR - 16

$2.99

$

Usually ships in 2-4 days

0

19

Echo 9142005012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

19

Echo 9142005012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

20

Echo P021009230

PISTON KIT

$65.99

$

Usually ships in 2-4 days

0

20

Echo P021009230

PISTON KIT

$65.99

$

Usually ships in 2-4 days

0

21

Echo A101000120

RING, PISTON

$5.49

$

Usually ships in 2-4 days

0

21

Echo A101000120

RING, PISTON

$5.49

$

Usually ships in 2-4 days

0

22

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

22

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

23

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

23

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

24

Echo V553000040

BEARING, NEEDLE - 8

$9.49

$

Usually ships in 2-4 days

0

24

Echo V553000040

BEARING, NEEDLE - 8

$9.49

$

Usually ships in 2-4 days

0

25

Echo 10001460930

SPACER, PISTON

$4.99

$

Usually ships in 2-4 days

0

25

Echo 10001460930

SPACER, PISTON

$4.99

$

Usually ships in 2-4 days

0

26

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

26

Echo 10014212330

KEY

$1.99

$

In Stock, Qty 15

0

27

Echo P021010703

CRANKSHAFT ASSY

$191.99

$

Usually ships in 2-4 days

0

27

Echo P021010703

CRANKSHAFT ASSY

$191.99

$

Usually ships in 2-4 days

0

28

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, only 3 left!

0

28

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, only 3 left!

0

29

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

29

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0
