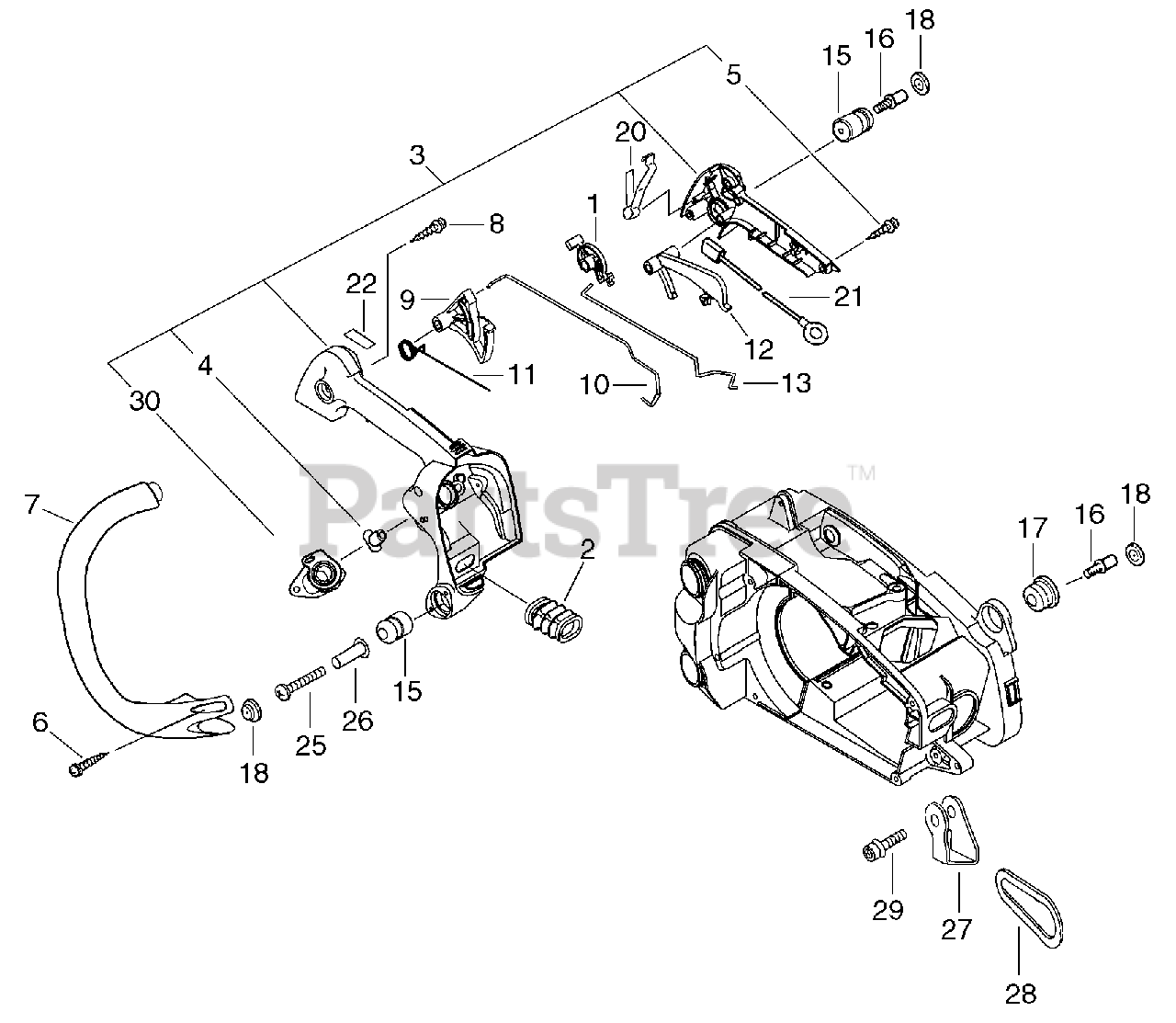

CS-350 TES - Echo Chainsaw (Original Version) Handle Parts Diagram

Chainsaw

Handle Parts Diagram

  • Title

1

Echo A253000043

LEVER, CONTROL

$2.99

$

In Stock, Qty 20+

0

2

Echo A239000000

PIPE - INTAKE

$3.99

$

Usually ships in 2-4 days

0

3

Echo P021011510

HANDLE - REAR

$67.99

$

Usually ships in 2-4 days

0

30

Echo A202000033

BELLOWS, INTAKE

$20.99

$

Usually ships in 2-4 days

0

4

Echo 13002033330

T-NUT

$3.49

$

In Stock, Qty 5

0

5

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

6

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

7

Echo C400000160

HANDLE - FRONT

$44.99

$

Usually ships in 2-4 days

0

8

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

9

Echo C450000010

TRIGGER, THROTTLE

$4.49

$

In Stock, only 2 left!

0

10

Echo C454000070

ROD, THROTTLE

$8.49

$

Usually ships in 2-4 days

0

11

Echo V452000010

SPRING, TRIGGER

$1.49

$

In Stock, Qty 12

0

12

Echo C460000002

LOCKOUT, THROTTLE

$3.49

$

In Stock, Qty 8

0

13

Echo A240000010

ROD, CHOKE

$9.49

$

Usually ships in 2-4 days

0

15

Echo V400000070

CUSHION

$9.49

$

In Stock, Qty 20+

0

16

Echo V202000000

STUD, THREADED

$5.99

$

In Stock, Qty 15

0

17

Echo 10091018830

CUSHION
(Superseded to 10092139130)

$8.49

$

In Stock, only 2 left!

0

18

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 13

0

20

Echo V486000010

TERMINAL - GROUND

$3.99

$

Usually ships in 2-4 days

0

21

Echo V485000340

LEAD - GROUND

$2.49

$

Usually ships in 2-4 days

0

22

Echo X524000910

LABEL

$

$

Currently unavailable

25

Echo 9148104035

SCREW - 4X35 -- TAPPING

$0.99

$

In Stock, Qty 6

0

26

Echo V352000020

COLLAR

$2.99

$

In Stock, Qty 7

0

27

Echo C626000040

BRACKET, STRAP

$5.99

$

Usually ships in 2-4 days

0

28

Echo C646000040

HANGER KIT

$2.49

$

Usually ships in 2-4 days

0

29

Echo 90016204025

SCREW - 4X25

$1.49

$

In Stock, Qty 7

0
