CS-350 TES - Echo Chainsaw (Original Version) Carburetor Parts Diagram

Chainsaw

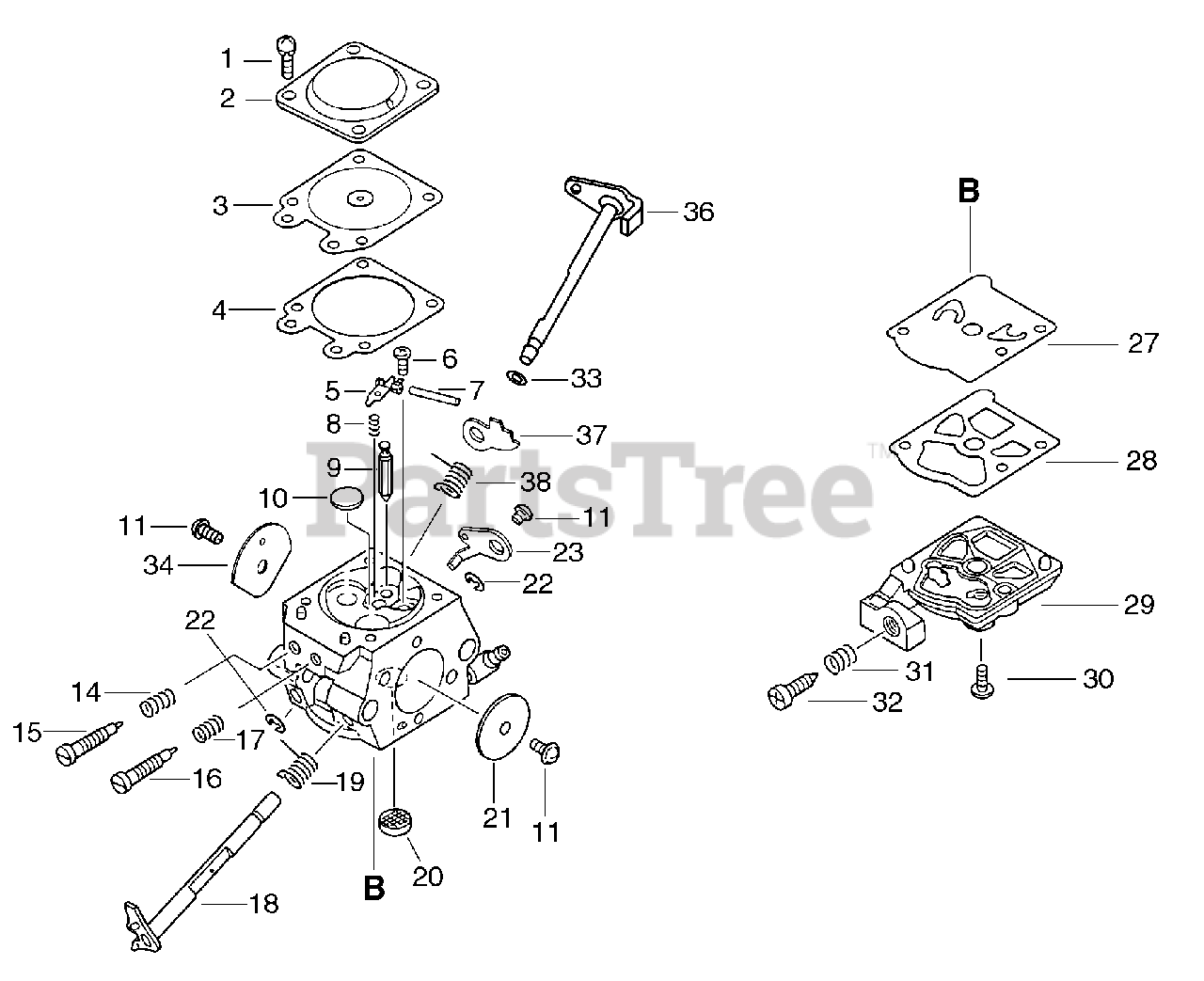

Carburetor Parts Diagram

  • Title

Echo A021001181

CARBURETOR
(Superseded to A021001182)

$130.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 6

0

4

Echo 12314027230

GASKET, METERING

$3.99

$

In Stock, only 1 left!

0

5

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

6

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

7

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

8

Echo 12312239830

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

9

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

10

Echo 12314610631

PLUG, WELCH

$1.49

$

Usually ships in 2-4 days

0

11

$1.49

$

In Stock, Qty 13

0

14

$2.99

$

Usually ships in 2-4 days

0

15

Echo P003001340

NEEDLE - HIGH SPEED

$8.49

$

Usually ships in 2-4 days

0

16

Echo P003001330

NEEDLE - LOW SPEED

$11.99

$

Usually ships in 2-4 days

0

17

$3.49

$

Usually ships in 2-4 days

0

18

Echo P003000480

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

19

Echo 12311337530

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

20

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

21

Echo 12311616130

VALVE, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

23

Echo P003000380

THROTTLE, LEVER

$1.99

$

In Stock, only 1 left!

0

27

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

28

Echo 12312515030

GASKET, PUMP

$2.49

$

In Stock, Qty 9

0

29

Echo 12312424430

COVER, PUMP

$5.49

$

In Stock, only 1 left!

0

30

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

31

Echo 12313304260

SPRING, IDLE ADJUST

$6.49

$

In Stock, Qty 16

0

32

Echo 12313404260

SCREW, IDLE ADJUST

$1.99

$

In Stock, Qty 11

0

33

$0.99

$

In Stock, only 1 left!

0

34

Echo 12313235430

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

36

Echo P003001140

SHAFT, CHOKE

$6.99

$

Usually ships in 2-4 days

0

37

Echo P003001510

LEVER - FAST IDLE
(Superseded to Discontinued)

$

$

Not available

38

$3.49

$

Usually ships in 2-4 days

0
