CS-346 - Echo Chainsaw (SN: 04001001 - 04999999) Engine, Short Block -- SB1069, Engine Cover Parts Diagram

Chainsaw

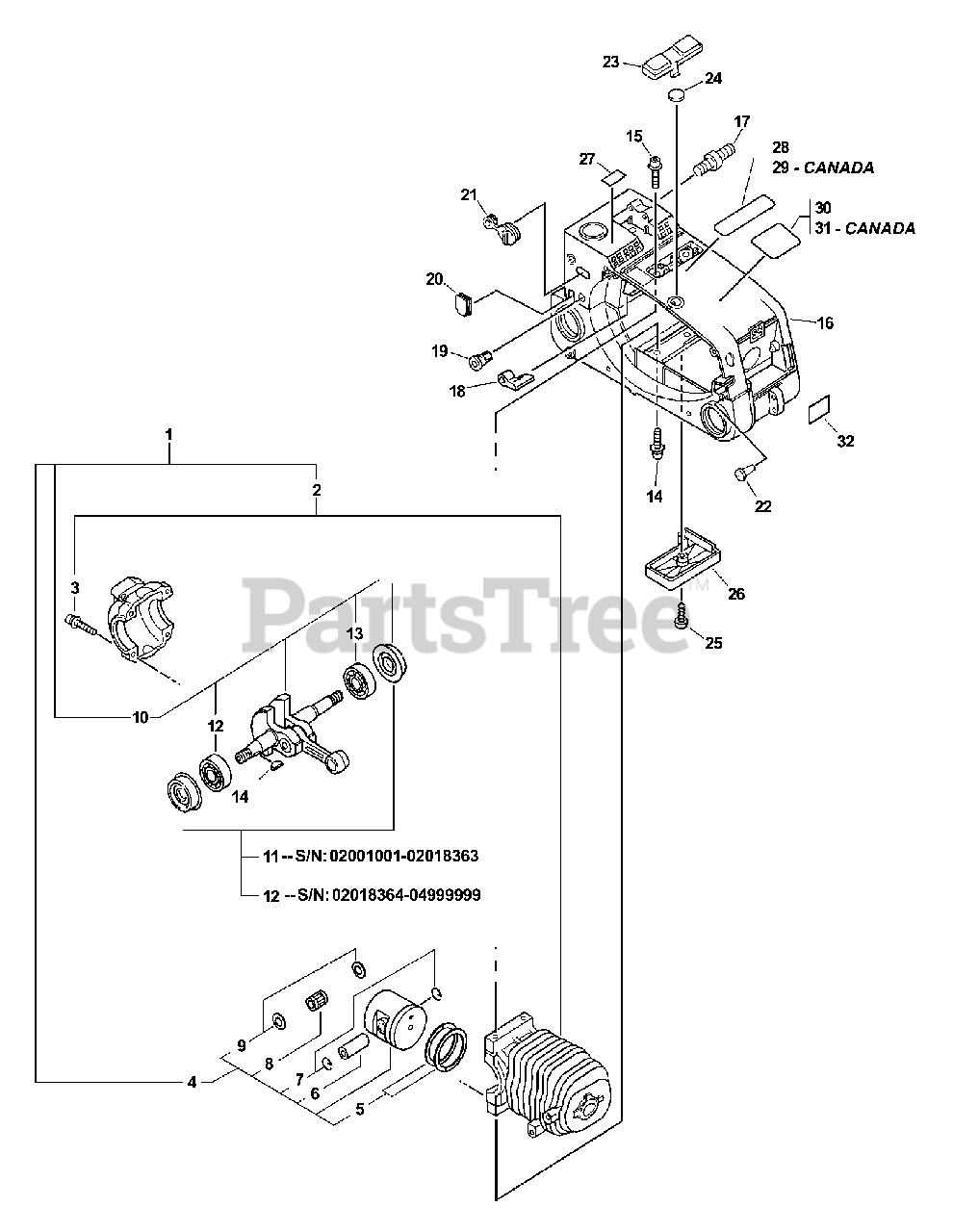

Engine, Short Block -- SB1069, Engine Cover Parts Diagram

  • Title
1

Echo SB1069

SHORT BLOCK -- SB1069

Note: INCLUDES ITEMS 2-12; OPTIONAL ENGINE REPOWER

$221.99

$

Usually ships in 2-4 days

0

2

------------------

CRANKCASE SET

Note: Includes ITEM 3

$

$

Not available

3

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

4

Echo P021002271

PISTON KIT

Note: INCLUDES ITEMS 5-9

$74.99

$

Usually ships in 2-4 days

0

5

Echo A101000060

RING, PISTON

$6.49

$

In Stock, only 1 left!

0

6

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

8

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

9

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

10

------------------

CRANKSHAFT ASSY

Note: Includes ITEMS 11-12

$

$

Not available

11

Echo 10021338330

SEAL, OIL

$5.99

$

In Stock, Qty 12

0

12

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, only 3 left!

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

$2.99

$

In Stock, only 2 left!

0

15

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

16

Echo A190000021

COVER, ENGINE - GRAY
(Superseded to A190000022)

$93.99

$

In Stock, only 1 left!

0

17

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 19

0

$5.99

$

In Stock, only 2 left!

0

19

$2.49

$

Usually ships in 2-4 days

0

$3.49

$

Usually ships in 2-4 days

0

21

$5.99

$

Usually ships in 2-4 days

0

22

Echo 43611413930

VENT, TANK

$6.49

$

Usually ships in 2-4 days

0

23

Echo 10402939230

COVER - GRAY

$9.49

$

In Stock, only 4 left!

0

$1.99

$

Usually ships in 2-4 days

0

25

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

26

Echo 10404439230

COVER, BOTTOM - GRAY

$25.99

$

Usually ships in 2-4 days

0

27

Echo 89016739230

LABEL - PURGE PUMP

$3.99

$

Usually ships in 2-4 days

0

28

Echo 89022839131

LABEL - CAUTION -- SPANISH

$4.49

$

Usually ships in 2-4 days

0

29

Echo 89017639431

LABEL - NOISE

Note: CANADA MODELS

$3.99

$

Usually ships in 2-4 days

0

30

Echo 89019130131

LABEL - KICK BACK

$3.99

$

Usually ships in 2-4 days

0

31

Echo X524000990

LABEL - KICK BACK

Note: CANADA MODELS

$6.49

$

Usually ships in 2-4 days

0

32

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
