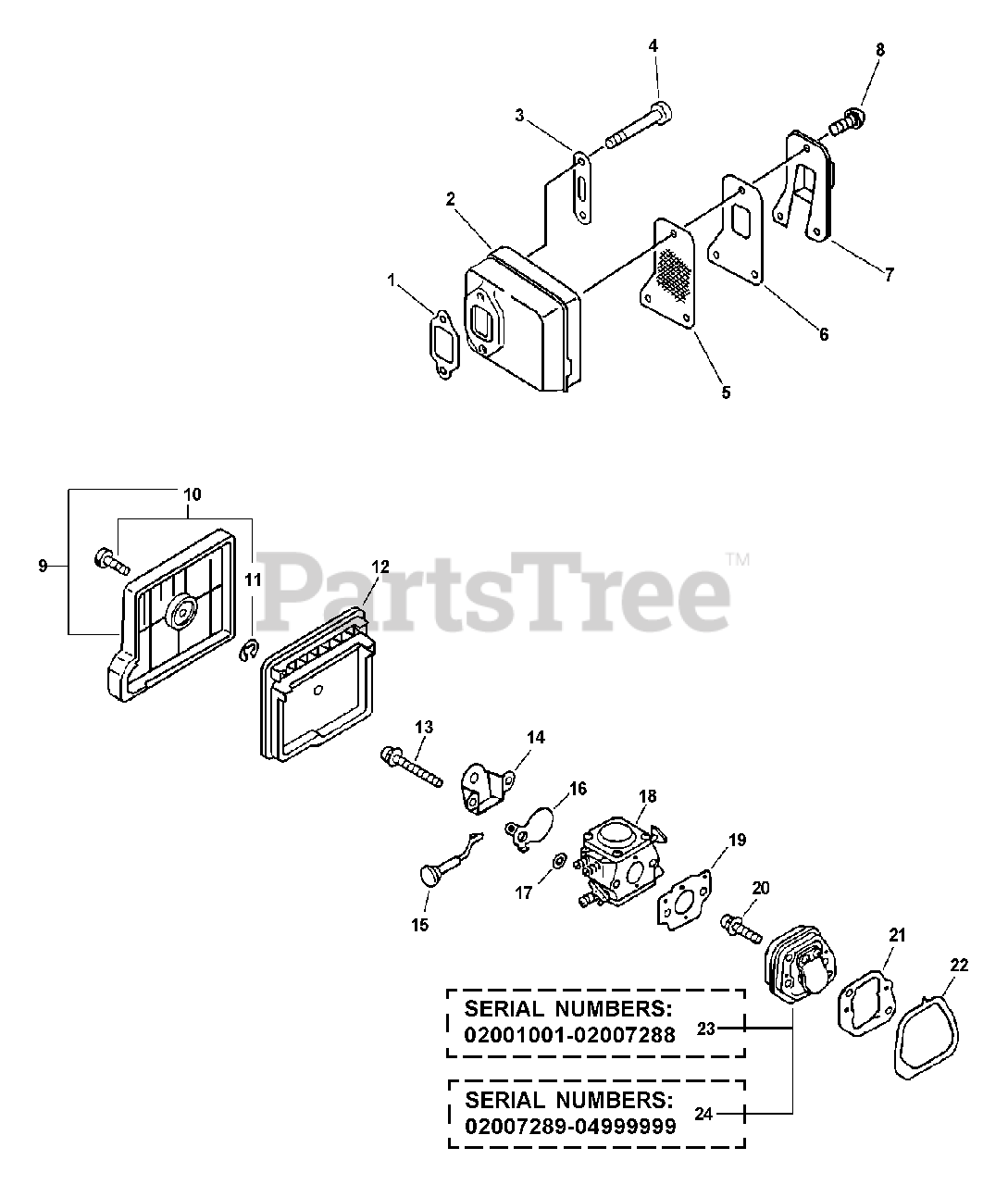

CS-346 - Echo Chainsaw (SN: 02001001 - 02999999) Intake, Exhaust Parts Diagram

Chainsaw

Intake, Exhaust Parts Diagram

  • Title

1

Echo 14551013931

GASKET, EXHAUST

$2.49

$

In Stock, Qty 6

0

2

Echo A300000120

MUFFLER

$91.99

$

Usually ships in 2-4 days

0

3

Echo 14564213930

PLATE

$1.99

$

In Stock, only 2 left!

0

4

Echo 9110705045

SCREW - 5X45

$0.99

$

In Stock, Qty 5

0

5

Echo 14586213931

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

6

Echo V104000140

GASKET, EXHAUST

$2.49

$

Usually ships in 2-4 days

0

7

Echo A303000010

GUIDE, EXHAUST

$3.99

$

Usually ships in 2-4 days

0

8

Echo 9136704012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

9

Echo 13030239136

AIR FILTER COVER ASSY

Note: Includes ITEMS 10-11

$18.99

$

In Stock, Qty 6

0

10

Echo 13040613933

THUMBSCREW

Note: Includes ITEM 11

$4.49

$

In Stock, Qty 10

0

11

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

12

Echo 13031039132

FILTER, AIR

$11.99

$

In Stock, Qty 12

0

13

Echo 90023805045

SCREW - 5X45

$0.99

$

In Stock, Qty 6

0

14

Echo 12901139130

PLATE, PREVENT

$5.49

$

In Stock, only 1 left!

0

15

Echo 17851039230

ROD, CHOKE

$5.99

$

Usually ships in 2-4 days

0

16

Echo 17851539130

SHUTTER, CHOKE

$2.49

$

In Stock, only 2 left!

0

17

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

18

Echo A021000230

CARBURETOR WT-589
(Superseded to A021000231)

$73.99

$

In Stock, only 1 left!

0

19

Echo V103000021

GASKET, INTAKE

$1.49

$

In Stock, Qty 6

0

20

Echo 90025005018

SCREW - 5X18

$0.99

$

In Stock, Qty 9

0

21

Echo V103000120

GASKET, INTAKE

$1.49

$

In Stock, only 2 left!

0

22

Echo 13001239131

SEAL
(Superseded to 13001239132)

$2.99

$

In Stock, Qty 6

0

23

Echo P021000010

INSULATOR KIT

Note: S/N: 02001001-02007288

$20.99

$

In Stock, only 1 left!

0

24

Echo P021004590

INSULATOR KIT

Note: S/N: 02007289-04999999

$

$

Not available
