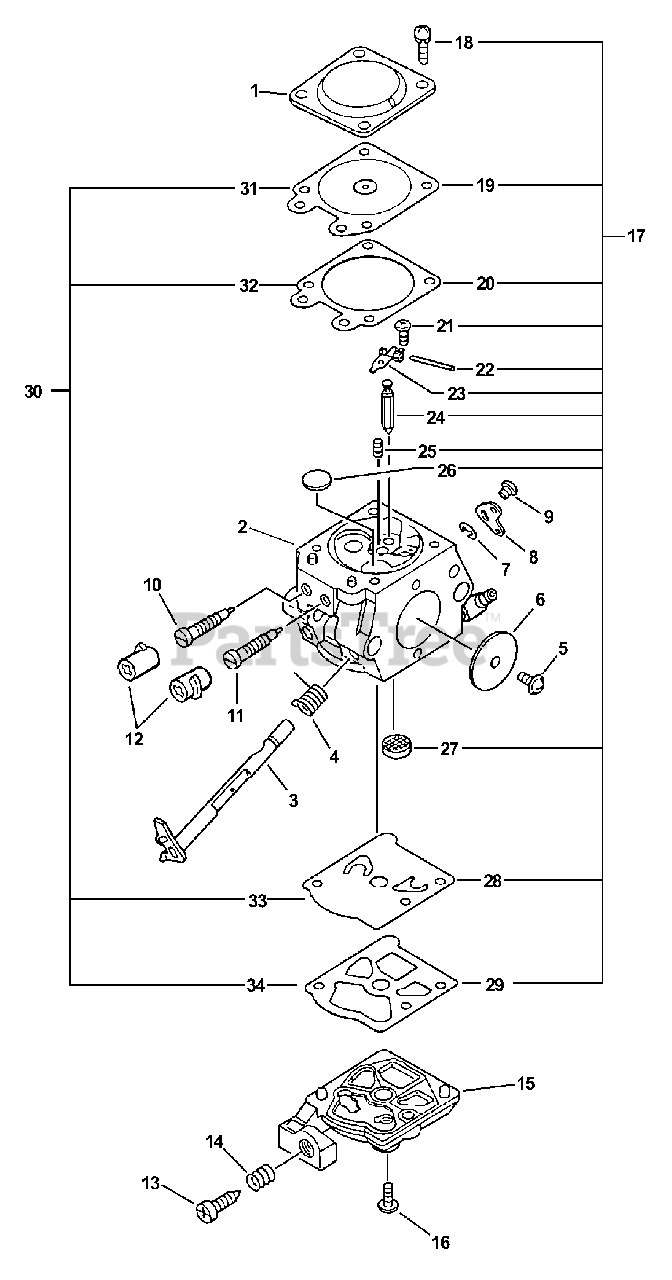

CS-3450 - Echo Chainsaw (Type 1E) Carburetor Parts Diagram

Chainsaw (Type 1E)

Carburetor Parts Diagram

  • Title

Echo 12300139132

CARBURETOR WT-402A
(Superseded to 12300139133)

$72.99

$

In Stock, Qty 5

0

1

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

2

------------------

BODY, CARBURETOR

$

$

Not available

3

Echo 12311739630

SHAFT, THROTTLE

$7.49

$

Usually ships in 2-4 days

0

4

Echo 12311347530

SPRING, THROTTLE RETURN

$4.99

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

6

Echo 12311605230

VALVE, THROTTLE

$1.99

$

In Stock, only 4 left!

0

7

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 3 left!

0

8

Echo 12315039230

LEVER, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

$1.49

$

In Stock, Qty 13

0

10

Echo 12312039230

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

11

Echo 12311839230

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

12

Echo 12315139230

CAP, LIMITER

$1.99

$

In Stock, Qty 20+

0

13

Echo 12313419730

SCREW, IDLE ADJUST

$2.49

$

In Stock, Qty 5

0

14

Echo 12313311130

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

15

Echo 12312409320

COVER, PUMP

$5.49

$

Usually ships in 2-4 days

0

16

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

17

Echo 12310039130

REPAIR KIT

Note: INCLUDES ITEMS 18-29

$16.99

$

Usually ships in 2-4 days

0

18

------------------

SCREW, METERING COVER

$

$

Not available

19

------------------

DIAPHRAGM, METERING

$

$

Not available

20

------------------

GASKET, METERING

$

$

Not available

21

------------------

SCREW, METERING LEVER PIN

$

$

Not available

22

------------------

PIN, METERING LEVER

$

$

Not available

23

------------------

LEVER, METERING

$

$

Not available

24

------------------

VALVE, INLET NEEDLE

$

$

Not available

25

------------------

SPRING, METERING LEVER

$

$

Not available

26

------------------

PLUG, WELCH

$

$

Not available

27

------------------

STRAINER

$

$

Not available

28

------------------

DIAPHRAGM, PUMP

$

$

Not available

29

------------------

GASKET, PUMP

$

$

Not available

30

Echo 12310105960

DIAPHRAGM/GASKET KIT

Note: INCLUDES ITEMS 31-34

$7.49

$

In Stock, Qty 5

0

31

------------------

DIAPHRAGM, METERING

$

$

Not available

32

------------------

GASKET, METERING

$

$

Not available

33

------------------

DIAPHRAGM, PUMP

$

$

Not available

34

------------------

GASKET, PUMP

$

$

Not available
