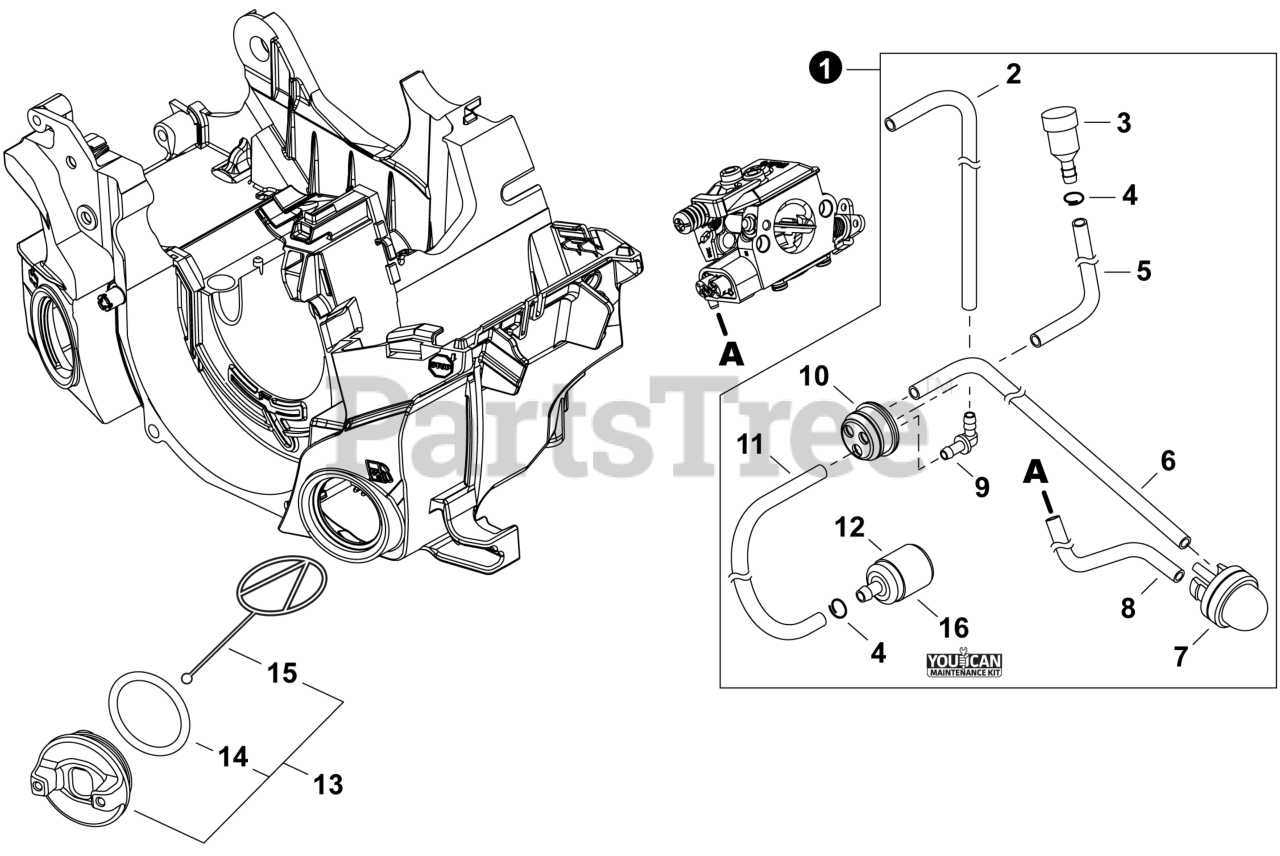

CS-3410 - Echo Chainsaw (SN: C93613001001 - C93613999999) Fuel System Parts Diagram

Chainsaw

Fuel System Parts Diagram

  • Title

1

Echo P021054760

FUEL SYSTEM KIT

Note: Includes items 12-12

$

$

Currently unavailable

2

Echo V471003872

PIPE, FUEL 3x5x85 BLACK

$2.49

$

In Stock, Qty 17

0

3

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

4

Echo V490001240

CLIP 6

$0.99

$

In Stock, Qty 20+

0

5

Echo V471001201

PIPE, FUEL 3x5x70 BLACK

$1.99

$

In Stock, Qty 20+

0

6

Echo V471001241

PIPE, PURGE 2.4x5x140 BLACK

$3.49

$

In Stock, Qty 12

0

7

Echo A035000040

BULB, PURGE

$12.99

$

In Stock, Qty 5

0

8

Echo V471001281

PIPE, FUEL 2.4x5x105 BLACK

$3.99

$

In Stock, Qty 16

0

9

Echo V186000530

CONNECTOR, PIPE

$1.49

$

In Stock, Qty 14

0

10

Echo 13211546730

GROMMET, FUEL 5

$1.99

$

In Stock, Qty 20+

0

11

Echo V471000601

PIPE, FUEL 3x5x120 BLACK

$0.99

$

In Stock, Qty 14

0

12

Echo A369000470

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

13

Echo P100009200

CAP ASSY, FUEL

Note: Includes items 14-15

$9.99

$

In Stock, only 2 left!

0

14

Echo V581000600

O-RING 29

$2.49

$

In Stock, Qty 9

0

15

Echo A365000050

CONNECTOR, CAP L= 60 MM

$2.49

$

In Stock, Qty 20+

0

16

Echo 90200Y

TUNE-UP KIT - YOUCANT

$21.99

$

In Stock, only 2 left!

0
