CS-341 - Echo Chainsaw (SN: C24912001001 - C24912999999) Engine, Short Block -- SB1069, Engine Cover Parts Diagram

Chainsaw

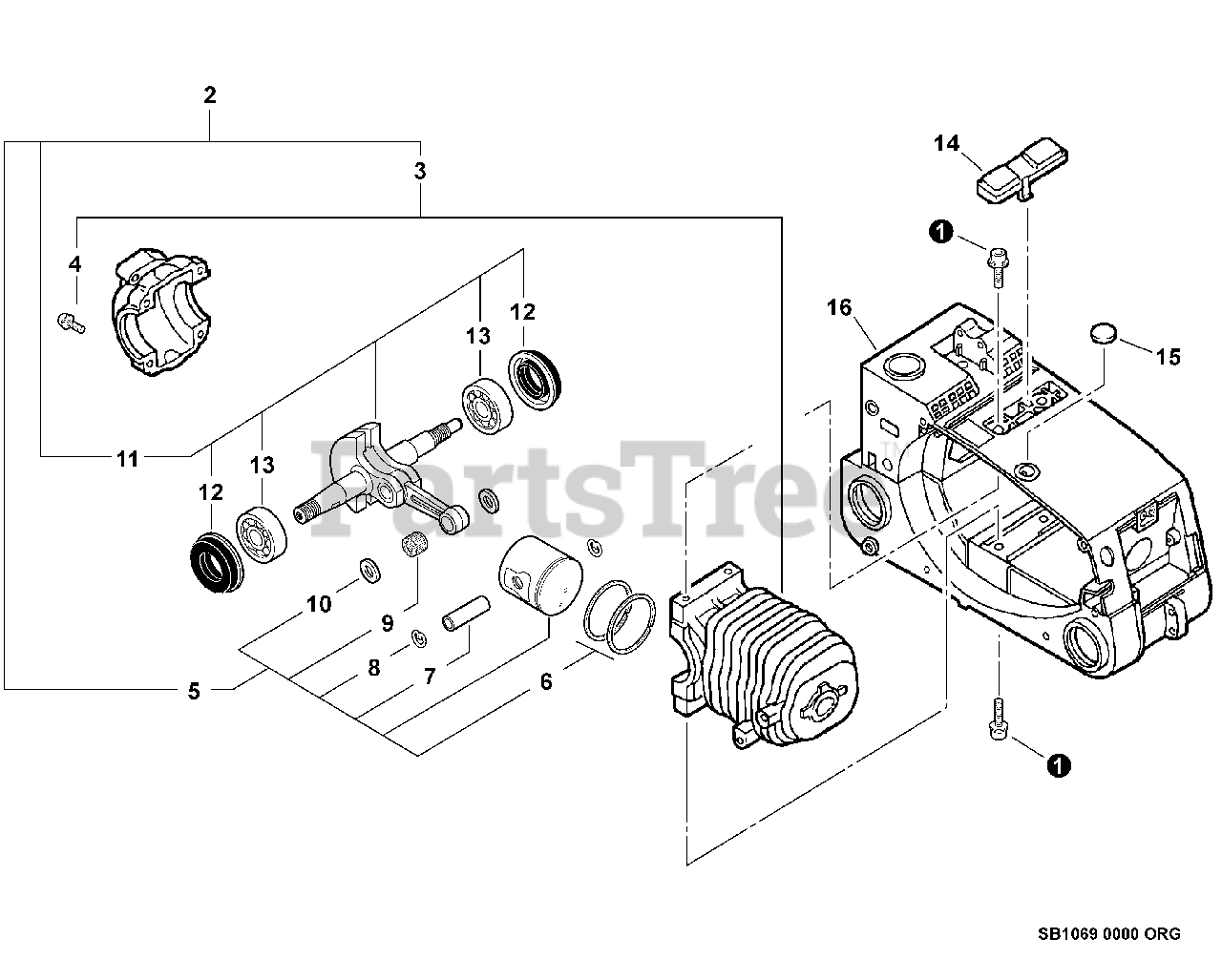

Engine, Short Block -- SB1069, Engine Cover Parts Diagram

  • Title
1

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo SB1069

SHORT BLOCK -- SB1069

Note: Includes ITEMS 3-13

$221.99

$

Usually ships in 2-4 days

0

3

------------------

CRANKCASE SET

Note: Includes ITEM 4

$

$

Not available

4

Echo 90023805025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

5

Echo P021002271

PISTON KIT

Note: Includes ITEMS 5-9

$74.99

$

Usually ships in 2-4 days

0

6

Echo A101000060

RING, PISTON

$6.49

$

In Stock, only 1 left!

0

7

Echo 10001315330

PIN, PISTON

$6.49

$

Usually ships in 2-4 days

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 17501203930

BEARING, NEEDLE

$11.99

$

Usually ships in 2-4 days

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

------------------

CRANKSHAFT ASSY

Note: Includes ITEMS 12-13

$

$

Not available

12

Echo V505000011

SEAL, OIL - 12

$7.99

$

In Stock, only 3 left!

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

14

Echo 10402939130

COVER - ORANGE

$1.49

$

In Stock, only 3 left!

0

$1.99

$

Usually ships in 2-4 days

0

16

Echo A190000640

COVER, ENGINE - ORANGE
(Superseded to A190000641)

$93.99

$

In Stock, only 1 left!

0
