CS-341 - Echo Chainsaw (SN: 04001001 - 04999999) Fuel System, Auto Oiler S/N: 04001001 - 04002000 Parts Diagram

Chainsaw

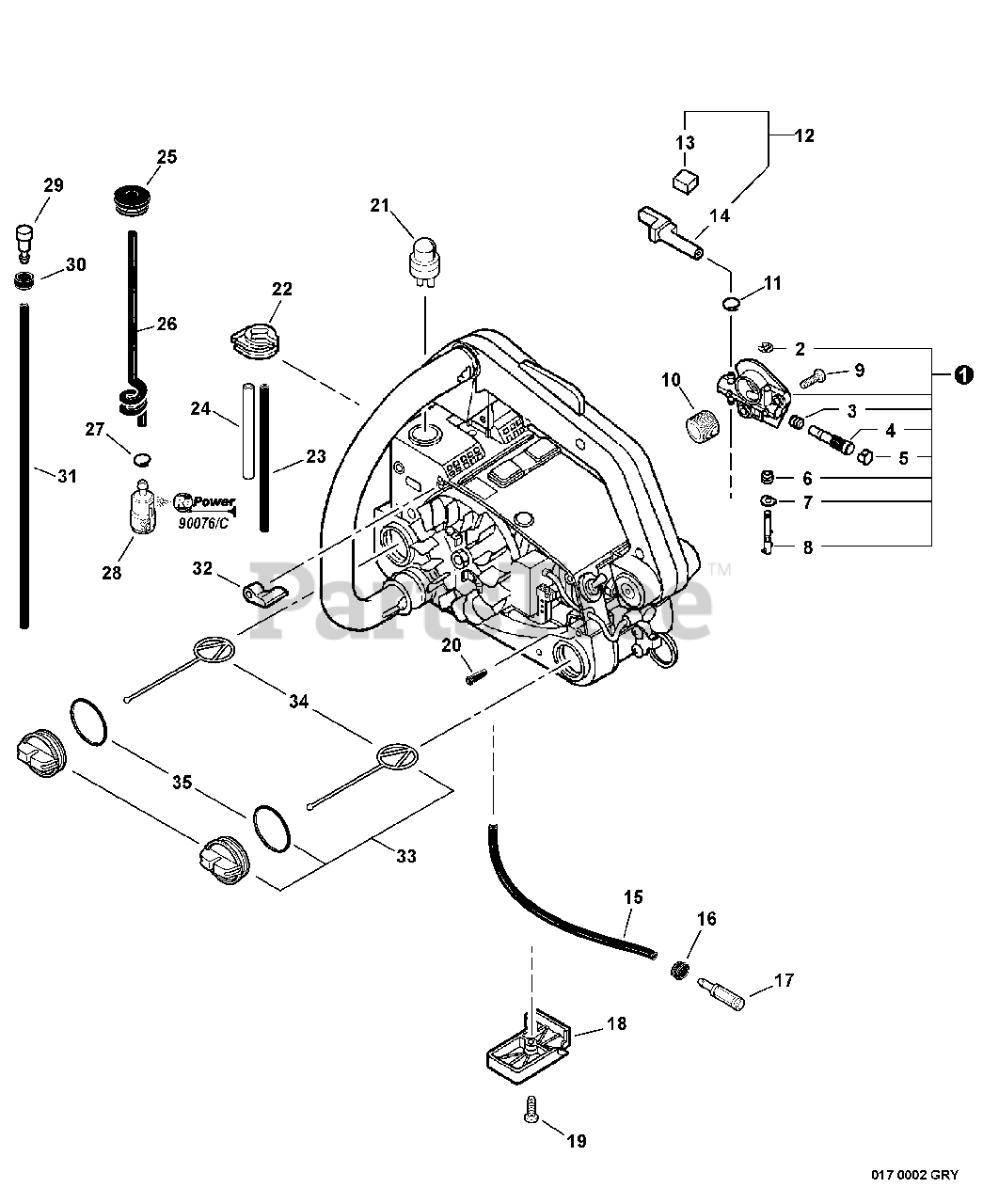

Fuel System, Auto Oiler S/N: 04001001 - 04002000 Parts Diagram

  • Title

1

Echo 43700239130

AUTO-OILER ASSY

Note: Includes ITEMS 2-8

$70.99

$

In Stock, only 1 left!

0

2

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, only 2 left!

0

3

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

4

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

5

Echo 43706237330

CAP, OIL PUMP

$3.99

$

In Stock, only 3 left!

0

6

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

7

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

0

8

Echo 43701639130

NEEDLE, ADJUST

$17.99

$

Usually ships in 2-4 days

0

9

Echo 90023505012

SCREW - 5X12

$0.99

$

In Stock, Qty 11

0

10

Echo V652000021

GEAR - WORM

$14.99

$

In Stock, only 1 left!

0

11

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

12

Echo 43720139131

OIL PIPE KIT
(Superseded to P100002730)

Note: Includes ITEMS 13-14

$12.99

$

In Stock, only 1 left!

0

13

Echo 43724439130

PAD, FOAM

$0.99

$

In Stock, Qty 20+

0

14

Echo 43721139133

PIPE - OIL
(Superseded to 43721139134)

$1.99

$

In Stock, only 1 left!

0

15

Echo V471000110

PIPE - 3X6X115 -- BLACK
(Superseded to V471000111)

Note: RePower BULK OPTION: 90015

$2.49

$

In Stock, Qty 20+

0

16

Echo V137000010

GROMMET

$2.49

$

In Stock, only 3 left!

0

17

Echo 43620502832

FILTER, OIL

$8.99

$

Usually ships in 2-4 days

0

18

Echo 10404439230

COVER, BOTTOM - GRAY

$25.99

$

Usually ships in 2-4 days

0

19

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

20

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, only 1 left!

0

21

Echo 12318139130

PUMP, PURGE

$7.49

$

In Stock, Qty 20+

0

22

Echo 13275839131

BRACKET

$10.99

$

In Stock, only 4 left!

0

23

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

24

Echo 13271639130

PIPE - 2X4X42 -- CLEAR

Note: RePower BULK OPTION: 90018

$1.49

$

In Stock, Qty 11

0

25

Echo 13211539130

GROMMET
(Superseded to 13211539131)

$2.99

$

In Stock, Qty 20+

0

26

Echo 13201239130

PIPE, FUEL - SPIRAL
(Superseded to 13201239131)

$6.49

$

In Stock, Qty 9

0

27

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

28

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: Included In RePower KIT

$5.49

$

In Stock, Qty 20+

0

29

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

30

Echo 13132839130

HOLDER, VENT

$8.49

$

In Stock, only 4 left!

0

31

Echo 13201004920

PIPE - 3X5X150 -- BLACK
(Superseded to 13201004921)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, only 3 left!

0

32

Echo 13033639530

PLUG

$5.99

$

In Stock, only 2 left!

0

33

Echo 43600139232

CAP ASSY - ORANGE
(Superseded to P021044580)

Note: Includes ITEMS 35-36

$2.99

$

In Stock, Qty 20+

0

34

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

35

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

36

Echo 90076

RePower TUNE-UP KIT
(Superseded to 90149)

$22.99

$

Usually ships in 2-4 days

0

36

Echo 90076/C

RePower TUNE-UP KIT
(Superseded to 90149)

Note: CANADA MODELS

$22.99

$

Usually ships in 2-4 days

0
