Echo CS-341 - Echo Chainsaw (SN: 04001001 - 04999999) Chain Brake S/N: 04001001 - 04002000 Parts Lookup with Diagrams

1

Echo C032000051

CHAIN BRAKE ASSY

(Superseded to C032000052) 

Note: Includes ITEM 2-24

$82.99

$

In Stock, only 1 left!

2

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 13

3

Echo 43331039530

COVER, BRAKE - GRAY

$5.49

$

Usually ships in 2-4 days

4

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, Qty 6

5

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

6

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

7

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

8

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 3 left!

9

Echo 90034225012

PIN - SPRING -- 2.5X12

$1.49

$

In Stock, only 3 left!

10

Echo 43312339530

BAND, BRAKE

$7.99

$

In Stock, only 2 left!

11

Echo 43331232630

SEAL

$1.49

$

In Stock, Qty 7

12

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 3 left!

13

Echo 90033040238

ROLLER - 4X23.8

$0.99

$

In Stock, only 4 left!

14

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 13

15

Echo 43311439130

SPRING, RETURN

$2.99

$

In Stock, only 1 left!

16

Echo 43314739131

LEVER, BRAKE - ORANGE

$16.99

$

In Stock, Qty 6

17

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

18

Echo 43317139630

WEIGHT, BRAKE

$15.99

$

Usually ships in 2-4 days

19

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

20

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

21

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 16

22

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

23

Echo C300000041

GUARD, SPROCKET - GRAY

(Superseded to C300000042) 

Note: Includes ITEM 24

$28.99

$

In Stock, Qty 6

24

Echo V341000000

DEFLECTOR, HEAT

$0.99

$

In Stock, Qty 18

25

Echo V203000041

SCREW, TENSIONER

$5.99

$

In Stock, Qty 12

26

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

27

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

28

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

29

Echo V355000140

BRACKET, TENSIONER

$0.99

$

In Stock, Qty 20+

30

Echo 90025304012

SCREW - 4X12 -- TAPPING

$1.49

$

In Stock, Qty 13

31

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

32

Echo V224000031

STUD, GUIDE BAR

$1.99

$

In Stock, Qty 20+

33

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 20+

34

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

35

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

36

Echo 43301239131

PLATE, GUIDE - OUTER

$7.99

$

In Stock, Qty 10

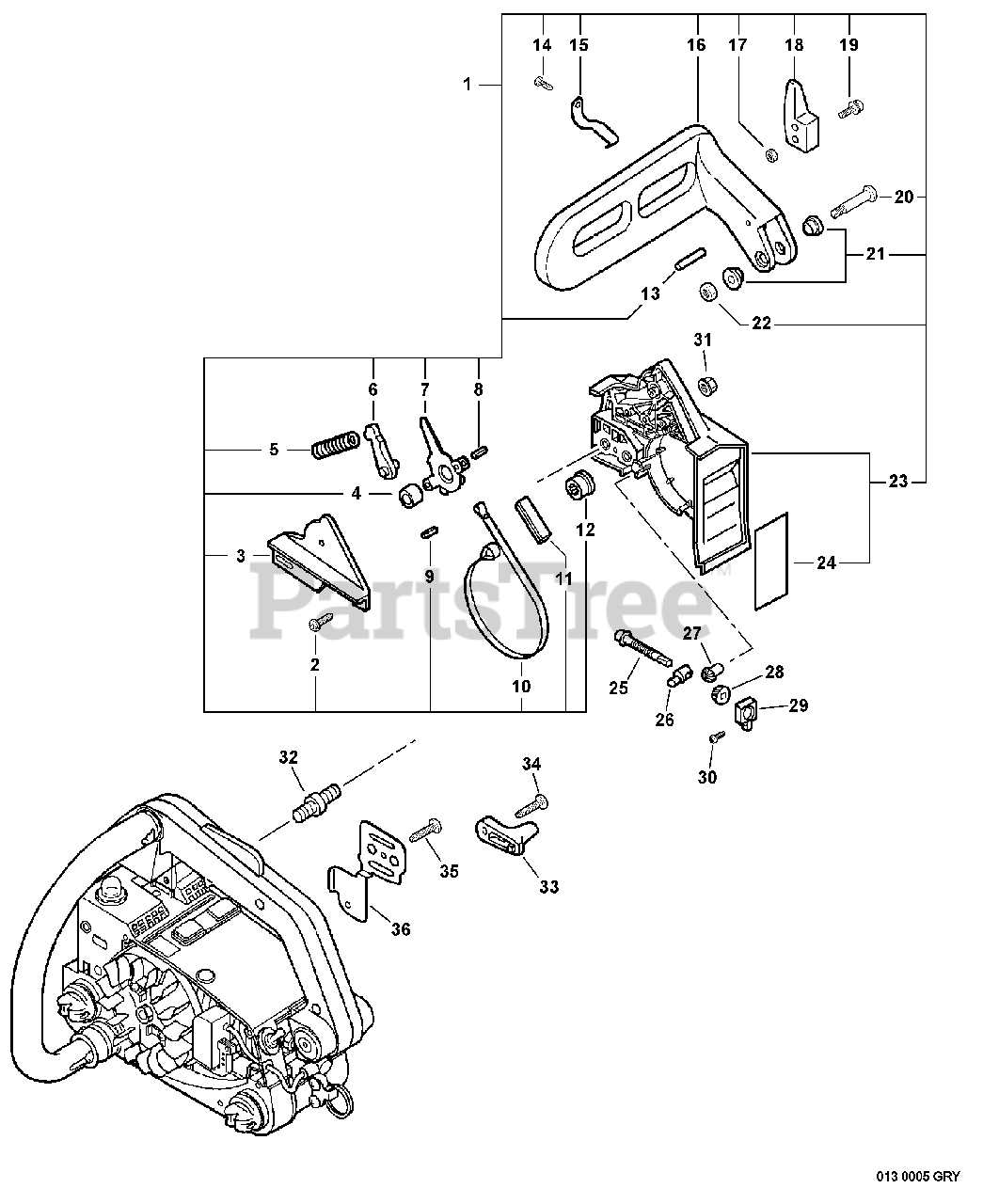

CS-341 - Echo Chainsaw (SN: 04001001 - 04999999) Chain Brake S/N: 04001001 - 04002000 Parts Diagram

Chain Brake S/N: 04001001 - 04002000 Parts Diagram

Echo C032000051

Echo 90025304012

Echo 43331039530

Echo 43311635430

Echo 43312235430

Echo 43320935430

Echo 43320835431

Echo 90033040088

Echo 90034225012

Echo 43312339530

Echo 43331232630

Echo 43314235430

Echo 90033040238

Echo 90025304012

Echo 43311439130

Echo 43314739131

Echo 90050000004

Echo 43317139630

Echo 90023804022

Echo 9131805032

Echo 43316739130

Echo 90056000005

Echo C300000041

Echo V341000000

Echo V203000041

Echo C309000030

Echo V651000001

Echo V651000011

Echo V355000140

Echo 90025304012

Echo 43301903933

Echo V224000031

Echo 43302635430

Echo 90025305020

Echo 90025304010

Echo 43301239131
