CS-3400 - Echo Chainsaw (Type 1E) Ignition, Starter Assembly Parts Diagram

Chainsaw (Type 1E)

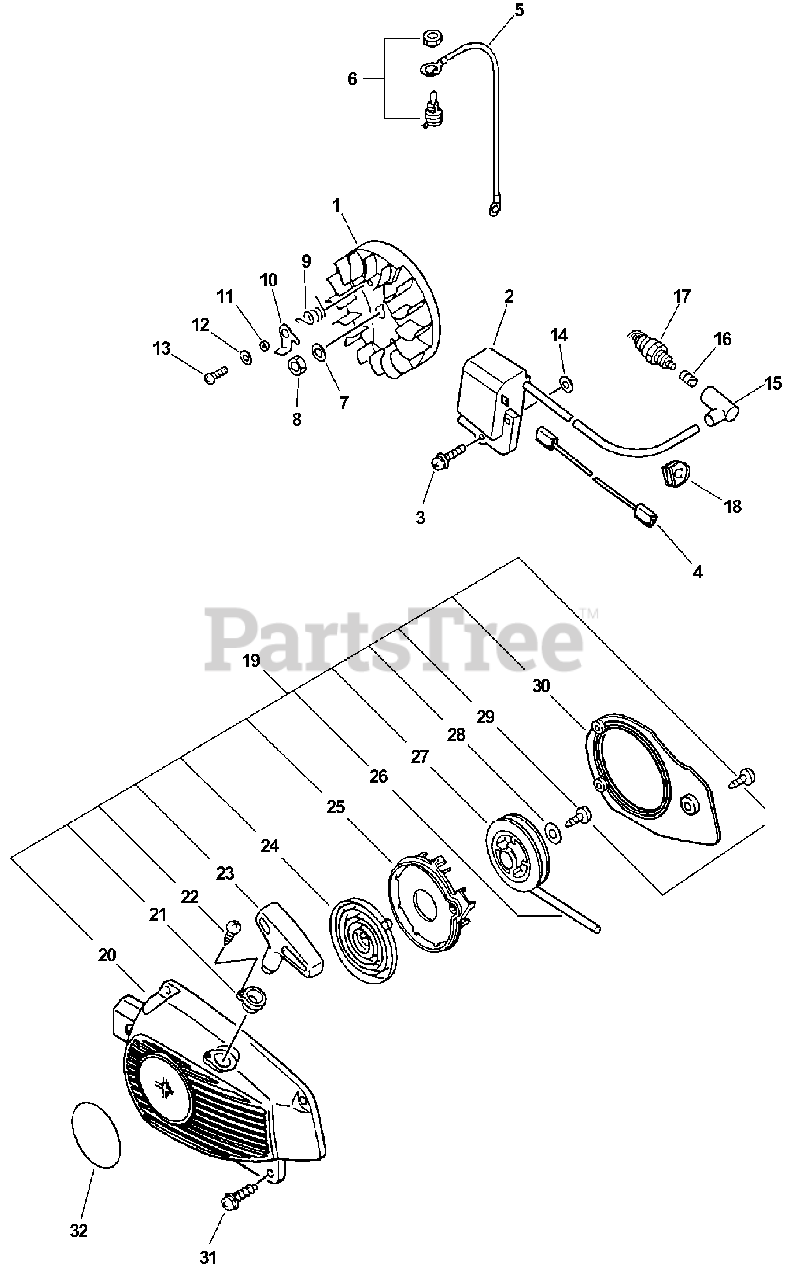

Ignition, Starter Assembly Parts Diagram

  • Title

1

Echo 15680035630

FLYWHEEL

Note: S/N 001001-550497, CANADA - SN 001001-002488

$123.99

$

Usually ships in 2-4 days

0

2

Echo 15662639130

COIL, IGNITION

Note: S/N 001001-550497, CANADA - SN 001001-002488

$86.99

$

In Stock, only 1 left!

0

3

Echo 90023805020

SCREW - 5X20

Note: S/N 001001-550497, CANADA - SN 001001-002488

$0.99

$

In Stock, only 3 left!

0

1

Echo 15680039233

FLYWHEEL

Note: S/N 550498 & UP, CANADA - SN 002489 & UP

$61.99

$

Usually ships in 2-4 days

0

2

Echo A411000150

COIL, IGNITION

Note: S/N 550498 & UP, CANADA - SN 002489 & UP

$75.99

$

In Stock, only 3 left!

0

3

Echo 90023805022

SCREW - 5X22

Note: S/N 550498 & UP, CANADA - SN 002489 & UP

$0.99

$

In Stock, Qty 10

0

4

Echo 16201039431

LEAD - IGNITION

Note: S/N 550498 & UP, CANADA - SN 002489 & UP

$2.99

$

In Stock, Qty 5

0

5

Echo 16201039131

LEAD - GROUND

$5.49

$

In Stock, Qty 11

0

6

Echo 16340019830

IGNITION SWITCH KIT

$9.99

$

In Stock, only 3 left!

0

7

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

8

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

9

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0

10

Echo A514000000

PAWL, STARTER
(Superseded to A514000001)

$3.49

$

In Stock, Qty 15

0

11

Echo 17724704630

SPACER

$1.99

$

In Stock, Qty 9

0

12

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

13

Echo 90021605012

SCREW - 5X12

$0.99

$

Usually ships in 2-4 days

0

14

Echo 15011716430

SPACER

$2.99

$

In Stock, only 2 left!

0

15

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

16

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

17

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

17

Echo 15901010230

SPARK PLUG -- BPMR-7A

$3.99

$

In Stock, Qty 20+

0

18

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 5

0

19

Echo 17720039631

STARTER ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 20-30

$

$

Not available

20

Echo 17723239532

CASE, STARTER
(Superseded to 17723239630)

$29.99

$

In Stock, Qty 7

0

21

Echo 17722739131

GUIDE, ROPE

$3.99

$

In Stock, only 1 left!

0

22

Echo 90029603014

SCREW - 3X14

$0.99

$

In Stock, only 3 left!

0

23

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$8.49

$

In Stock, Qty 20+

0

24

Echo 17722039631

REWIND SPRING ASSY
(Superseded to P021045370)

$15.99

$

In Stock, only 1 left!

0

25

Echo 17722139630

PLATE, STARTER

$2.99

$

In Stock, only 1 left!

0

26

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 11

0

27

Echo 17721535632

REEL, ROPE

$10.99

$

In Stock, only 4 left!

0

28

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

29

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 18

0

31

Echo 90025604016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

32

Echo 89011849330

LABEL - ECHO

$6.49

$

In Stock, only 4 left!

0
