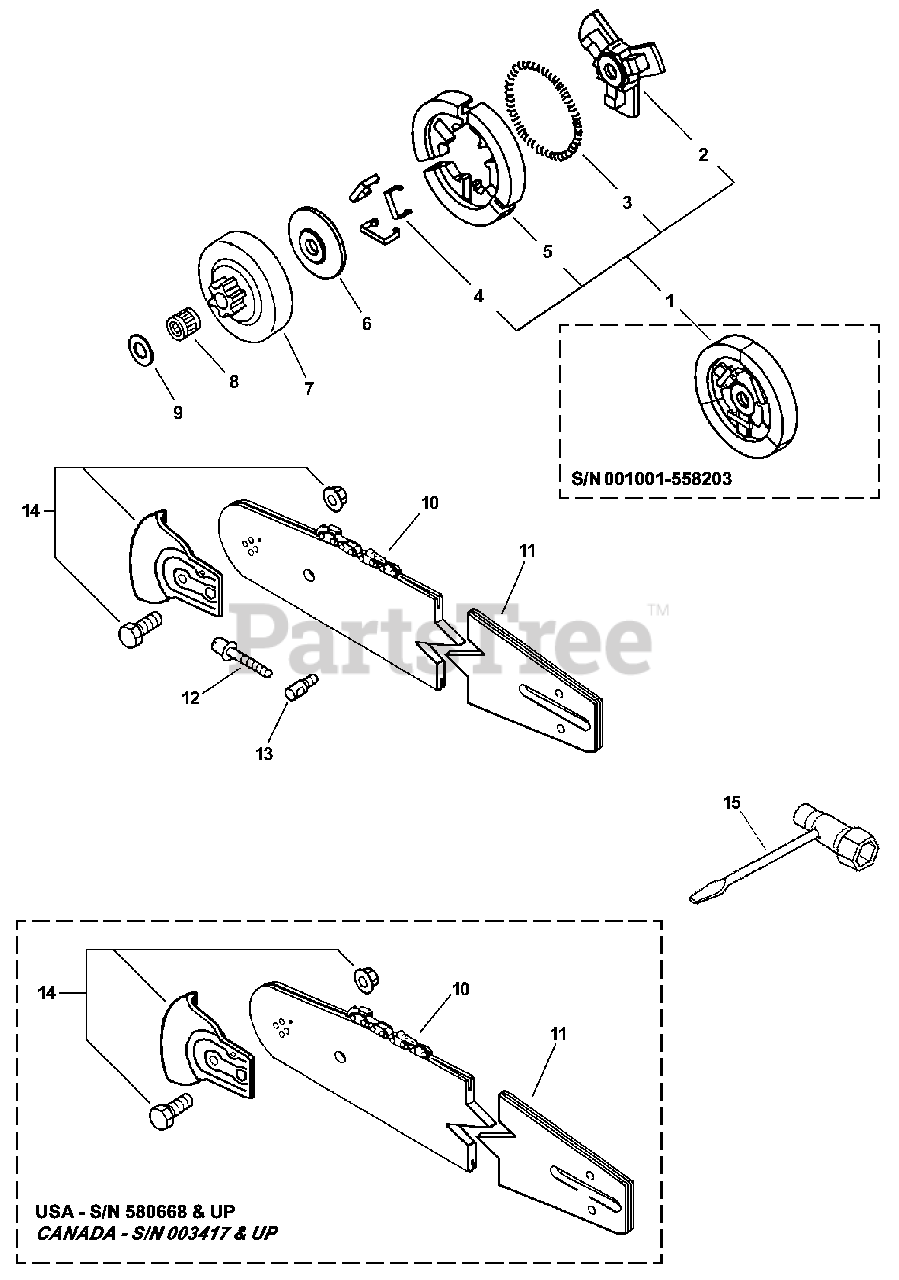

CS-3400 - Echo Chainsaw (Type 1E) Clutch, Guide Bar, Tools Parts Diagram

Chainsaw (Type 1E)

Clutch, Guide Bar, Tools Parts Diagram

  • Title

1

Echo P021000260

CLUTCH ASSY
(Superseded to P021005900)

Note: S/N 001001-558203

$40.99

$

In Stock, only 3 left!

0

1

Echo A056000010

CLUTCH ASSY

Note: INCLUDES ITEMS 2-5; S/N 558204 & UP

$54.99

$

In Stock, Qty 5

0

2

Echo A552000000

HUB, CLUTCH

Note: S/N 558204 & UP

$14.99

$

Usually ships in 2-4 days

0

3

Echo 17501839430

SPRING, CLUTCH

Note: S/N 558204 & UP

$3.49

$

In Stock, only 1 left!

0

4

Echo 17502259530

CLIP, SPRING

Note: S/N 558204 & UP

$3.49

$

In Stock, only 3 left!

0

5

Echo A555000000

SHOE, CLUTCH
(Superseded to P021000270)

Note: S/N 558204-593341

$34.99

$

In Stock, only 1 left!

0

5

Echo P021000270

CLUTCH SHOE SET

Note: S/N 593342 & UP

$34.99

$

In Stock, only 1 left!

0

6

Echo 17501939430

PLATE, CLUTCH

$8.49

$

In Stock, Qty 7

0

7

Echo 17500539133

DRUM, CLUTCH

$22.99

$

In Stock, only 4 left!

0

8

Echo 17501235630

BEARING, NEEDLE

$13.99

$

In Stock, Qty 20+

0

9

Echo 17501439131

WASHER

$2.49

$

In Stock, only 1 left!

0

10

Echo 91VG45CQ

SAW CHAIN - 12" (30cm)
(Superseded to 91PX45CQ)

Note: GAUGE: .050" / PITCH: .375"

$20.99

$

In Stock, Qty 6

0

10

Echo 91VG52CQ

SAW CHAIN - 14" (35cm)
(Superseded to 91PX52CQ)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

Usually ships in 2-4 days

0

10

Echo 91VG57CQ

SAW CHAIN - 16" (40cm)

Note: GAUGE: .050" / PITCH: .375"

$23.99

$

In Stock, Qty 10

0

11

Echo 12A0CD3745

GUIDE BAR - 12" (30cm)
(Superseded to 12A0CD3745C)

Note: S/N 001001-580667, CANADA - S/N 001001-003470GAUGE: .050"

$29.99

$

In Stock, Qty 7

0

11

Echo 14A0CD3752

GUIDE BAR - 14" (35cm)
(Superseded to 14A0CD3752C)

Note: S/N 001001-580667, CANADA - S/N 001001-003470GAUGE: .050"

$42.99

$

In Stock, only 1 left!

0

11

Echo 16A0CD3757

GUIDE BAR - 16" (40cm)

Note: S/N 001001-580667, CANADA - S/N 001001-003470

$46.99

$

In Stock, Qty 10

0

12

Echo 43301639131

SCREW, TENSIONER

Note: S/N 001001-580667, CANADA - S/N 001001-003470

$4.49

$

In Stock, Qty 20+

0

13

Echo 43301403931

TENSIONER, CHAIN

Note: S/N 001001-580667, CANADA - S/N 001001-003470

$4.99

$

In Stock, Qty 20+

0

11

Echo 12A0ZD3745

GUIDE BAR - 12" (30cm) Intenz

Note: S/N 580668 & UP,CANADA - 003471 & UP

$

$

Not available

11

Echo 14A0ZD3752

GUIDE BAR - 14" (35cm) Intenz
(Superseded to 14A0ZD3752C)

Note: S/N 580668 & UP,CANADA - 003471 & UP

$38.99

$

In Stock, only 1 left!

0

11

Echo 16A0ZD3757

GUIDE BAR - 16" (40cm) Intenz
(Superseded to 16A0ZD3757C)

Note: S/N 580668 & UP,CANADA - 003471 & UP

$46.99

$

In Stock, only 1 left!

0

14

Echo 2894901

KICK GUARD KIT

$5.49

$

Usually ships in 2-4 days

0

15

Echo 89541039131

T-WRENCH - 10X19mm
(Superseded to 89541039132)

$3.49

$

In Stock, Qty 20+

0
