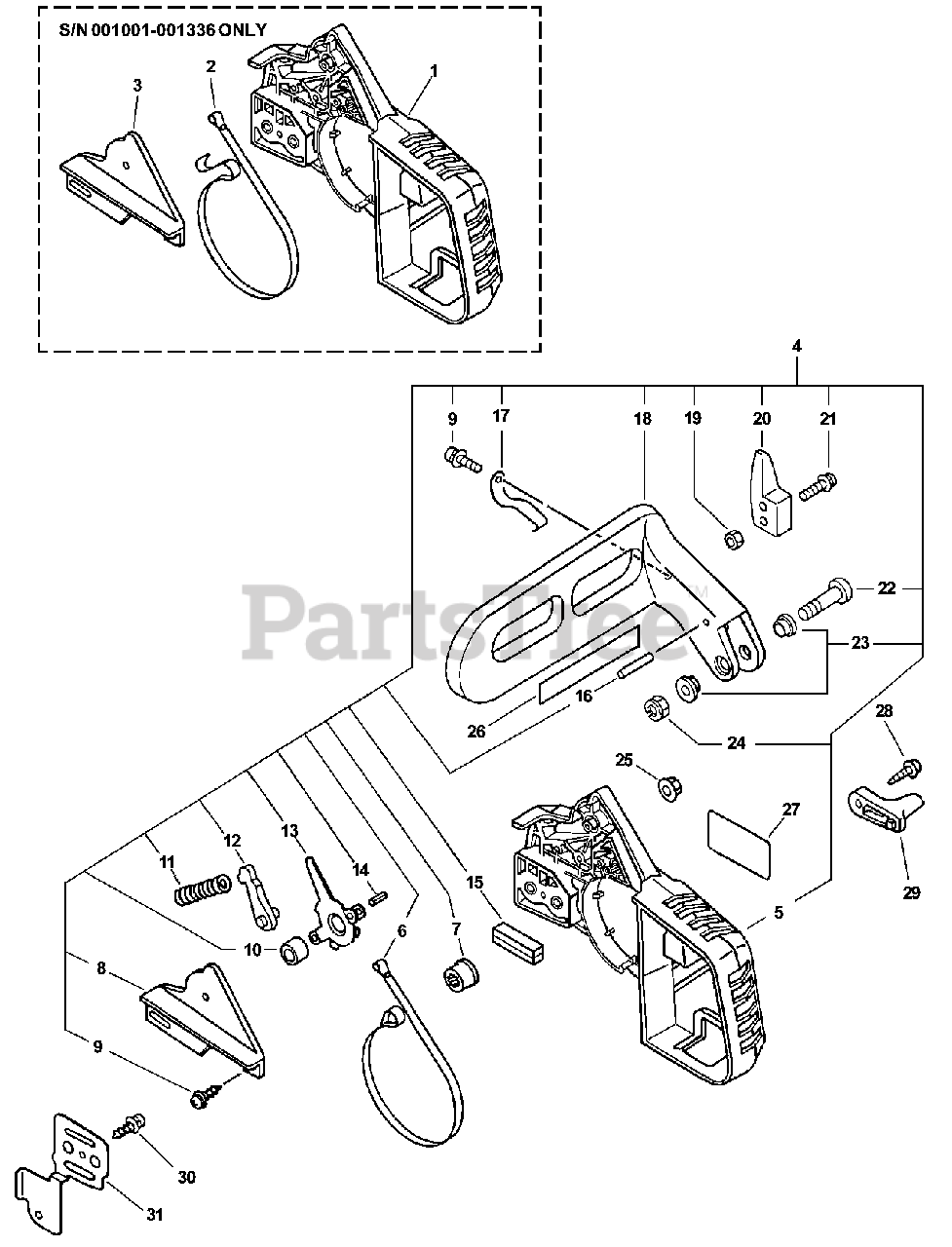

CS-3400 - Echo Chainsaw (Type 1) Chain Brake Assembly Parts Diagram

Chainsaw (Type 1)

Chain Brake Assembly Parts Diagram

  • Title
1

Echo 43300539233

GUARD, SPROCKET

$29.99

$

In Stock, only 1 left!

0

2

Echo 43312339130

BAND, BRAKE

$7.99

$

Usually ships in 2-4 days

0

3

Echo 43331039230

COVER, BRAKE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 43310039230

CHAIN BRAKE ASSY
(Superseded to 43310039231)

Note: INCLUDES ITEMS 5-24: S/N 001377 & UP

$

$

Not available

5

Echo 43300539530

GUARD, SPROCKET

$27.99

$

In Stock, only 1 left!

0

6

Echo 43312339530

BAND, BRAKE

$7.99

$

Usually ships in 2-4 days

0

7

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 1 left!

0

8

Echo 43331039530

COVER, BRAKE - GRAY

$5.49

$

Usually ships in 2-4 days

0

9

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

10

Echo 43311635430

SPACER - 8

$5.49

$

In Stock, only 2 left!

0

11

Echo 43312235430

SPRING, BRAKE

$3.49

$

Usually ships in 2-4 days

0

12

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

13

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

14

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 2 left!

0

$1.49

$

In Stock, Qty 7

0

16

Echo 90033040238

ROLLER - 4X23.8

$0.99

$

In Stock, only 4 left!

0

17

Echo 43311439130

SPRING, RETURN

$2.99

$

In Stock, only 1 left!

0

18

Echo 43311160531

LEVER, BRAKE
(Superseded to P050007300)

$16.99

$

Usually ships in 2-4 days

0

19

$0.99

$

In Stock, Qty 20+

0

20

Echo 43317139630

WEIGHT, BRAKE

$15.99

$

Usually ships in 2-4 days

0

21

Echo 90023804020

SCREW - 4X20

$0.99

$

In Stock, Qty 6

0

22

Echo 90020905030

SCREW - 5X30

$0.99

$

In Stock, only 1 left!

0

23

$2.99

$

In Stock, Qty 10

0

24

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

25

Echo 43301903933

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 20+

0

26

Echo 89019239532

LABEL - BAR & CHAIN -- US

$2.99

$

Usually ships in 2-4 days

0

26

Echo 89035439131

LABEL - BAR & CHAIN -- CANADA
(Superseded to Discontinued)

$

$

Not available

27

Echo 89015139430

LABEL - MODEL
(Superseded to 89015139630)

$

$

Not available

28

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

29

Echo 43302635430

CATCHER, CHAIN

$1.99

$

In Stock, Qty 18

0

30

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

31

Echo 43301239131

PLATE, GUIDE - OUTER

$7.99

$

In Stock, Qty 9

0
