CS 3310 (24A-424M710) - Cub Cadet Chipper/Shredder (2016) Chipper Chute Parts Diagram

Chipper/Shredder

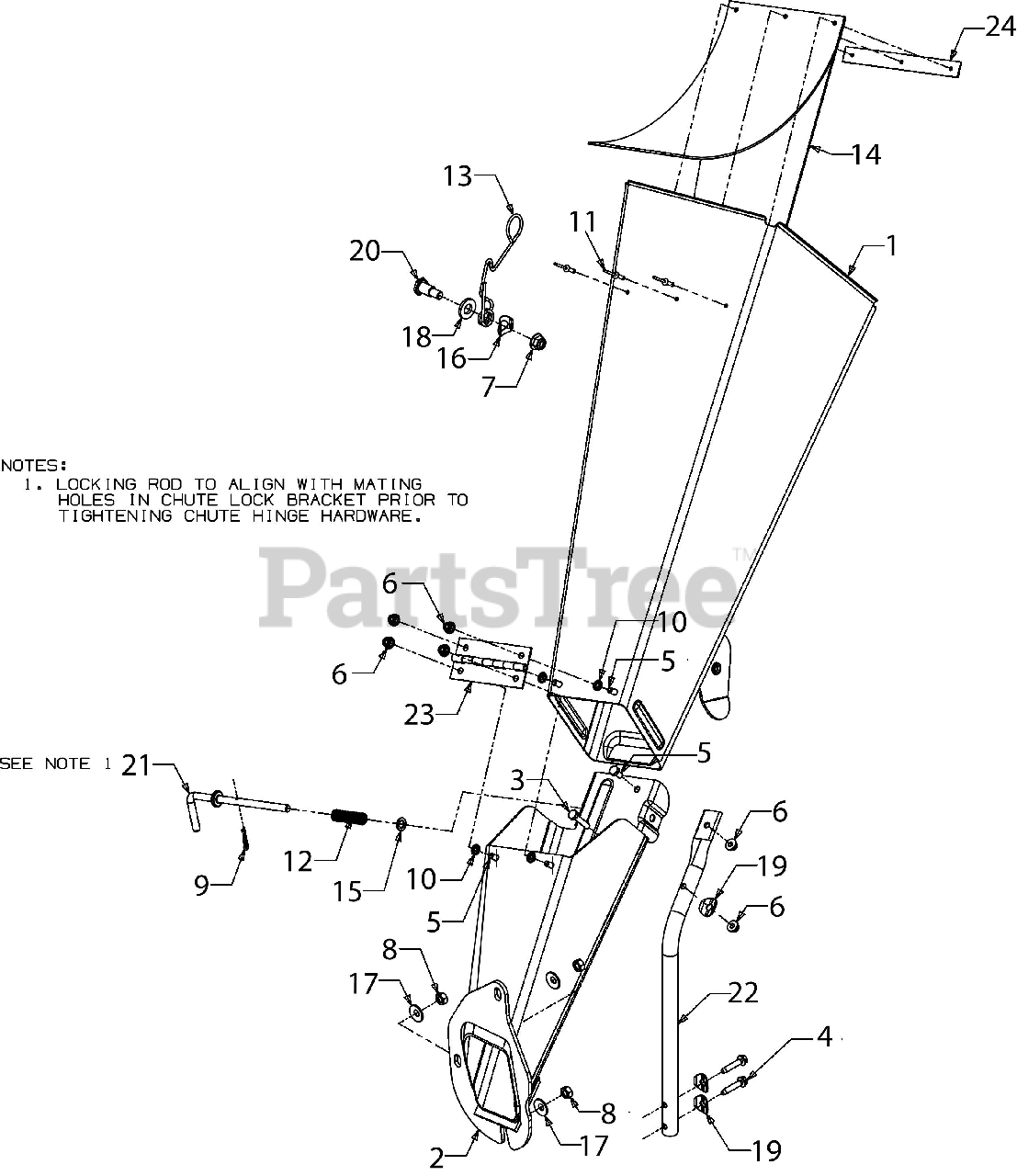

Chipper Chute Parts Diagram

  • Title
1

Cub Cadet 681-04006-4021

CHUTE ASSEMBLY (UPPER)
(Superseded to 981-04006-4021)

$216.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 681-04117-4021

LOWER CHIPPER CHUTE

$157.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0106

HEX SCREW 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

4

Cub Cadet 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

5

Cub Cadet 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, Qty 11

0

6

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0233

RETAINER-BOLT .25ID x .50OD

$4.49

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 932-0306A

COMPRESSION SPRING

$8.49

$

In Stock, only 4 left!

0

13

Cub Cadet 932-04167

TORSION SPRING

$10.99

$

In Stock, Qty 10

0

14

Cub Cadet 735-0249A

CHUTE FLAP

$24.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 936-0140

FLAT WASHER
(Superseded to 736-0140)

$

$

Not available

16

Cub Cadet 736-0182

SPRING WASHER .50 x 1.0 x .022

$4.49

$

In Stock, Qty 7

0

17

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 936-0326

FLAT WASHER .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

19

Cub Cadet 936-0451

SADDLE WASHER
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

20

Cub Cadet 738-0430

SHOULDER SCREW .500 DIA x .685

$11.99

$

In Stock, only 2 left!

0

21

$14.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 749-1004-4021

CHUTE SUPPORT

$

$

Currently unavailable

23

Cub Cadet 781-04032

CHIPPER CHUTE HINGE
(Superseded to 981-04032)

$12.99

$

In Stock, only 1 left!

0

24

Cub Cadet 781-0633

FLAP STRIP

$10.99

$

Usually ships in 3-6 days

0
